DP301 LLC RTC HD 3 PHASE Digital water controller with REAL TIME TIMER with DOL starter with V A meter with HV LV OL DRY PROTECTION with cyclic TIMER with SPP and Auto switch

16 on off per day, day off facility, current based dry run protection, cyclic timer

 3540

MRP 10500
You save 6960 (66.29%)


Type: Heavy Duty series 2 years warranty

Sub Type: Water Controller 3 Phase

Weight: 1.35 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.


100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 2 Year Manufacturer.

Warranty Service : Repair or Replacement.



Package Contain :

1 Water level controller with timer

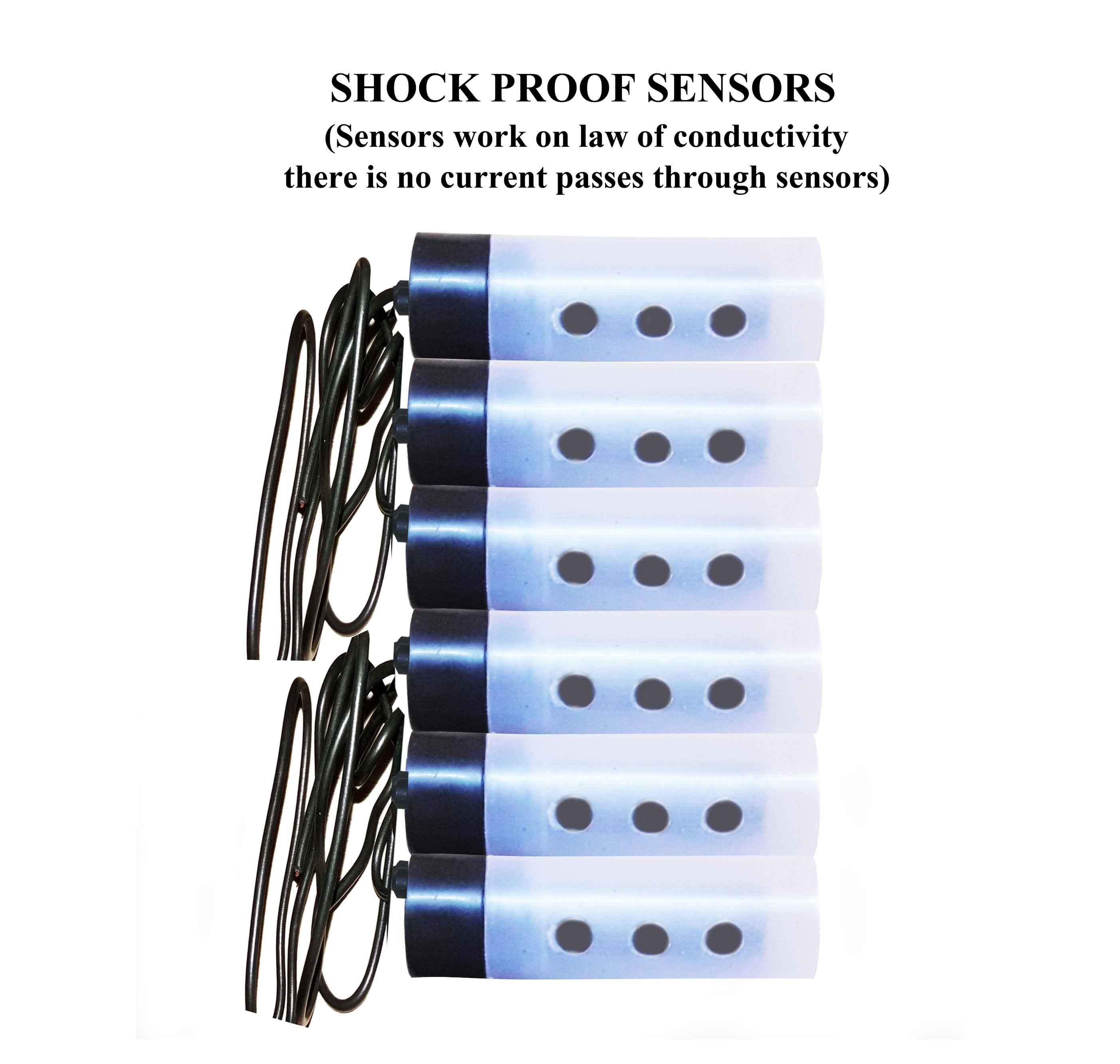

6 S.S sensors with 1.5 meter wire

1 user manual

1 Warranty card of 2 years warranty

4 Screw and Hole plugs

1 Drill template



Function :

DP301+LLC+RTC is the combination of a digital water level controller and motor control panel (motor starter) and real time clock timer

This model is suitable for motor up to 10 HP

In this water level controller you can adjust the water controlling function based on real time.

Water level function works based on real time clock ( only on what time you have set as ON time)

[for example if you have set on time as 6 o'clock and off time as 8 o'clock then motor start at 6 o'clock (if uper tank empty and there is water in sump) and stop the motor when tank gets full.

Simply water level controller function works between 6 to 8 o'clock (on time)]



Timing mode :

RTC timer (Real time clock timer)

This time device starts and stops connected motor as per preset time (for example if you have set 6 A.M. ON time and 7 A.M OFF time then everyday unit give power on 6 A.M and cut power on 7 A.M)

16 ON and OFF time per day setable.

Day off facility, User can skip any number of days in week ( for example If user do not want to start on monday and friday or any other day then user can skip that day. Timer will not start on that day and only start on other days)

accurate time setting as RTC provided

Free from data corruption. battery backup provided.

Display of real time clock for on/off.

Battery-backup for 500 hrs. in case of power failure. No need to re-program (reset the time) after resumption of power supply. The unit will work as per pre programmed only.

Be free from data lost problem, As all programmed data will be stored in memory



Cyclic timer :

Cyclic timer provided with bypass facility (adjusatble from 0 second to 999 min)

Cyclic timer available in auto mode with water controller and in bypass mode without water level controller

In auto mode cyclic timer - water level controller work on cyclic on time mode as per preset time



Delay timer :

Delay timer provided with bypass facility (adjusatble from 0 to 999 min)

On delay timer and off delay time provided (adjusatble from 0  to 999 min)



Auto switch timer :

Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)

Auto switch timer adjusatble from 0  to 999 second.



Product Descriptions :

Micro controller based Digital Water Level Controller.

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Two seperate display for volt and amp.



Over load Protection,

Adjustable overload from 0 to 30 A



Current based dry run protection,

Adjustable dry run current from 0 to 30 A

It has current based dry run protection. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop the motor and protect motor from dry running.

Dry run Auto Reset timer provided with with bypass facility



Automatic Overload and Dry run current adjustable

When motor start, press the start button for 5 seconds, This unit will set overload and dry run current automatically



High & Low Voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)



Short circuit protection

protection bypass facility



Input Voltage : 415 VAC

Output Voltage : 415 VAC

High accuracy in over load and dry run current



Motor on indication provided

voltage and amp indication provided

Auto byapass indication provided

Water level controller and water level indication for overhead and underground tank.

Error messages shows on display



User can bypass the protection.

RESET button provided to reset unit

High quality ABS. enclosure provided.

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.



SPP provided

It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding gets burn.

It protect motor from phase interchange. Out of 3 phase if any phase changed, then motor rotate reverse in this case motor winding gets burn

It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same



Working :

This model automatically switch ON and switch OFF Motor.

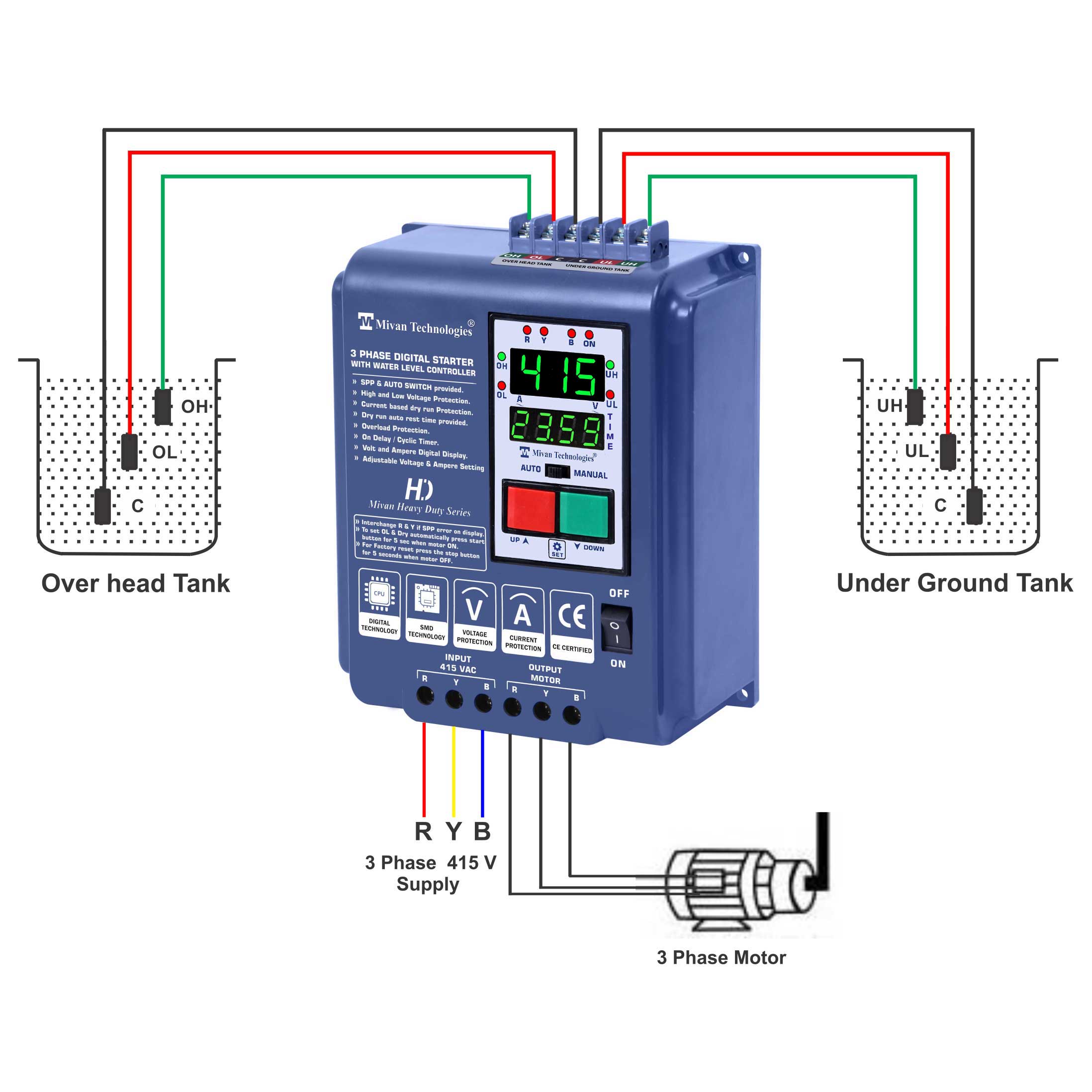

When water level of overhead tank becomes low means water get down from middle sensor and if water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.

AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.

This model have dry run protection so it only start motor if water present in underground tank or sump.

Protect motor from dry running.

Motor ON OFF LED indication provided.

Water Level indication provided for both tank.

Relay : 40 A

Sensing element :  it is free from oxidation, long life. Any conducting wire can be use for sensor.

Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. No additional wiring require to operate motor manually.

High quality ABS. enclosure provided.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.

All signals passes in sensors through the AC filter circuit that improve life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design
