External start stop connection provided to start and stop the motor externally
2940 Buy Now
MRP 9500
You save 6560 (69.05%)
Type: Heavy Duty series 2 years warranty
Sub Type: Motor Starter 3 Phase
Weight: 1.35 KG
Manufacturer: Mivan Technologies
Tax: 18 %
In Stock
Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.
100% Secure Payments, 7 Days Easy Return Policy.
Item Specifications :
Condition : A brand new unused, undamaged item that is fully operational and functions as intended.
Warranty : 2 Year Manufacturer.
Warranty Service : Repair or Replacement.
Package Contain :
1 Digital Starter
1 user manual
1 Warranty card of 2 years warranty
4 Screw and Hole plugs
1 Drill template
Product Descriptions :
DP 301S SE

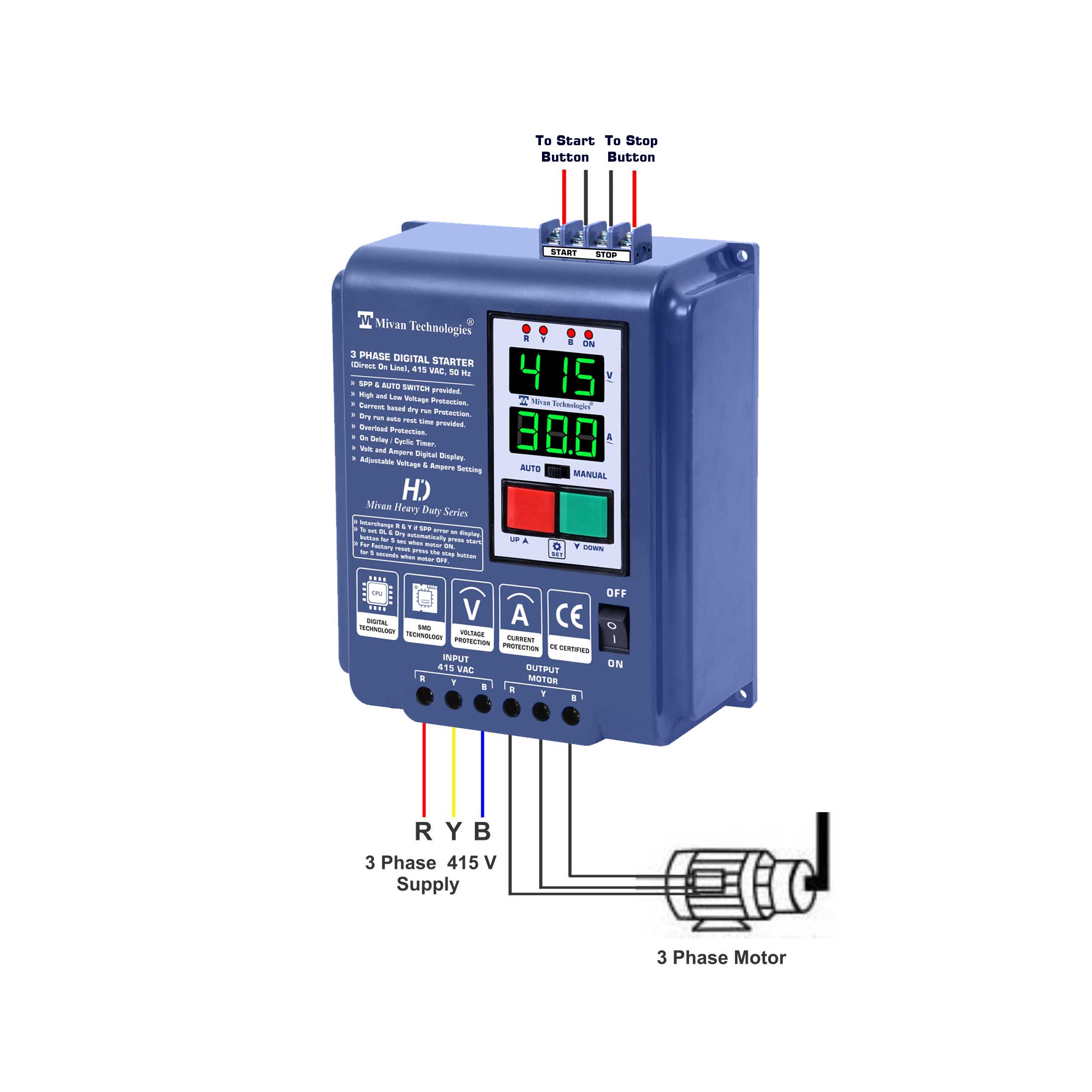

External start and stop connection provided to start the motor from external device output or from remote location
Digital DOL motor starter for 3 phase motor and submersible pump
Auto Bypass Switch provided. (In Auto mode motor automatically start in 45 seconds without pressing start button and in manual mode motor start by pressing start and stop button)
Relay rating : 40 A 3 pole
Input : R (Phase), Y (Phase), B (Phase) (Supply - 415 VAC)
Output : R (Phase), Y (Phase), B (Phase) (motor or pump connections)
Auto Switch Provided
Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable
Auto Bypass Switch provided. (In Auto mode motor automatically start when power goes and comes and in manual mode motor start by pressing start and stop button)
SPP provided
It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding gets burn.
It protect motor from phase interchange. Out of 3 phase if any phase changed, then motor rotate reverse in this case motor winding gets burn
It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same
Micro controller based design
Digital Volt and ampere meter are provided to see system voltage and load current accordingly.
Two seperate display for volt and amp.
high voltage protection,
low voltage protection,
Adjustable voltage limit (High and low both voltage protection limit adjustable)
overload protection
Adjustable overload from 0 to 30 A
Current based dry run protection provided
Adjustable dry run current from 0 to 30 A
Voltage and Current calibration facility
Short circuit protection
protection bypass facility
Cyclic timer provided with bypass facility (adjusatble from 0 second to 999 min) If user want start and stop the motor on perticuler time then user can set the on and off time of cyclic timer
Delay off timer provided with bypass facility (adjusatble from 0 second to 999 min) If user want to stop the motor after certain time then they can set the delay off timer. in this timing mode user can start the motor by pressing start button and it will auto stop based on preset delay off time.
On delay timer and off delay time provided (adjusatble from 0 second to 999 min) If user want to start the motor after certian time then they can use this timer.
Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)
Auto switch timer adjusatble from 0 second to 999 second
Input Voltage : 415 VAC
Output Voltage : 415 VAC
High accuracy in over load and dry run current
Auto and bypass mode available
User can bypass all the protection from setting
Isolated supply provided
Error messages shows on display
RESET button provided to reset unit
Start and stop button provided to start and stop motor
Set button provided to set the current voltage and timer.
Reset button provided to reset the unit
Factory reset facility in case of incorrect value entered.
Motor side current unbalance protection provided
Phase to Phase Current differents are adjustable
Phase to Phase Voltage differents are adjustable
Voltage and Current calibration facility
Suitable for motor up to 10 HP
High quality ABS Enclosure.
Working :
This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.
It has current based dry running. If the motor runs without water then it takes a lower ampere (current) then its actual current. so when the motor current is down from actual current, it stops the motor and protects the motor from dry running.
Protect motor from dry running.
