Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

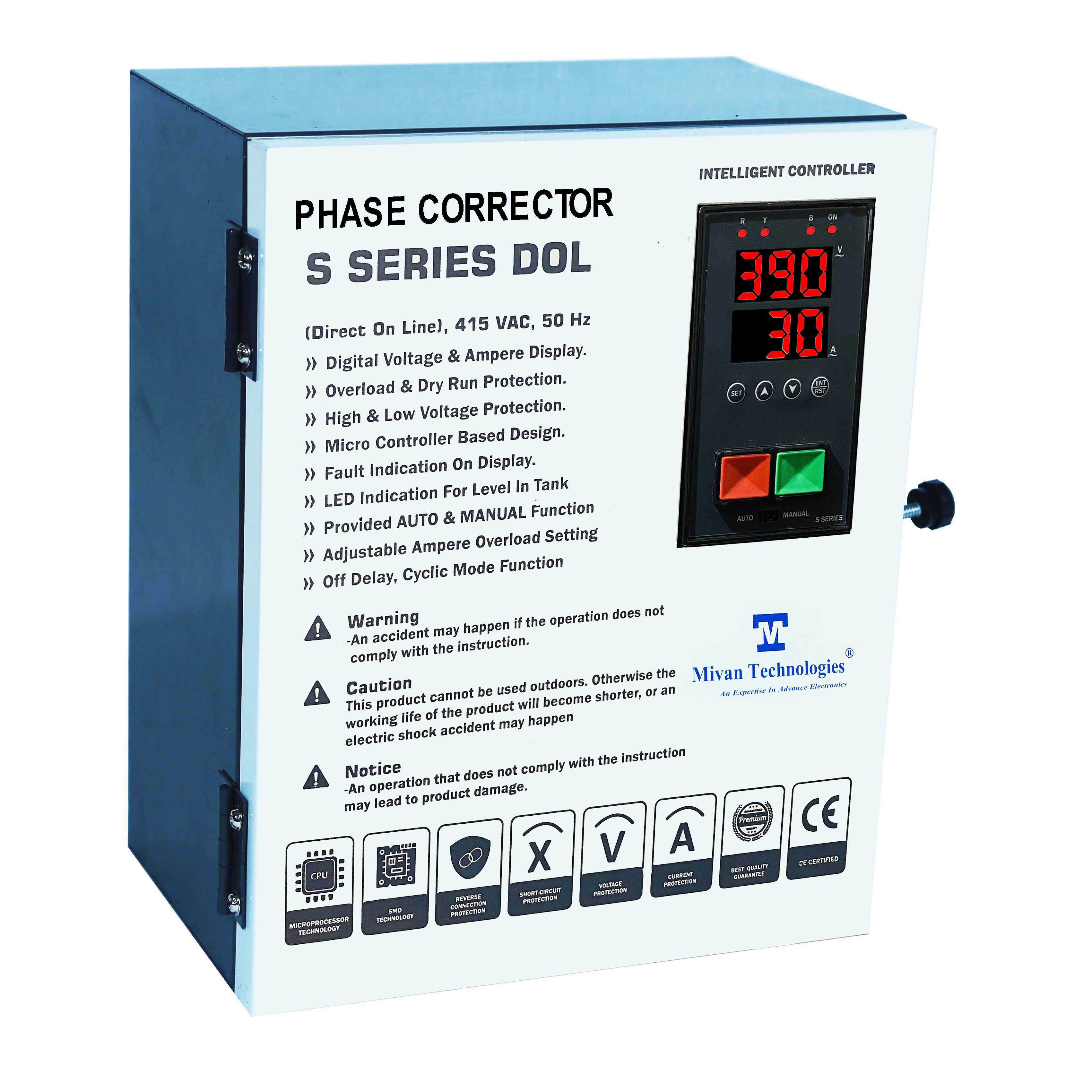

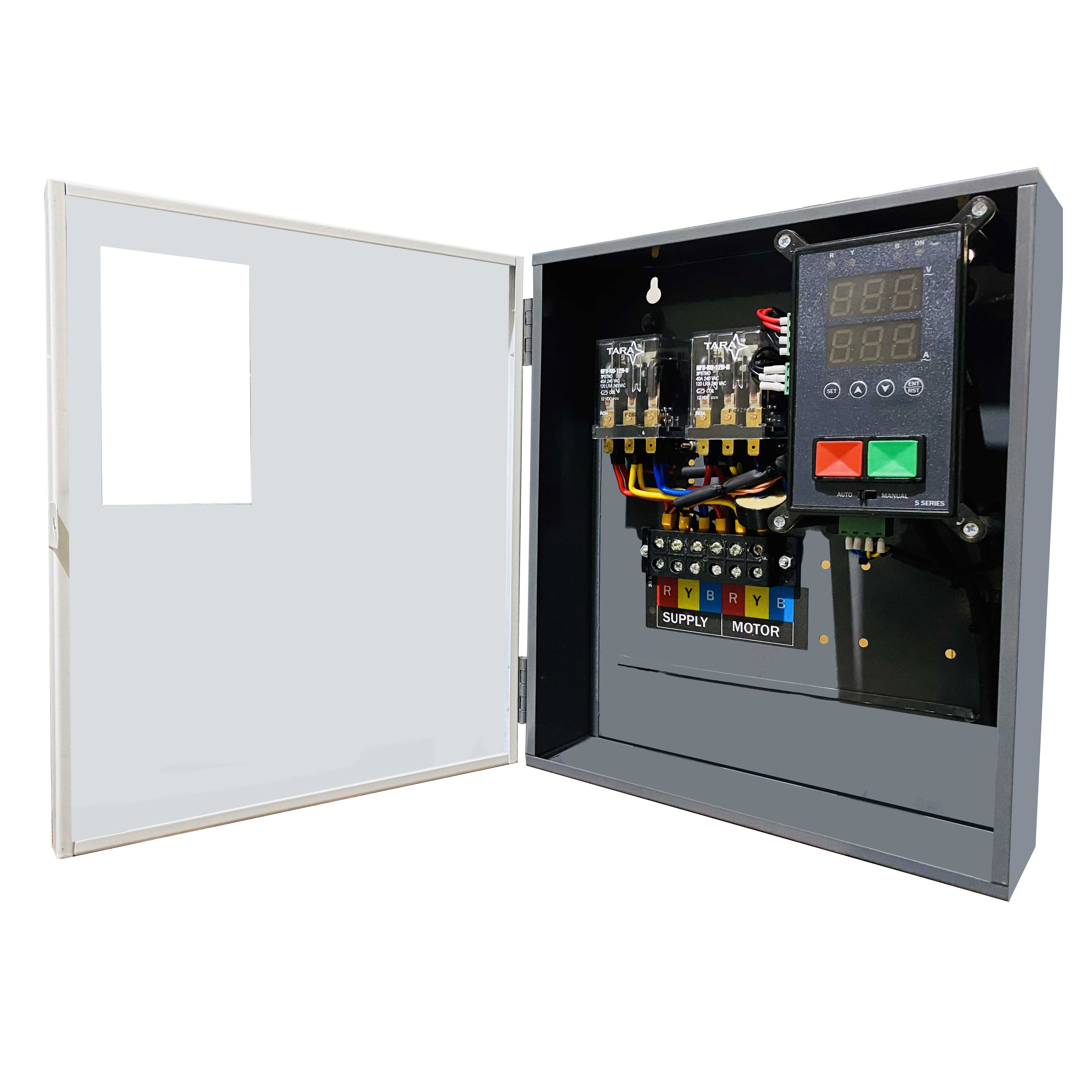

1 number phase corrector with digital DOL starter

1 user manual

Product Descriptions :

This 3 Phase corrector will give correct phase sequence R Y B at output even there is not a correct sequence at input side

If input side any phase changes as wrong phase like R B Y, Y B R or any other then this phase corrector give correct phase sequance of R Y B at output side

so your motor never operate in reverese direction

It comes with Digital DOL starter autoswitch and spp

Motor side current unbalance protection provided

Phase to Phase Current differents are adjustable

Phase to Phase Voltage differents are adjustable

Voltage and Current calibration facility

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Suitable for motor up to 10 HP

high voltage protection,

low voltage protection,

Adjustable high and low voltage protection limit

overload protection

Adjustable overload from 0 to 30 A

Current based dry run protection provided

Adjustable dry run current from 0 to 30 A

It has current based dry running. If the motor runs without water then it takes a lower ampere (current) then its actual current. so when the motor’s current gets down from its actual current, it will stop the motor and protect the motor from dry running.

Short circuit protection

protection bypass facility

Start and stop buttons are provided

Cyclic timer provided with bypass facility (adjusatble from 0 second to 999 min) If user want start and stop the motor on perticuler time then user can set the on and off time of cyclic timer

Delay off timer provided with bypass facility (adjusatble from 0 second to 999 min) If user want to stop the motor after certain time then they can set the delay off timer. in this timing mode user can start the motor by pressing start button and it will auto stop based on preset delay off time.

On delay timer and off delay time provided (adjusatble from 0 second to 999 min) If user want to start the motor after certian time then they can use this timer.

Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)

Auto switch timer adjusatble from 0 second to 999 second

Input Voltage : 415 VAC

Output Voltage : 415 VAC

High accuracy in over load and dry run current

Auto and bypass mode available

User can bypass all the protection from setting

Isolated supply provided

Error messages shows on display

RESET button provided to reset unit

High quality Metal Steel Enclosure.
