Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 Water Level Controller Unit.

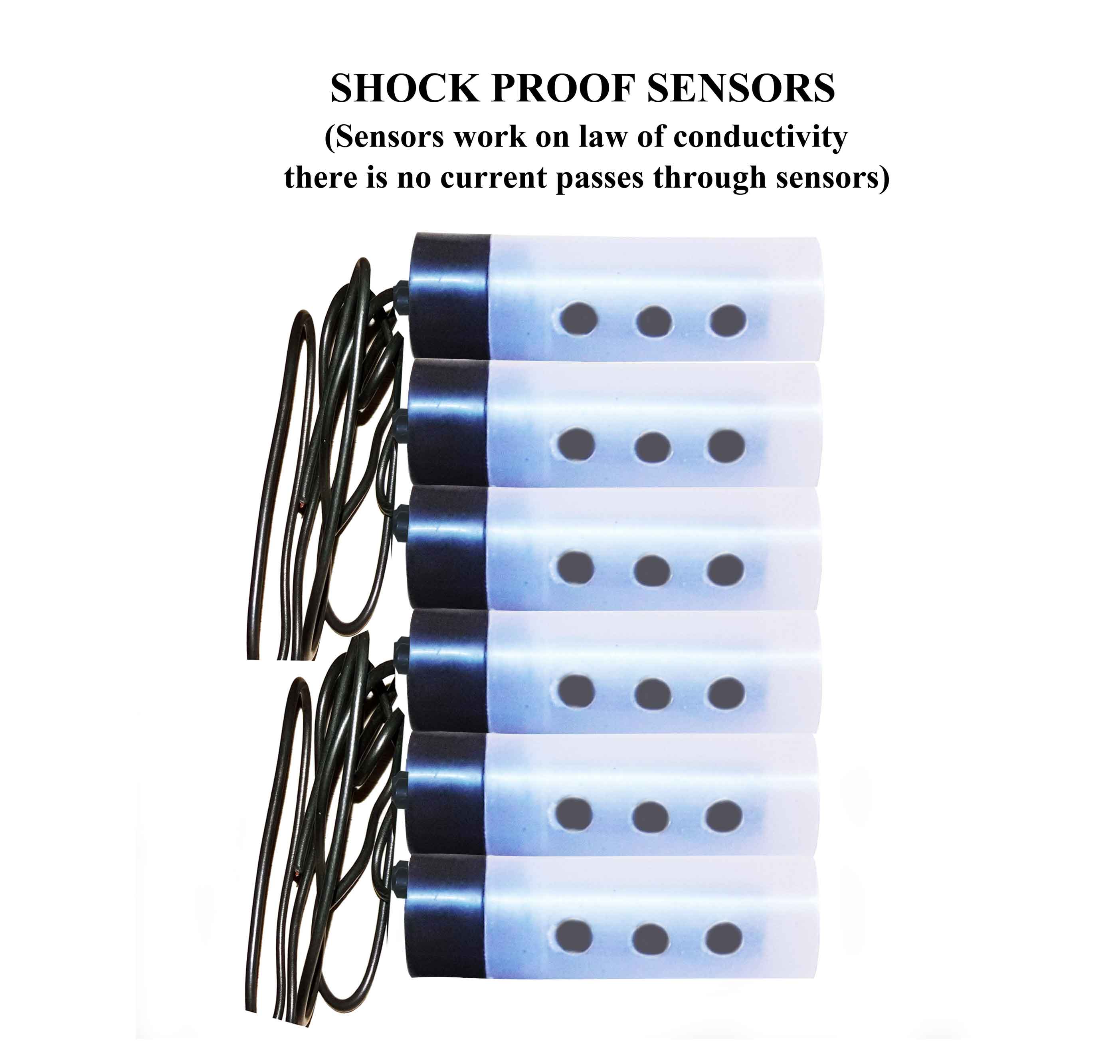

6 S S Sensors with 1.5 meter wire

1 user manual with technical details.

Product Descriptions :

High quality ABS. Enclosure.

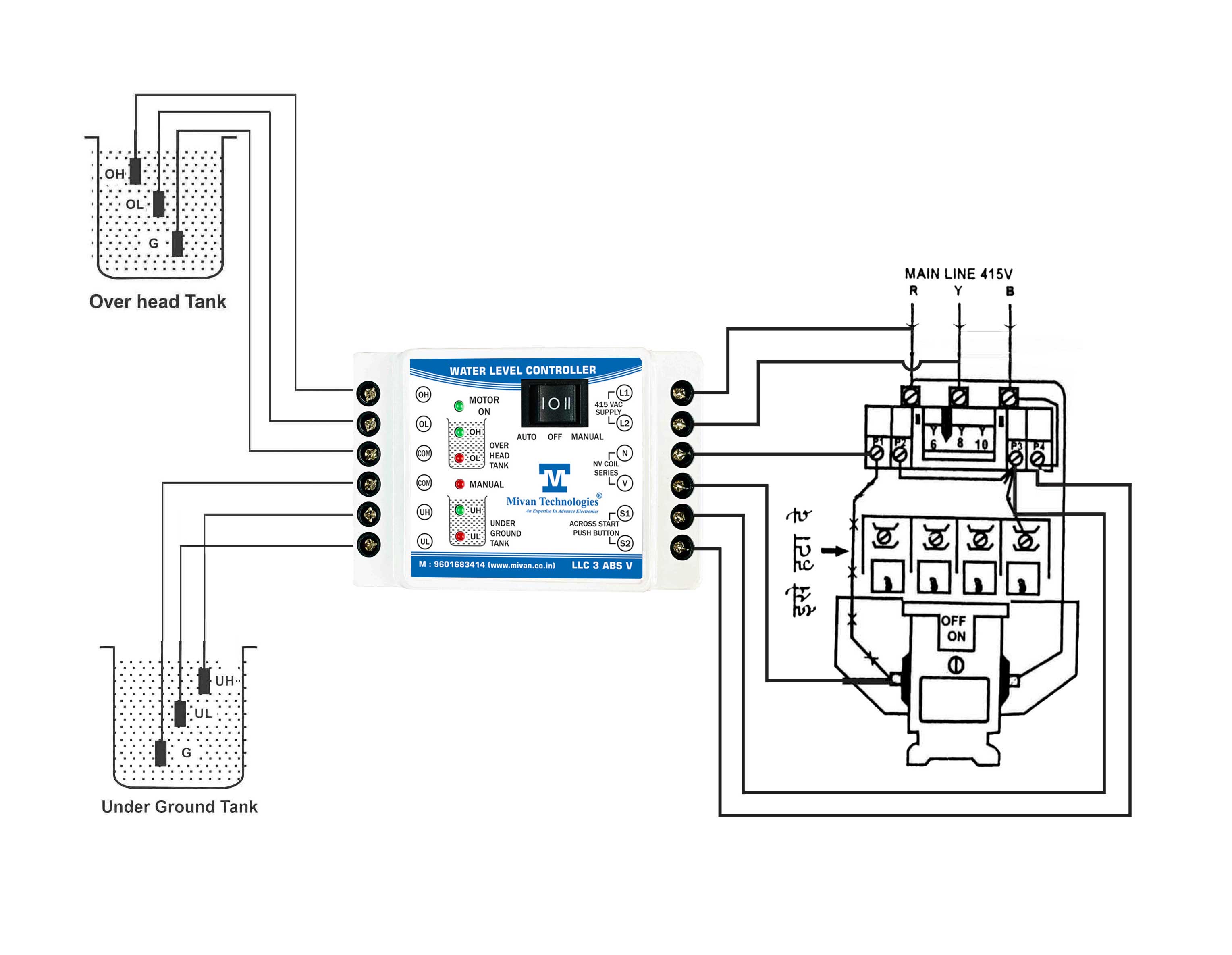

Working : THIS MODEL IS SUITABLE TO ANY 3 PHASE STARTER PANEL.

This model automatically switch ON and switch OFF Motor.

When water level of overhead tank becomes low means water get down from middle sensor and water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.

AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.

This model have dry run protection so it only start motor if water present in underground tank or sump.

Suitable to any HP Motor as no load comes on our controller. Load passes to existing starter.

Motor ON OFF LED indication provided.

Water Level indication provided for both tank.

Supply voltage : 415 V AC,

Sensing element : S S sensor, it is free from oxidation, long life. Any conducting wire can be use for sensor.

All signals passes in sensors through the AC filter circuit that improves the life of sensor,

Isolated supply provided

Electrolysis free design

Sensor fault detection provided, if sensor got failed LED start blinking

Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. No additional wiring require to operate motor manually.

High quality ABS. enclosure provided.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.
