Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 Water Level Controller Unit.

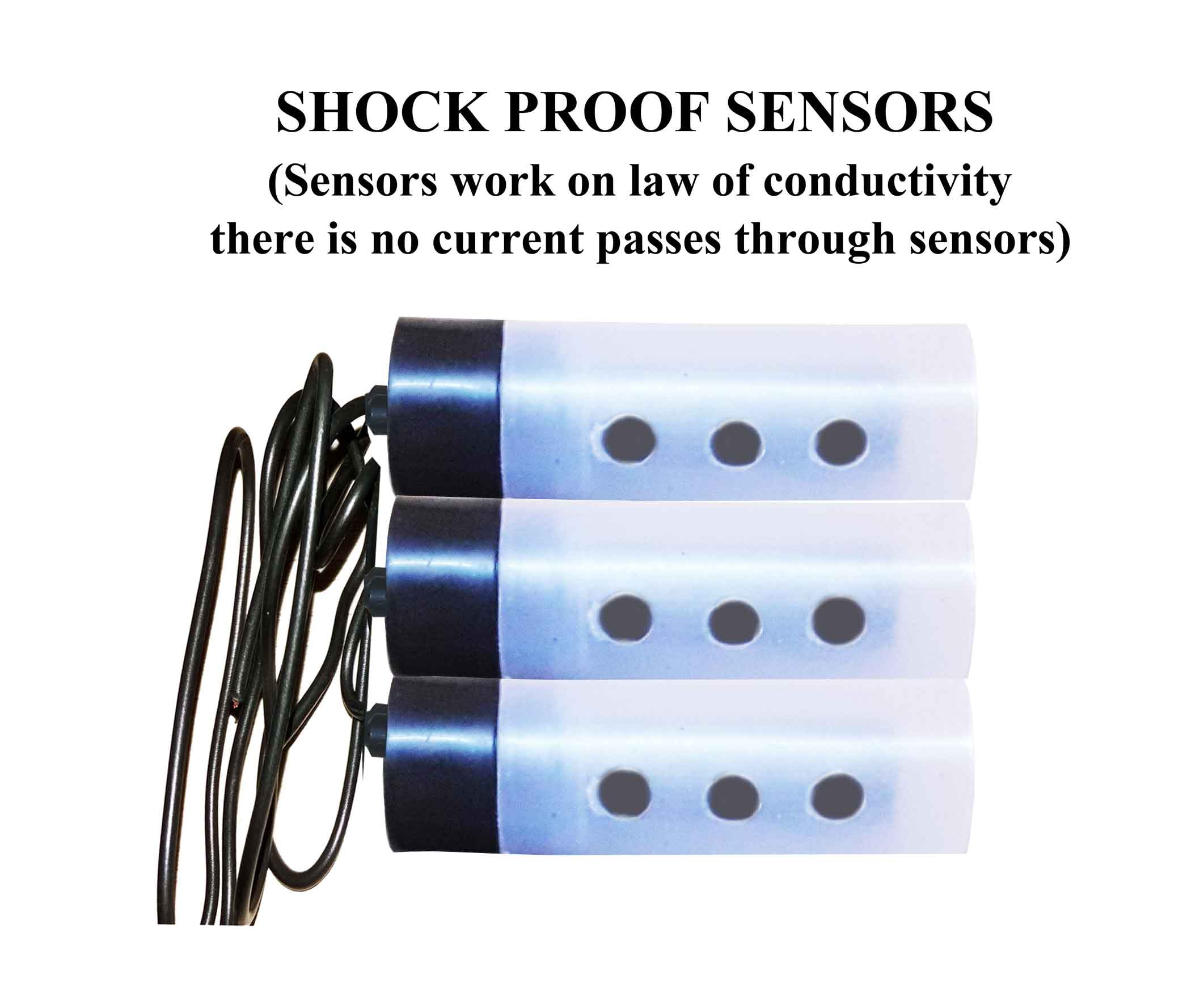

3 S.S Sensors with 1.5 meter wire.

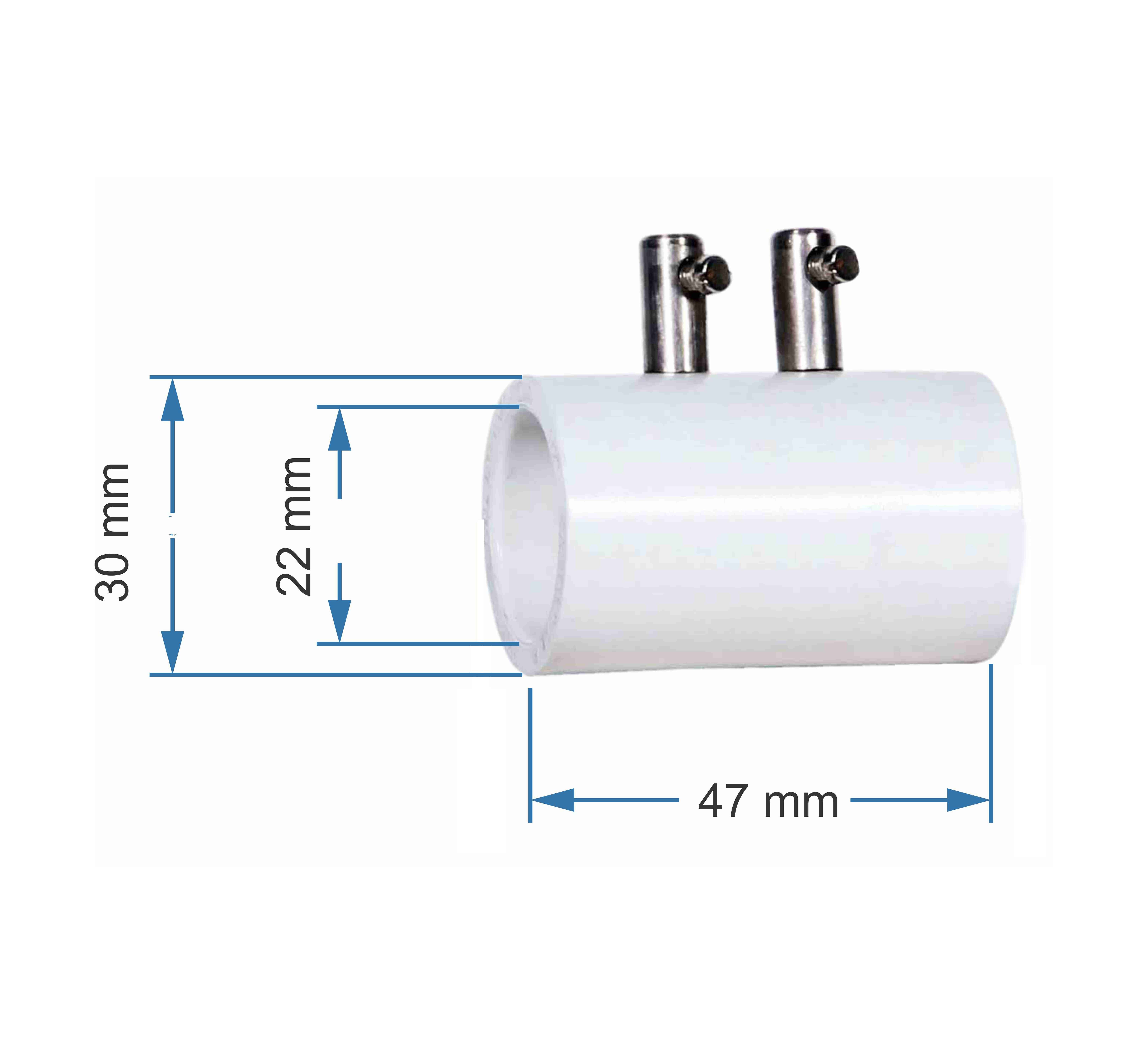

1 T Sensor .

1 user manual with technical details.

Product Descriptions :

Working : This controller will start the motor when water comes in the T sensors, and stop the motor when the upper tank is full. useful to protect the motor from dry running.

As shown in the diagram, out of three sensors, 1 sensor put at the bottom, 1 sensor put at the middle, and 1 sensor at the top level of the tank. Place the T sensor in the municipal supply line as shown in the diagram.

When the water level of the overhead tank becomes low means water gets down from the middle sensor and water is present in the T-Sensor, the motor gets started automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.

AUTO OFF WHEN TANK IS FULL OR NO WATER IN T SENSOR.

If users want to start their motor, when government water comes to the municipal line, then they need to put this sensor at the water supply line. So when government water comes, T - sensor (Line sensor) will sense the water and send commands to the water level controller to start the motor. If water does not come, the motor will not start.

Suitable for 0.1 HP to 5.0 HP Motor, Protect motor from dry running.

Motor ON OFF LED indication provided.

Water Level indication provided for both tanks.

Supply voltage : 220-270 V AC,

Sensing element : S S sensor, it is free from oxidation, long life. Any conducting wire can be used for the sensor.

Auto and Manual mode switch available. In auto mode the motor starts and stops automatically. In manual mode the user can start and stop the motor by pressing the start and stop button of the controller. No additional wiring is required to operate the motor manually.

High quality M.S. enclosure provided.

Our offered controller is manufactured by our adroit professionals using quality tested components and modern technology. We kindly request buyers to communicate with us if there are any issues. We will help to solve all of your issues. Every care is taken for packing so that the item reaches the buyer safely and undamaged.
