Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 Water level controller with timer

2 S.S sensors with 1.5 meter wire

1 user manual

Function :

In this device user can start the motor in two way,

1. On time

This device is including with real time clock timer.

In this device user can start the motor on perticuler timer and once the tank full motor stops.

For example if you have set 6 O'clock for on time then motor start at 6 O'clock and and stops when tank gets full

2. by pressing start button

This controller will start the motor by pressing the start button of the controller and it will automatically switch OFF the Motor, when the tank will full.

Users can press the start button at any time they want.

Product Descriptions :

16 ON and OFF time per day setable.

Day off facility, User can skip any number of days in week ( for example If user do not want to start on monday and friday or any other day then user can skip that day. Timer will not start on that day and only start on other days)

accurate time setting as RTC provided

Free from data corruption. battery backup provided.

Display of real time clock for on/off.

Battery-backup for 500 hrs. in case of power failure. No need to re-program (reset the time) after resumption of power supply. The unit will work as per pre programmed only.

Be free from data lost problem, As all programmed data will be stored in memory

Micro controller based Digital Water Level Controller.

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Two seperate display for volt and amp.

Over load Protection,

Adjustable overload from 0 to 30 A

Current based dry run protection,

Adjustable dry run current from 0 to 30 A

It has current based dry run protection. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop the motor and protect motor from dry running.

Automatic Overload and Dry run current adjustable

When motor start, press the start button for 5 seconds, This unit will set overload and dry run current automatically

High & Low Voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)

Short circuit protection

protection bypass facility

Input Voltage : 230 VAC

Output Voltage : 230 VAC

High accuracy in over load and dry run current

Motor on indication provided

voltage and amp indication provided

Auto byapass indication provided

Water level controller and water level indication for overhead and underground tank.

Error messages shows on display

User can bypass the protection.

RESET button provided to reset unit

High quality ABS. enclosure provided.

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.

Suitable for 0.1 HP to 3.0 HP Motor, Protect motor from dry running.

Supply voltage : 220-270 V AC,

Relay : 40 A

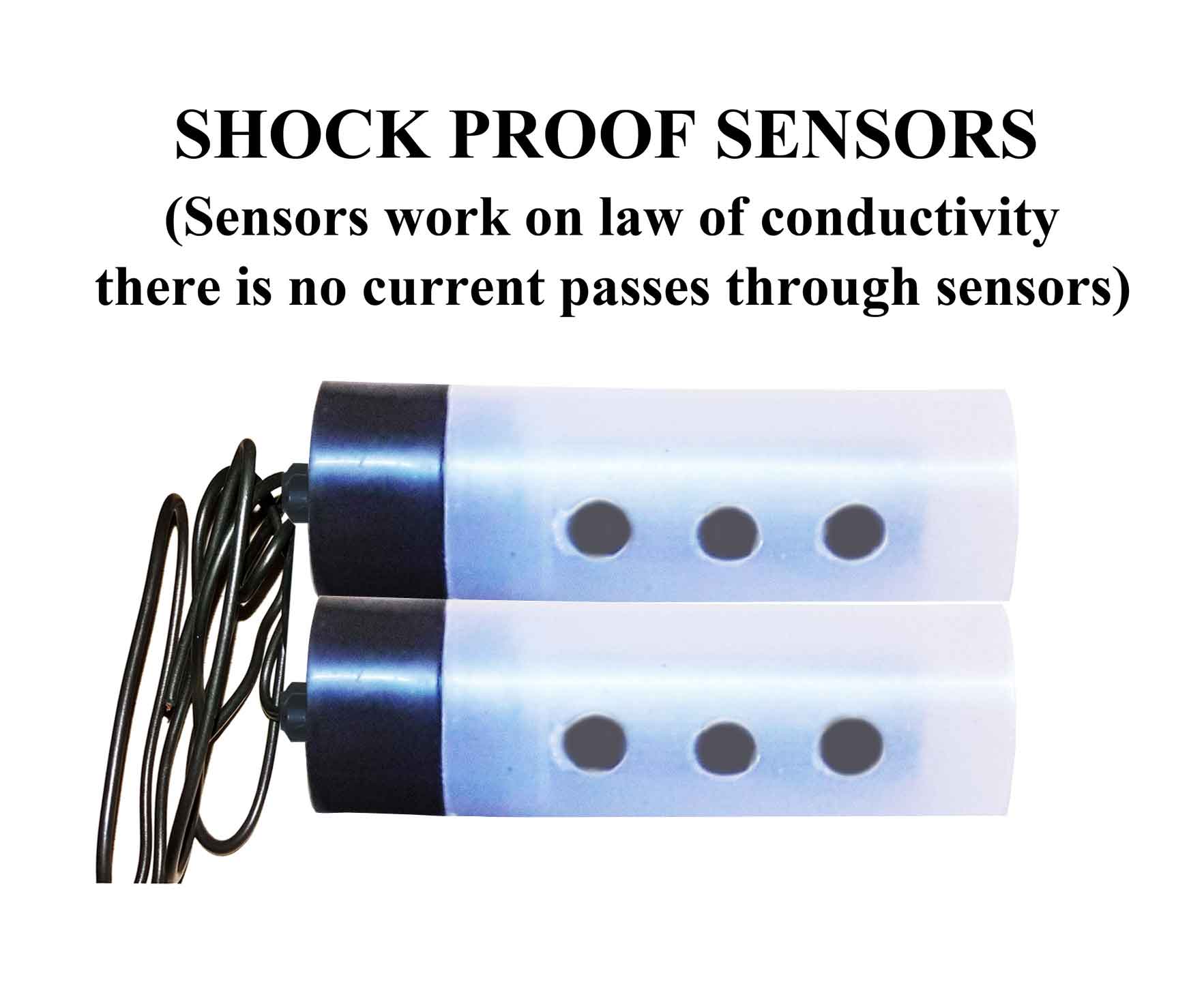

Sensing element :  it is free from oxidation, long life. Any conducting wire can be use for sensor.

Auto and Manual mode switch available.

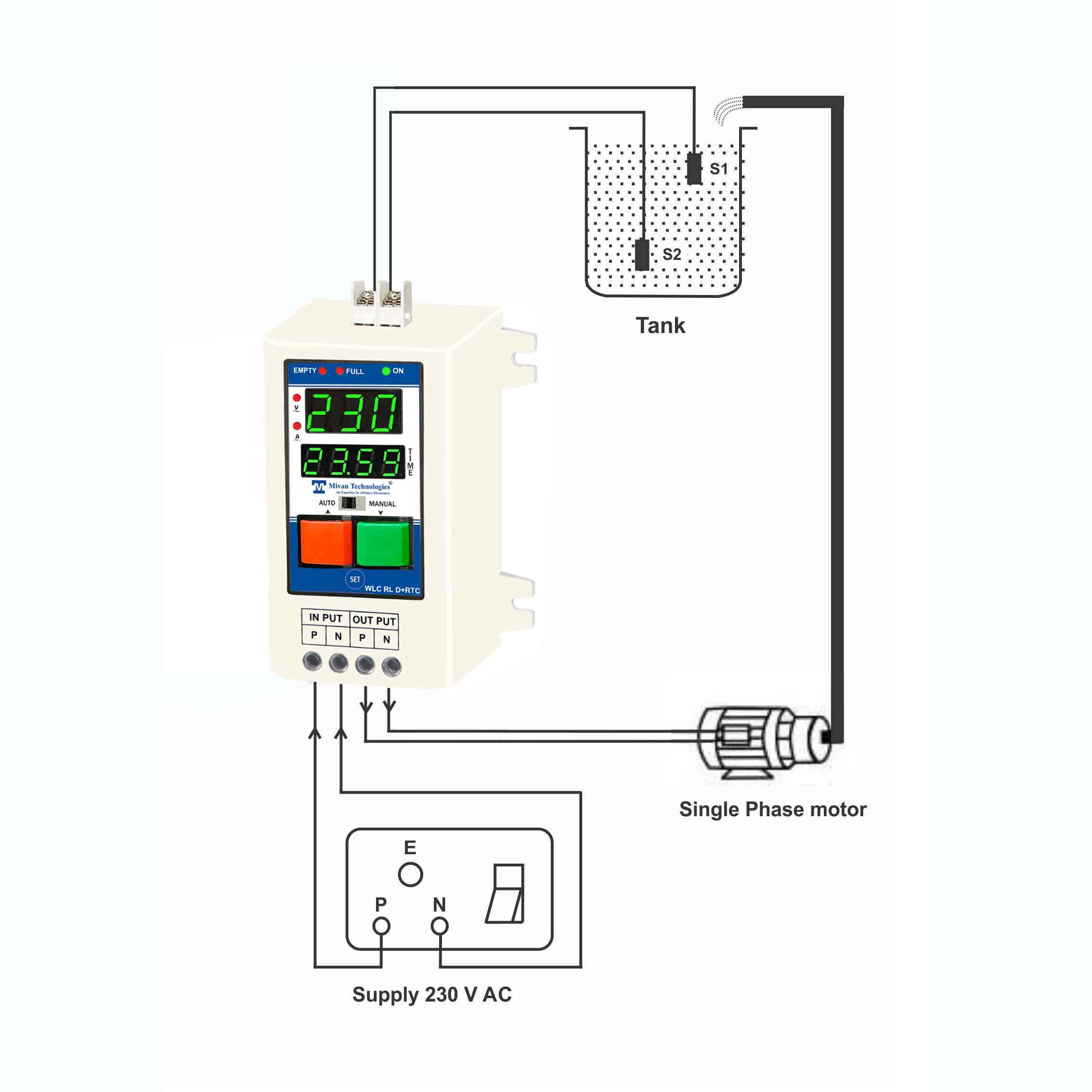

Also Suitable for MCB Starter panel and submersible motor, see diagram above for connection.

High quality ABS. enclosure provided.

All signals passes in sensors through the AC filter circuit that improve life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design
