Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Package Contain :

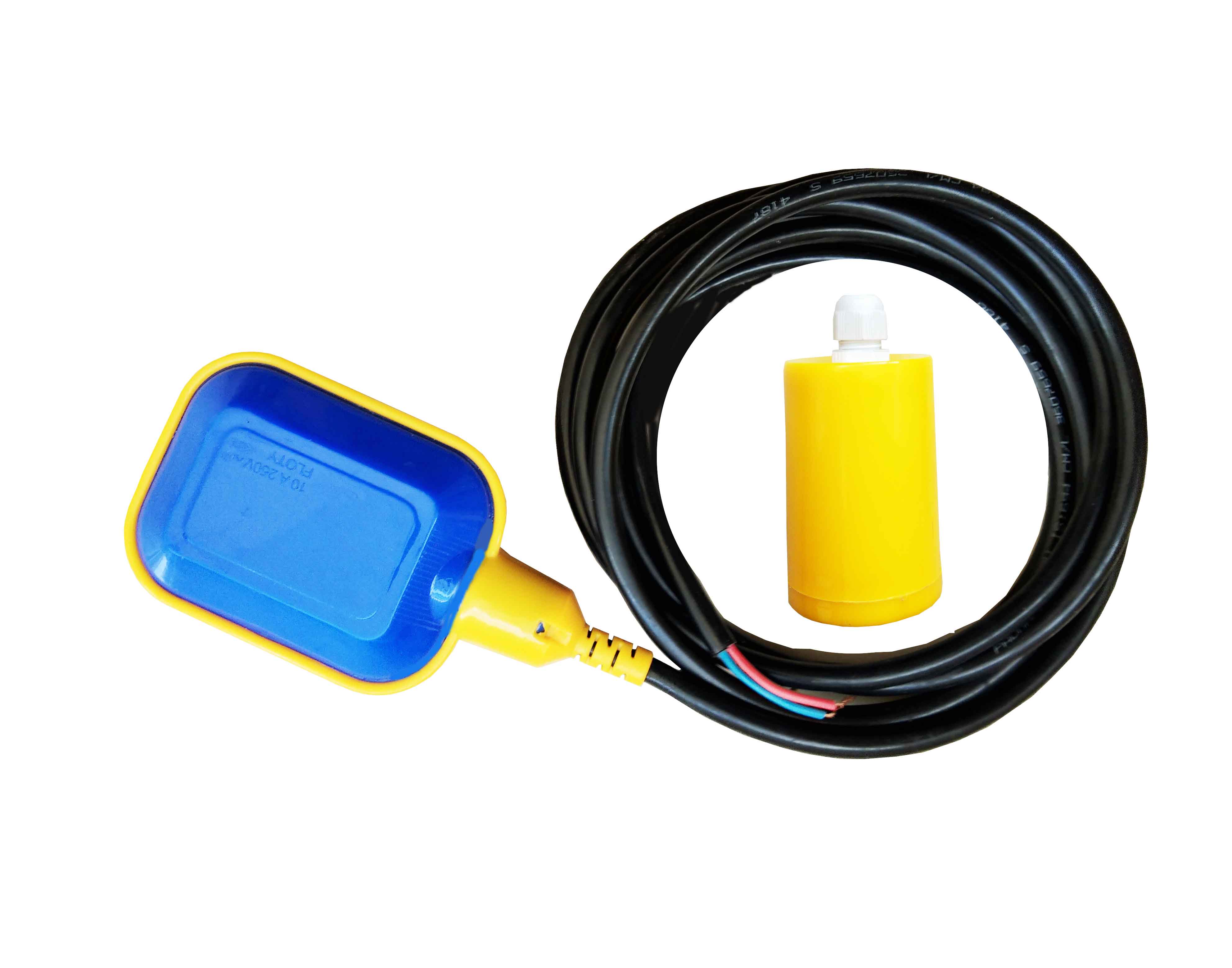

1 Float Switch.

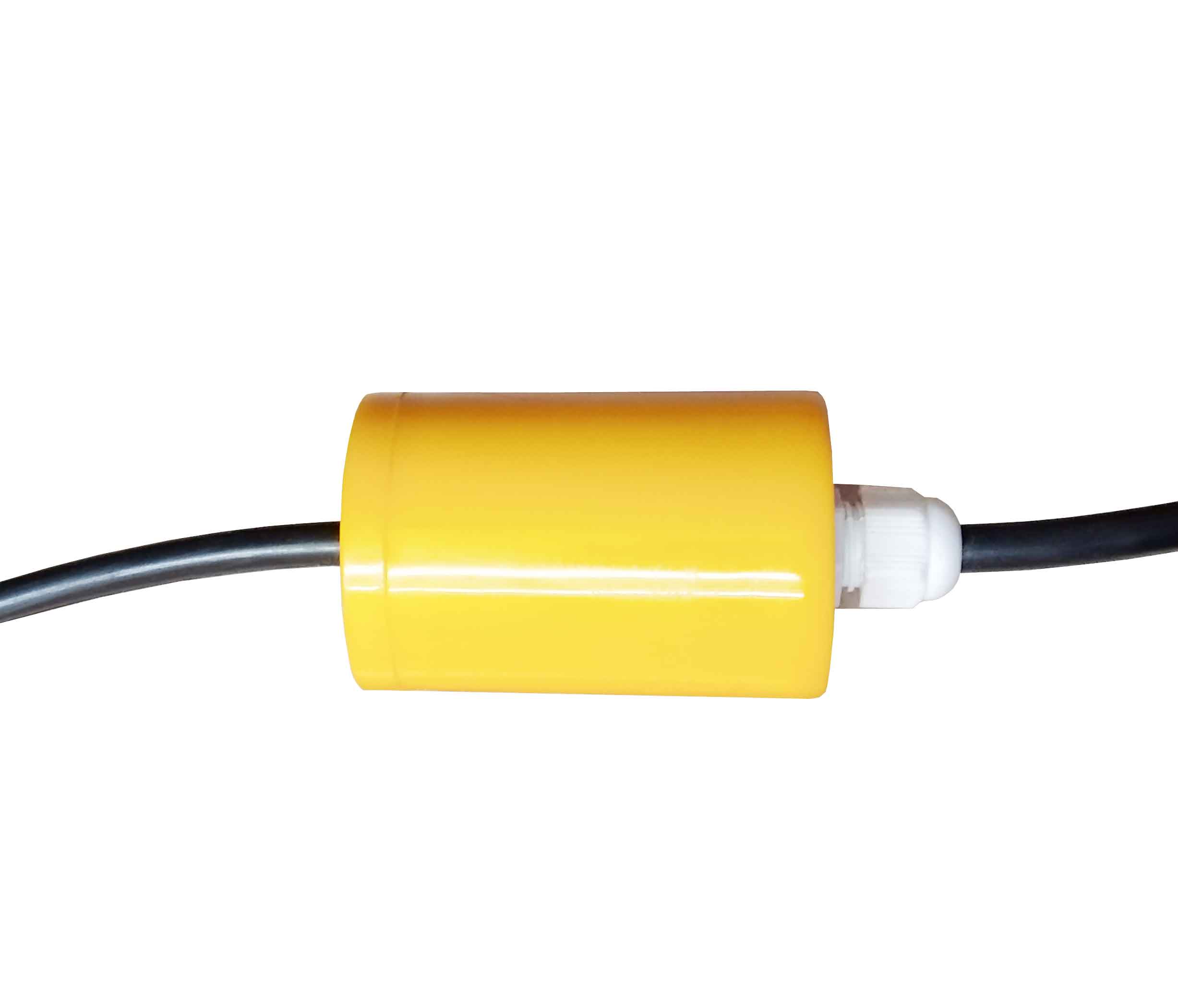

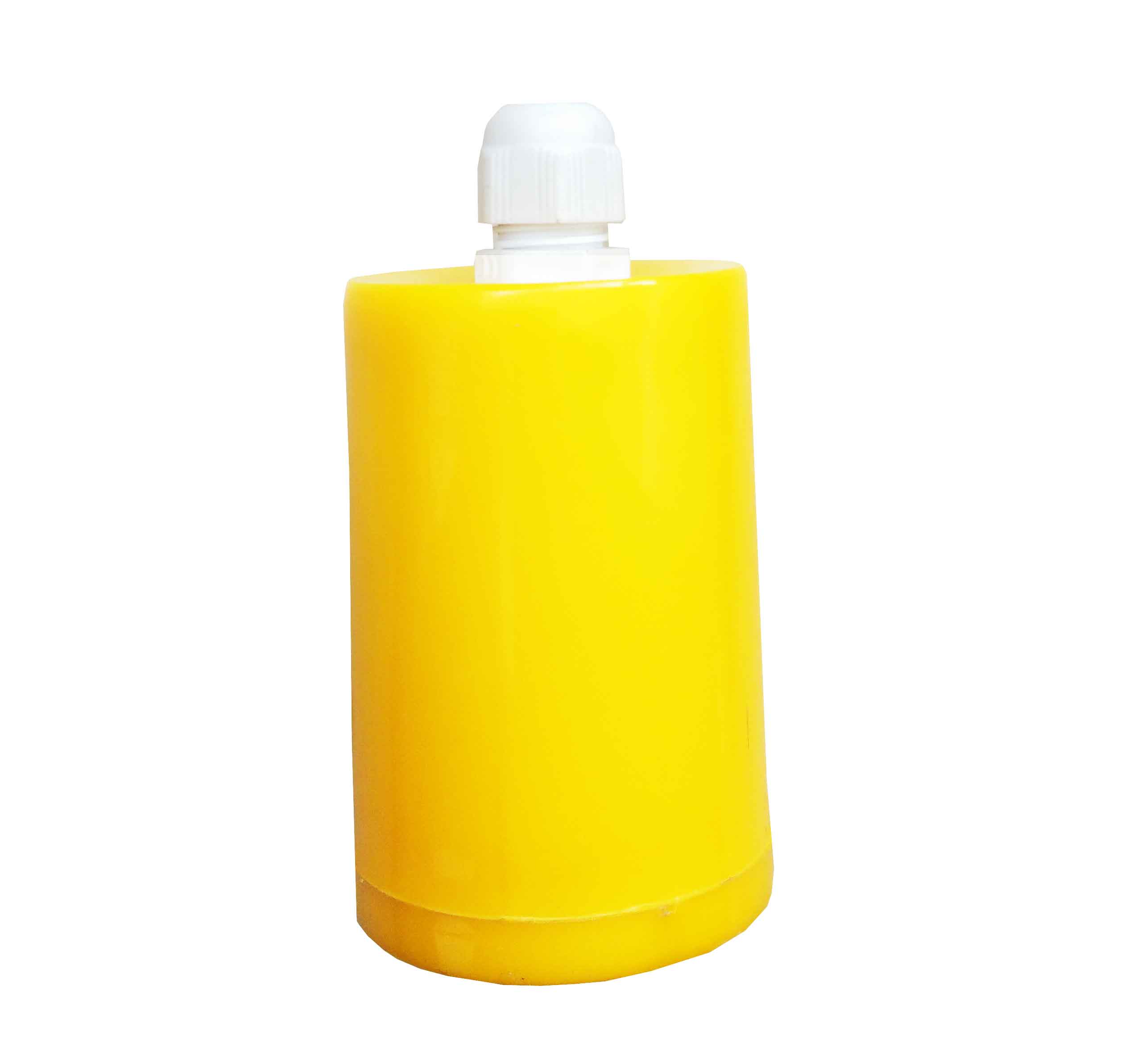

1 counter weight with gland.

1 user manual with technical details.

Product Descriptions :

A float switch is a device used to detect liquid level of tank.

It is used to control motor automatically.

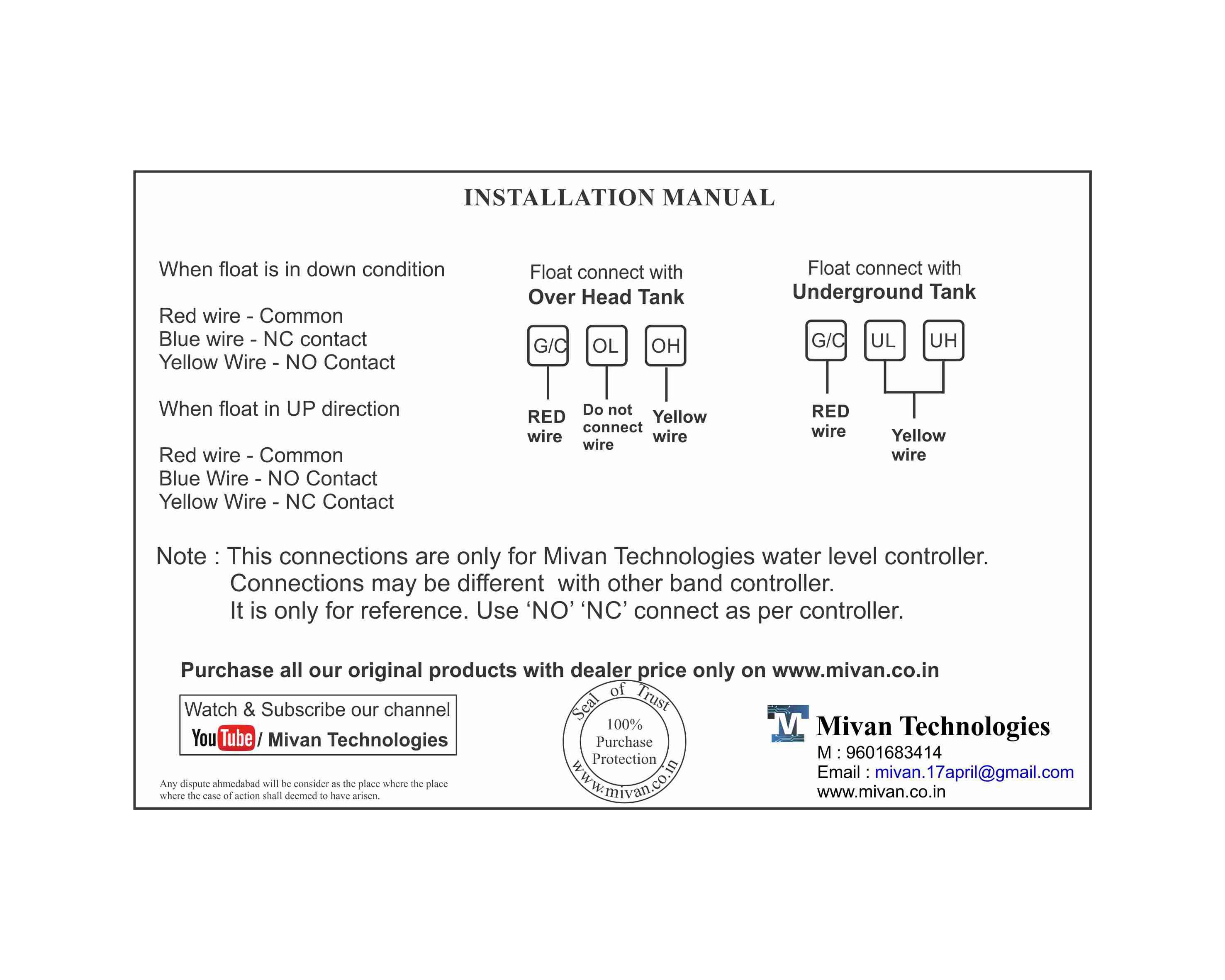

It control motor directy as well as can connect with water level controller.

If it connect with water level controller then suitable up to 100 HP Motor. If connect directly then 10 A capacity.

Rated voltage: 220 to 270 V AC

Rated current: 10 A / Contacts: NO+NC

Weight: 635 Gm

Cable length: 3 Meter

High quality 1sq mm 3 core wire provided

Water proof plastic body

Gland provided in counter weight so it is free from lose connection, And through this gland wire fit correctly.

Installation : Insert the cable in the counter weight (yellow color part), from the conical part.

Thus causing the plastic ring inserted in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver). The ring should then be positioned in the point where it is desired to block the counterweight.

Force the counterweight on the ring by rotating it using a slight pressure

Corrosion Free,

Sturdy and durable & need no maintenance.

No current / voltage is passed through water, therefore no electrolysis or Salt deposition.

Long life

Rust proof (entire sensor body in polypropelene)

It can be also used in hard water or fuel such as diesel, kerosene, oil etc.

Every care is taken for packing so that the item reaches to the buyer safely and undamaged.
