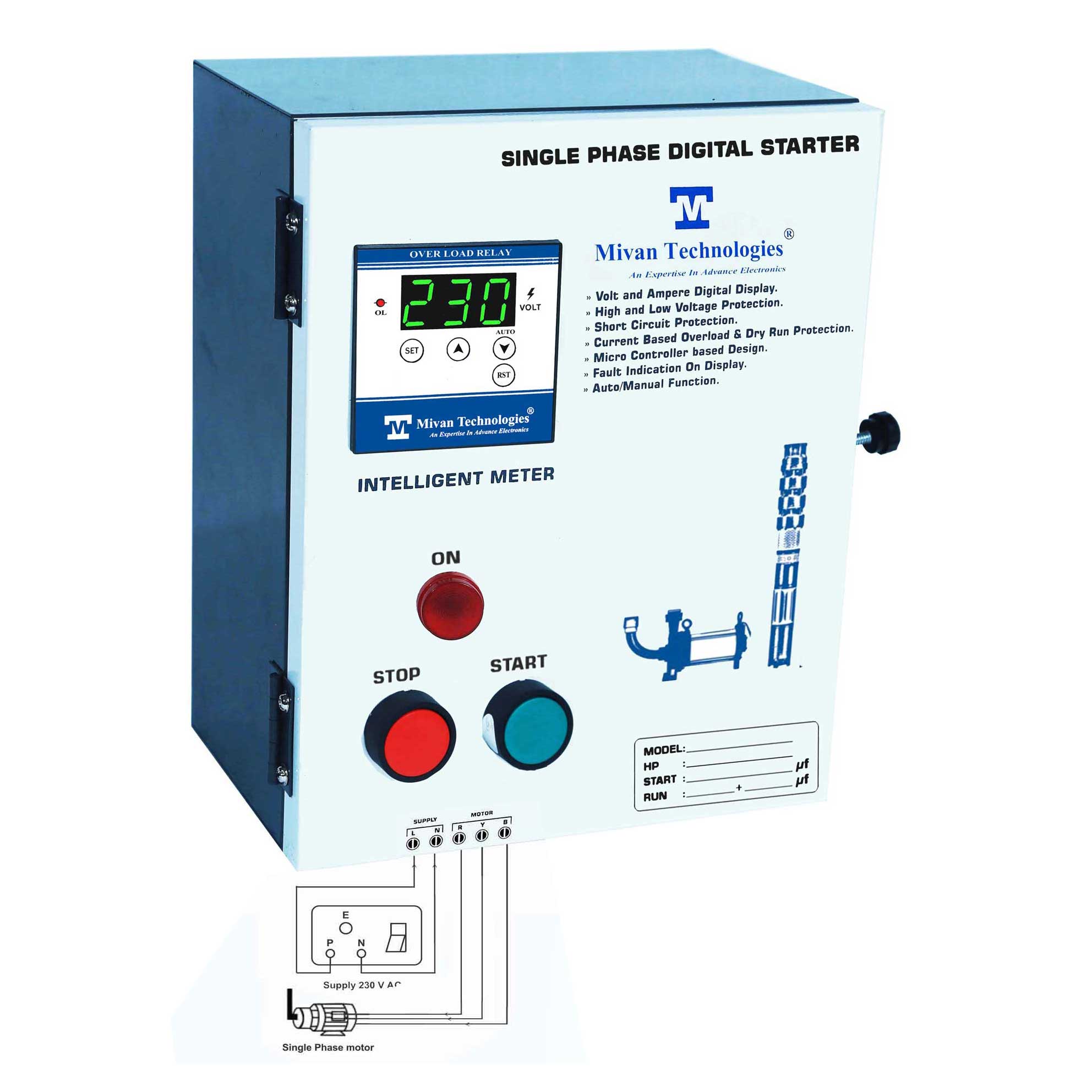

Digital motor starter panel with volt and amp meter with HV LV OL DRY RUN Protection with timer suitable FOR 1 HP DS SR ECO

1 Run Cap 36 MFD 1 start cap 100/120 current based dry run protection adjustable overload and dry run current

 1350.00

MRP 4500
You save 3150 (70.00%)


Type: Motor Starter Panel

Sub Type: Single phase,Digital

Weight: 3.00 KG

Manufacturer: Mivan Technologies

Tax: 18.00 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.


100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.



Package Contain :

1 Digital starter

1 user manual with technical details.



Product Descriptions :

This model is suitable for 1 HP motor and submersible pump

1 No Run Capacitor : 36 MFD

1 Start Capacitor : 100/120

Input : P (Phase), N (Neutral)

Output : R, Y, B (motor or pump connections)

Micro controller based design

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

high voltage protection,

low voltage protection,

Short circuit protection

overload protection

protection bypass facility

Adjustable overload from 0 to 30 A

Current based dry run protection provided

Adjustable dry run current from 0 to 30 A

Dry run reset timer provided

Adjustable voltage limit (High and low both voltage protection limit adjustable)

Delay timer provided with bypass facility (adjusatble from 0 to 999 min)

OFF delay timer provided (adjusatble from 0 to 999 min)

Input Voltage : 230 VAC

Output Voltage : 230 VAC

High accuracy in over load and dry run current

Auto and bypass mode available

User can bypass all the protection from setting

Isolated supply provided

Error messages shows on display

RESET button provided to reset unit

Digital starter for single phase appliances and motor

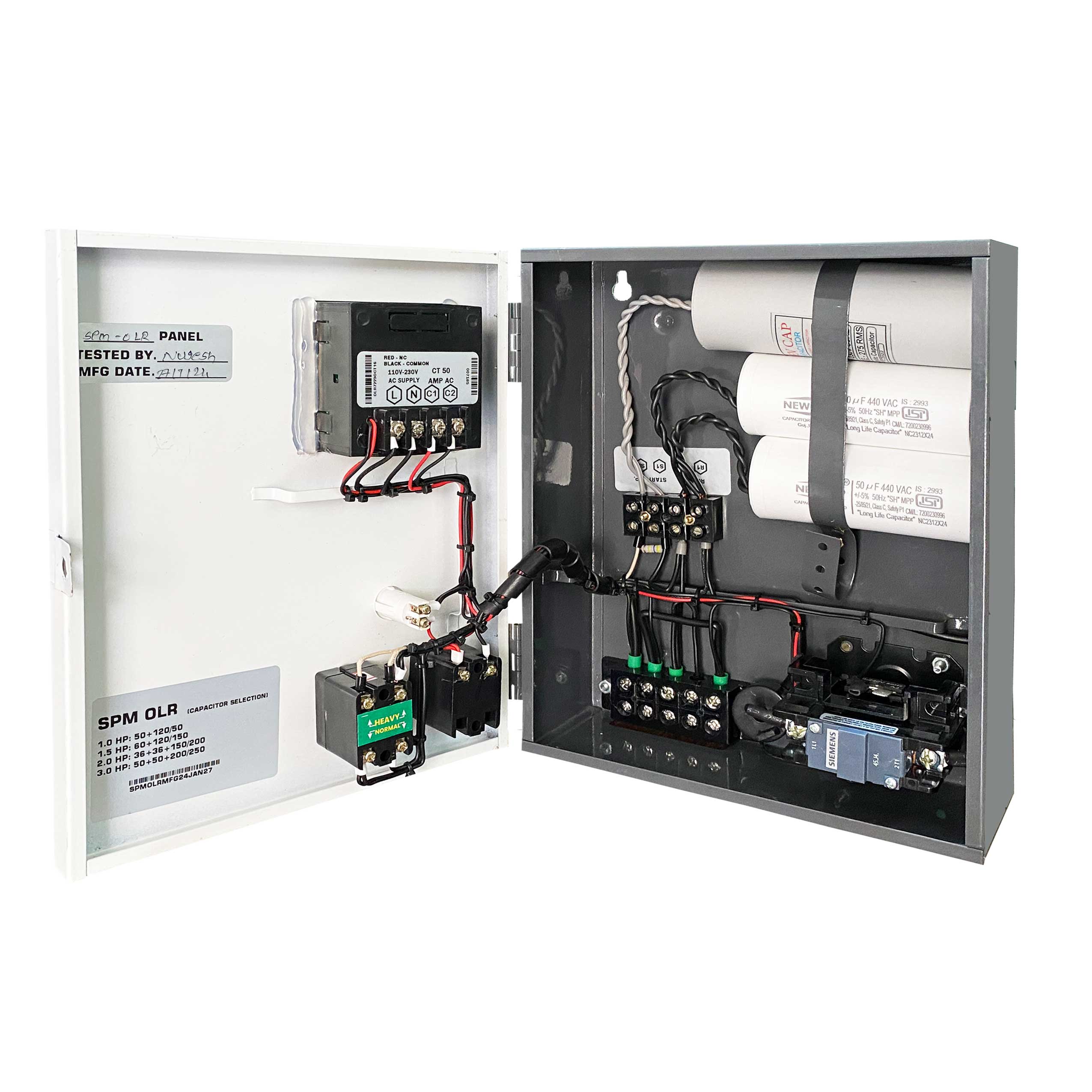

BCH Contactor provided for heavy duty load

High quality Metal. enclosure provided.

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Automatic overload and dry current setting key to set overload and dry current automatically based on motor's current.



Working :

This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.

It has current based dry running. If the motor runs without water then it takes a lower ampere (current) then its actual current. so when the motor current is down from actual current, it stops the motor and protects the motor from dry running.

Protect motor from dry running.
