DP 301S 3 Phase DOL Digital Starter for 3 Phase Motor Suitable up to 10 hp Motor with HV LV OL Dry protections with SPP Auto switch and cyclic timer

current based dry run protection Adjustable overload and dry run current, Adjustable timer

 1550

MRP 9000
You save 7450 (82.78%)


Type: Motor Starter 3 Phase

Sub Type: Digital Starter,DOL Economy

Weight: 1.35 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

Product Variants




100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.



Package Contain :

1 Digital Starter

1 user manual



Product Descriptions :

Digital DOL motor starter for 3 phase motor and submersible pump

Auto Bypass Switch provided. (In Auto mode motor automatically start in 45 seconds without pressing start button and in manual mode motor start by pressing start and stop button)



Relay rating : 40 A 3 pole

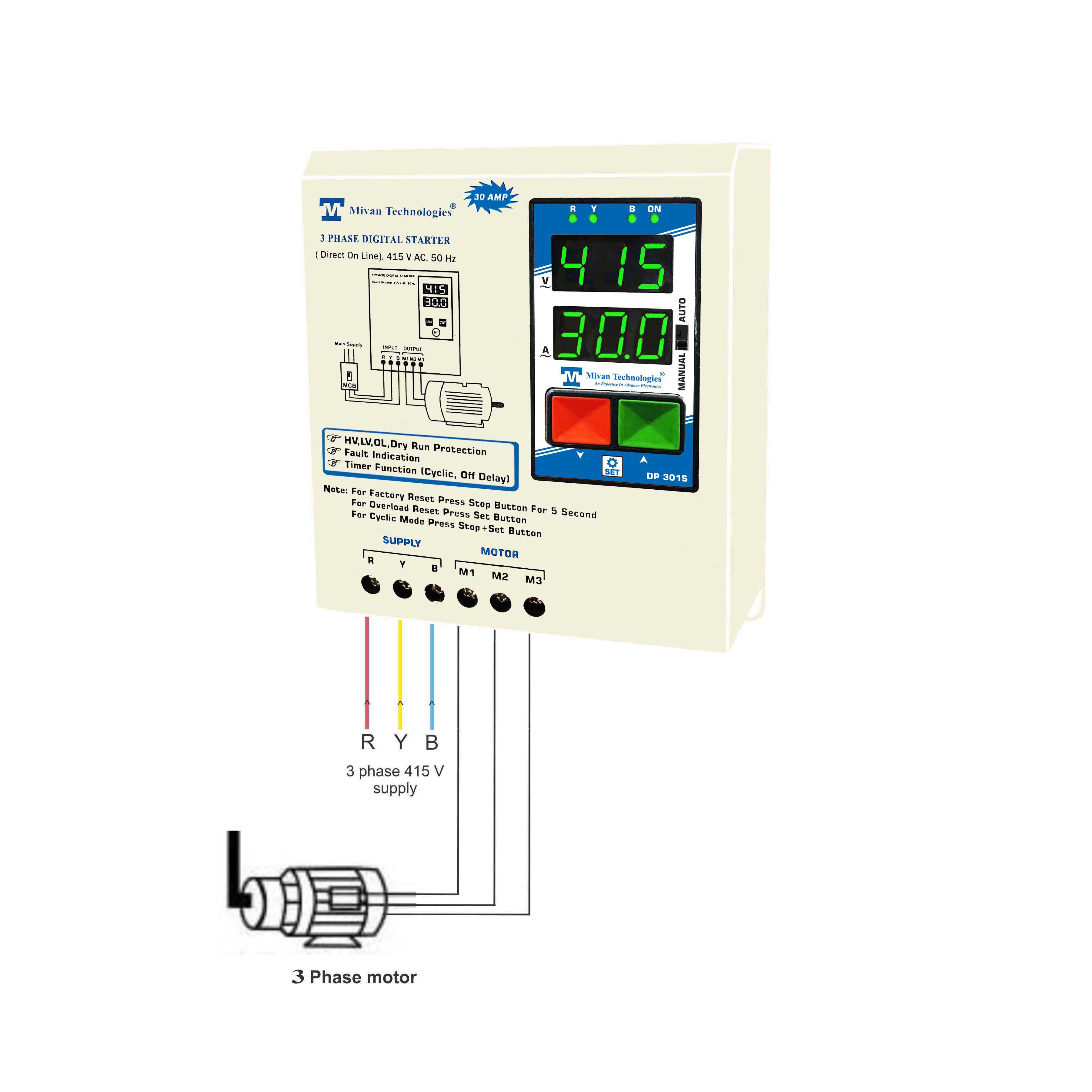

Input : R (Phase), Y (Phase), B (Phase) (Supply - 415 VAC)

Output : R (Phase), Y (Phase), B (Phase) (motor or pump connections)



Auto Switch Provided

Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable

Auto Bypass Switch provided. (In Auto mode motor automatically start when power goes and comes and in manual mode motor start by pressing start and stop button)



SPP provided

It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding gets burn.

It protect motor from phase interchange. Out of 3 phase if any phase changed, then motor rotate reverse in this case motor winding gets burn

It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same



Micro controller based design

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Two seperate display for volt and amp.



high voltage protection,

low voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)



overload protection

Adjustable overload from 0 to 30 A



Current based dry run protection provided

Adjustable dry run current from 0 to 30 A



Voltage and Current calibration facility



Short circuit protection

protection bypass facility



Cyclic timer provided with bypass facility (adjusatble from 0 second to 999 min) If user want start and stop the motor on perticuler time then user can set the on and off time of cyclic timer

Delay off timer provided with bypass facility (adjusatble from 0 second to 999 min) If user want to stop the motor after certain time then they can set the delay off timer. in this timing mode user can start the motor by pressing start button and it will auto stop based on preset delay off time.

On delay timer and off delay time provided (adjusatble from 0 second to 999 min) If user want to start the motor after certian time then they can use this timer.

Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)

Auto switch timer adjusatble from 0 second to 999 second



Input Voltage : 415 VAC

Output Voltage : 415 VAC

High accuracy in over load and dry run current

Auto and bypass mode available

User can bypass all the protection from setting

Isolated supply provided

Error messages shows on display

RESET button provided to reset unit

Start and stop button provided to start and stop motor

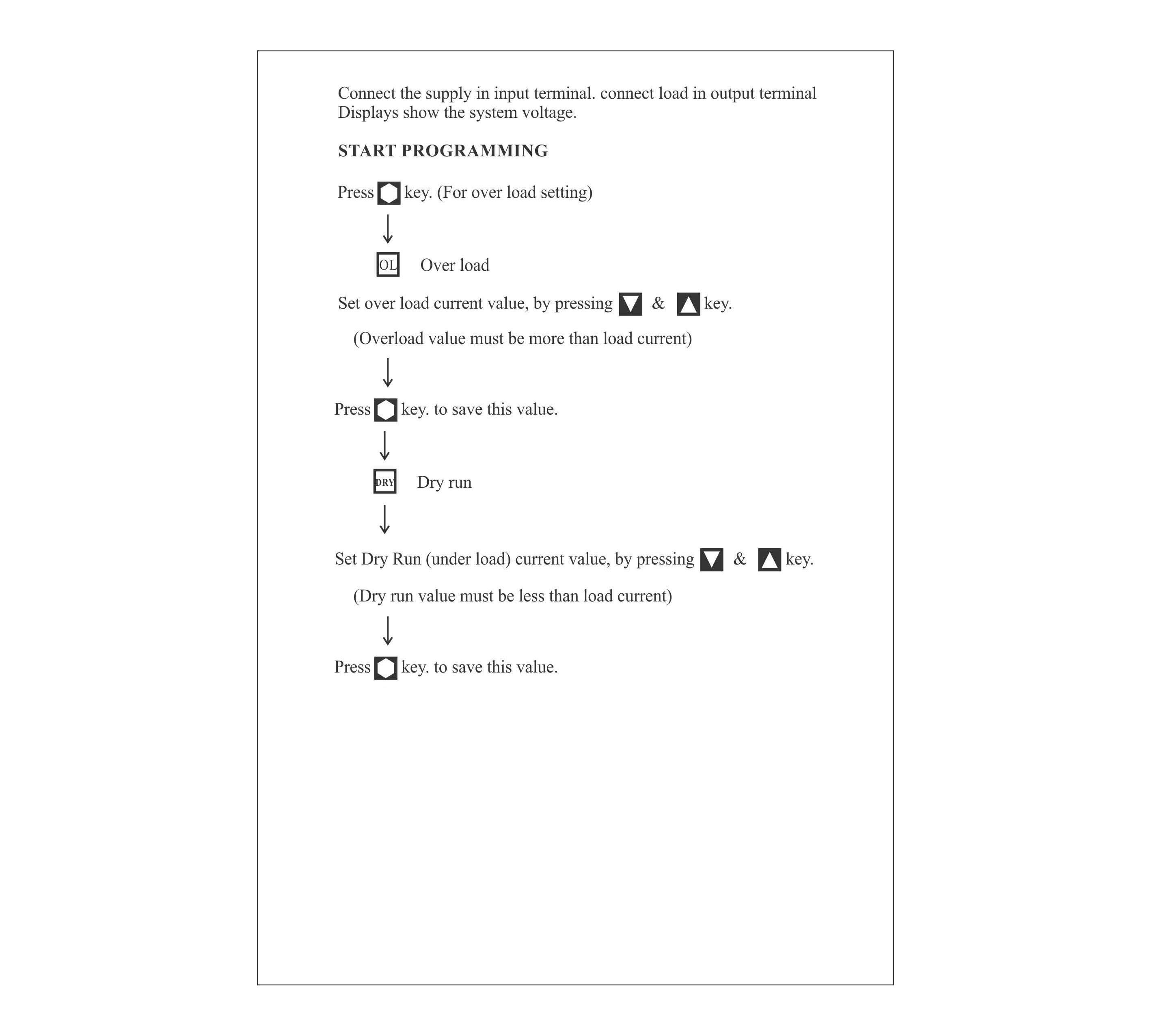

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.



Motor side current unbalance protection provided

Phase to Phase Current differents are adjustable

Phase to Phase Voltage differents are adjustable

Voltage and Current calibration facility



Suitable for motor up to 10 HP

High quality ABS Enclosure.



Working :

This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.

It has current based dry running. If the motor runs without water then it takes a lower ampere (current) then its actual current. so when the motor current is down from actual current, it stops the motor and protects the motor from dry running.

Protect motor from dry running.
