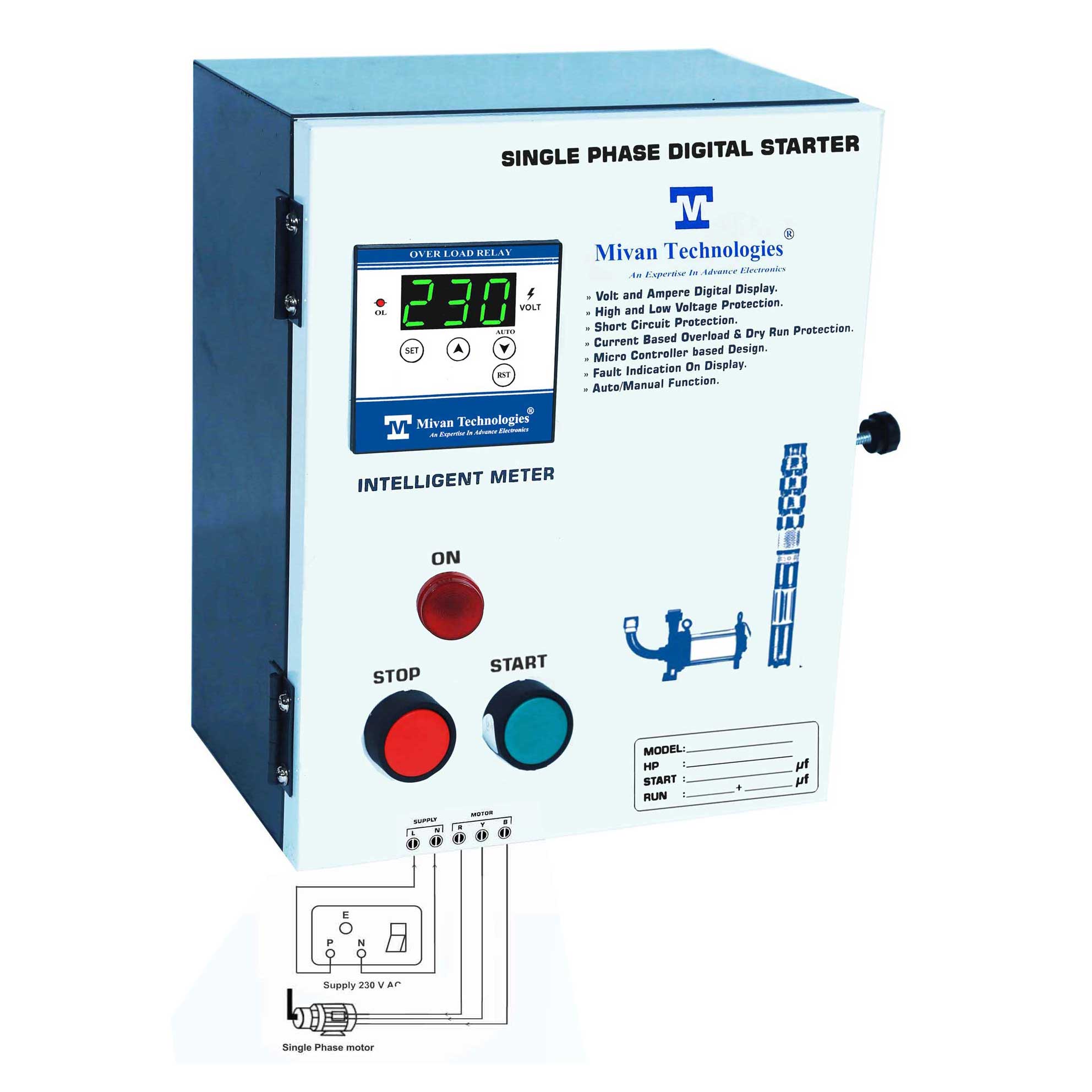

DS SR METAL Digital motor starter panel with start and run capacitor with volt and amp meter with HV LV OL DRY RUN Protection with timer suitable FOR 2 HP

2 Run Cap 36+36 MFD 1 start cap 150/2000 current based dry run protection adjustable overload and dry run current


MRP 9000
You save 7250 (80.56%)

Type: Motor Starter Single Phase

Sub Type: Digital Starter,Heavy Duty Starter

Weight: 3 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

Product Variants

100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.


Package Contain :

1 Digital starter

1 user manual with technical details.


Product Descriptions :

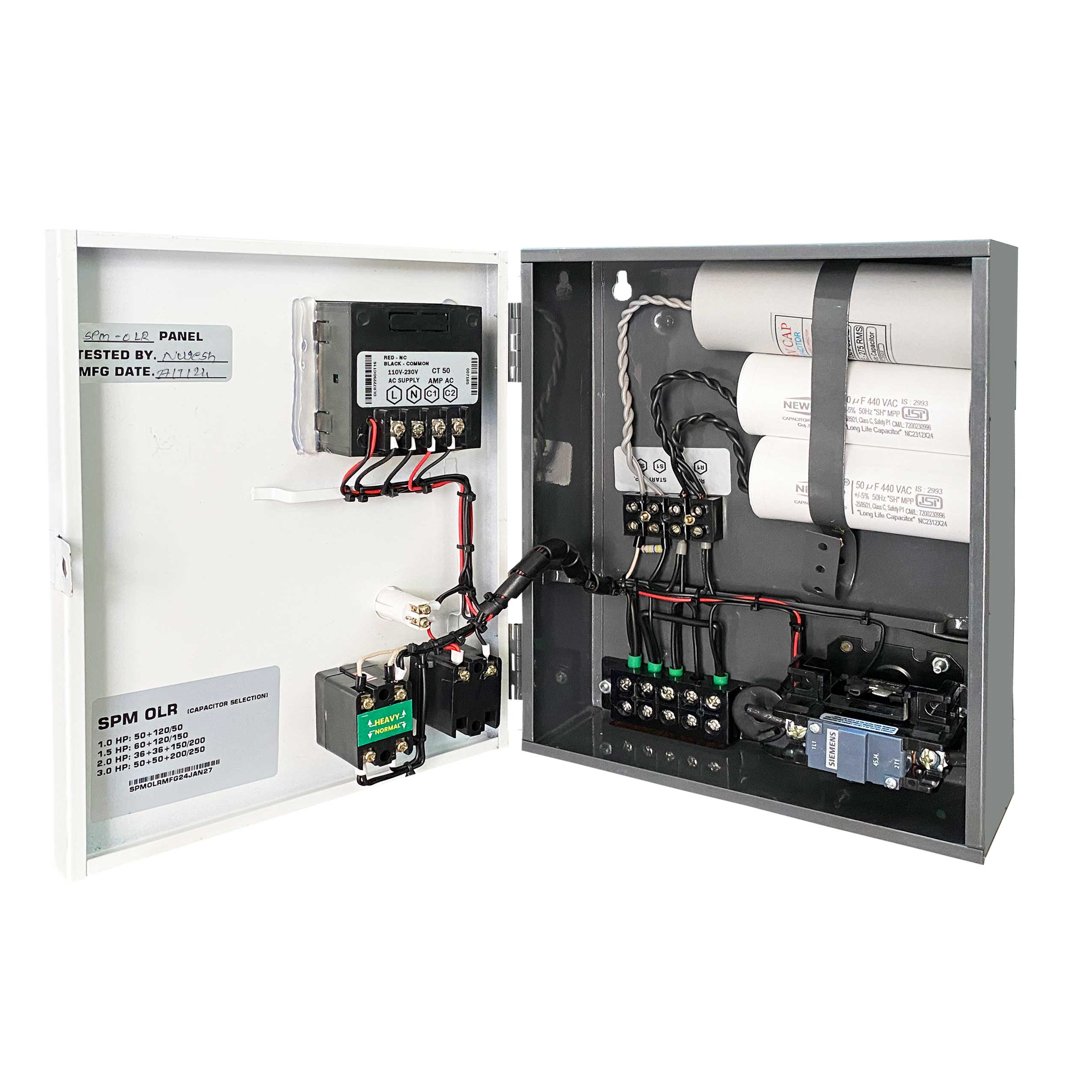

BCH Contactor provided for heavy duty load

High quality Metal Steel. enclosure provided.

Automatic overload and dry current setting key to set overload and dry current automatically based on motor's current.

This model is suitable for 2 HP motor and submersible pump

2 No Run Capacitor : 36+36 MFD

1 Start Capacitor : 150/200

Input : P (Phase), N (Neutral)

Output : R, Y, B (motor or pump connections)


Micro controller based design

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Two seperate display for volt and amp.


high voltage protection,

low voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)


overload protection

Adjustable overload from 0 to 30 A


Current based dry run protection provided

Adjustable dry run current from 0 to 30 A


Short circuit protection

protection bypass facility


Delay off timer provided with bypass facility (adjusatble from 0 second to 999 min)

If user want to stop the motor after certain time then they can set the delay off timer. in this timing mode user can start the motor by pressing start button and it will auto stop based on preset delay off time.


Input Voltage : 230 VAC

Output Voltage : 230 VAC

High accuracy in over load and dry run current

Auto and bypass mode available

User can bypass all the protection from setting

Isolated supply provided

Error messages shows on display

RESET button provided to reset unit

High quality Metal Steel enclosure provided.

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.


Working :

This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.

It has current based dry running. If the motor runs without water then it takes a lower ampere (current) then its actual current. so when the motor current is down from actual current, it stops the motor and protects the motor from dry running.

Protect motor from dry running.
