Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

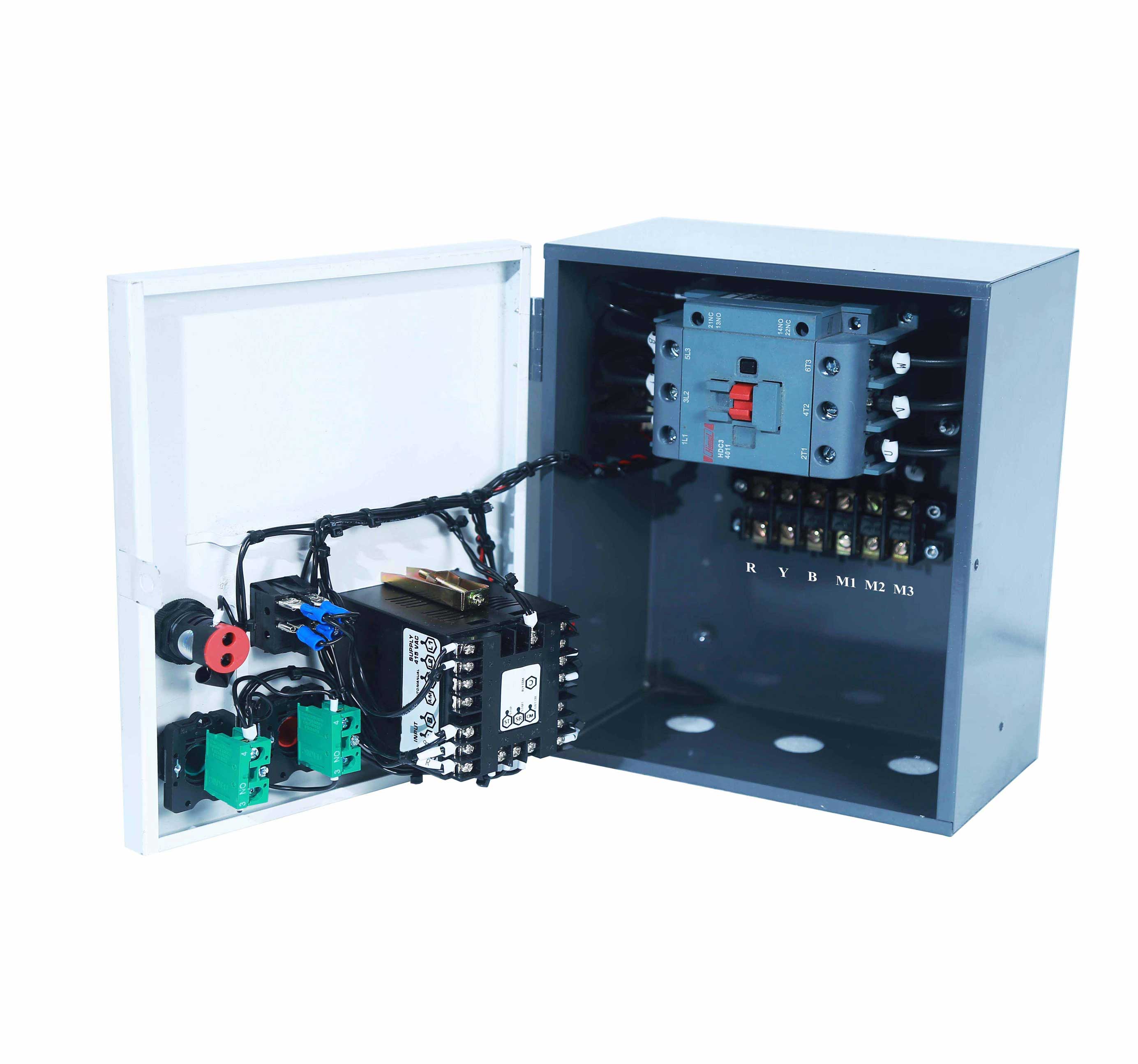

1 Digital DOL Starter with water level controller

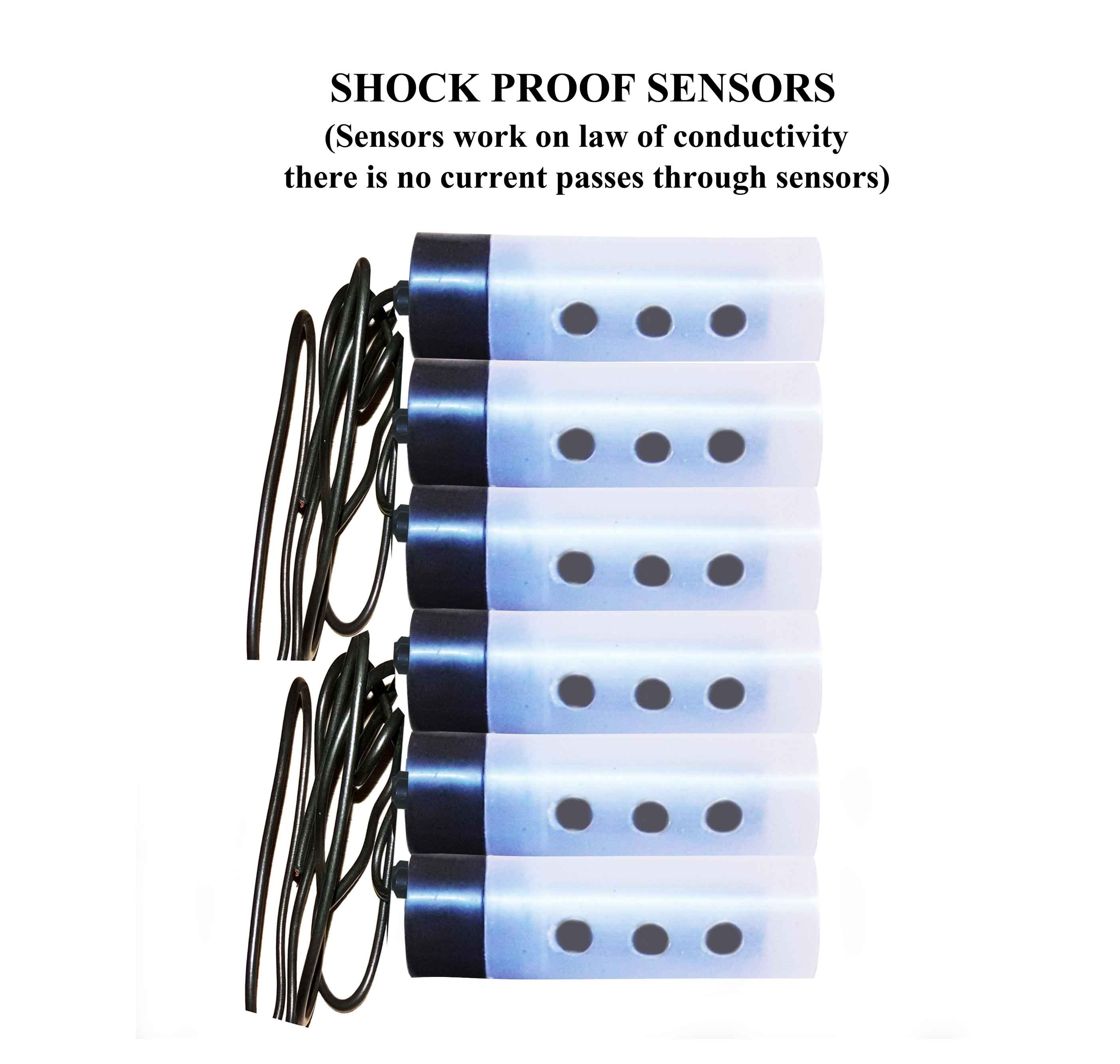

6 S.S sensors with 1.5 meter wire

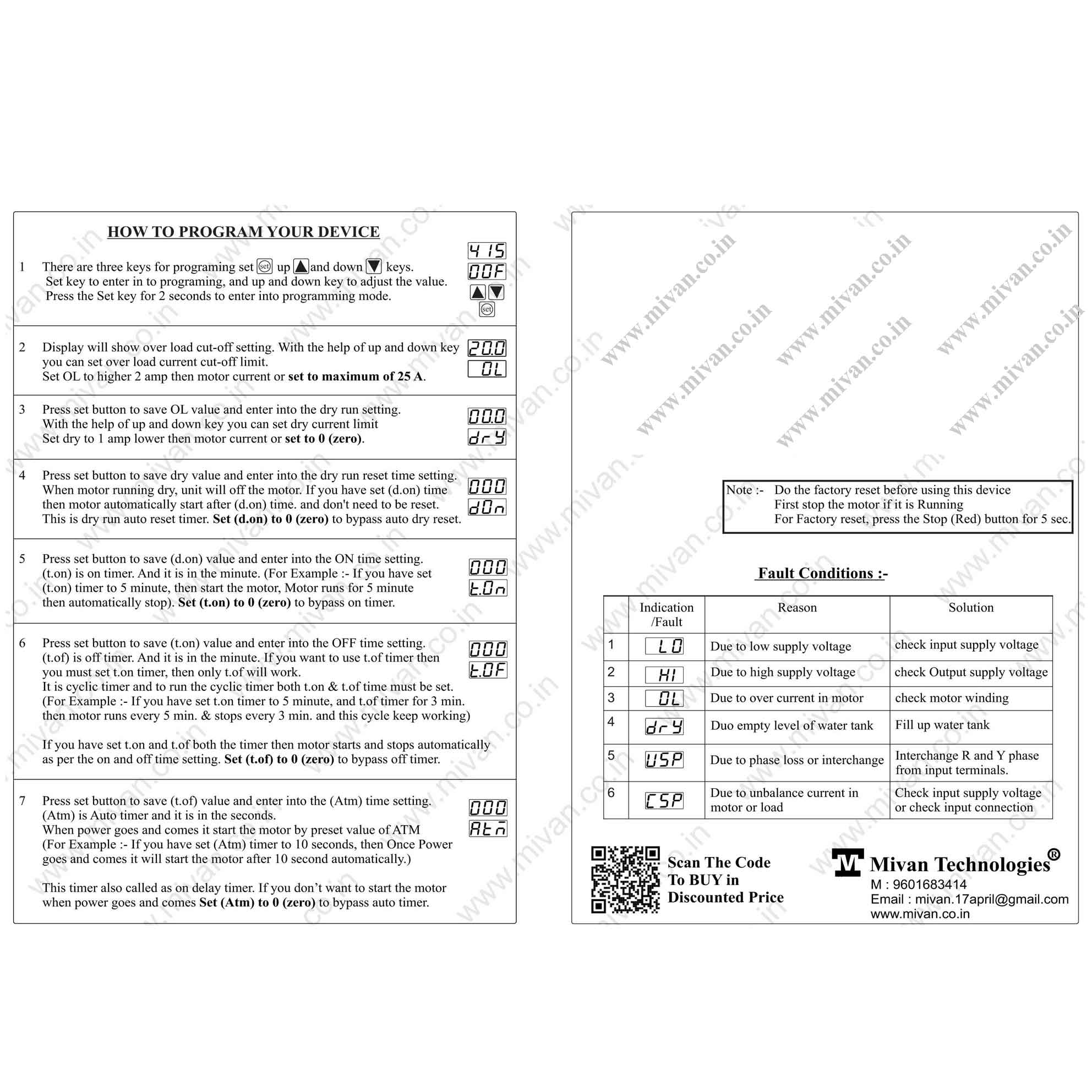

1 user manual .

Product Descriptions :

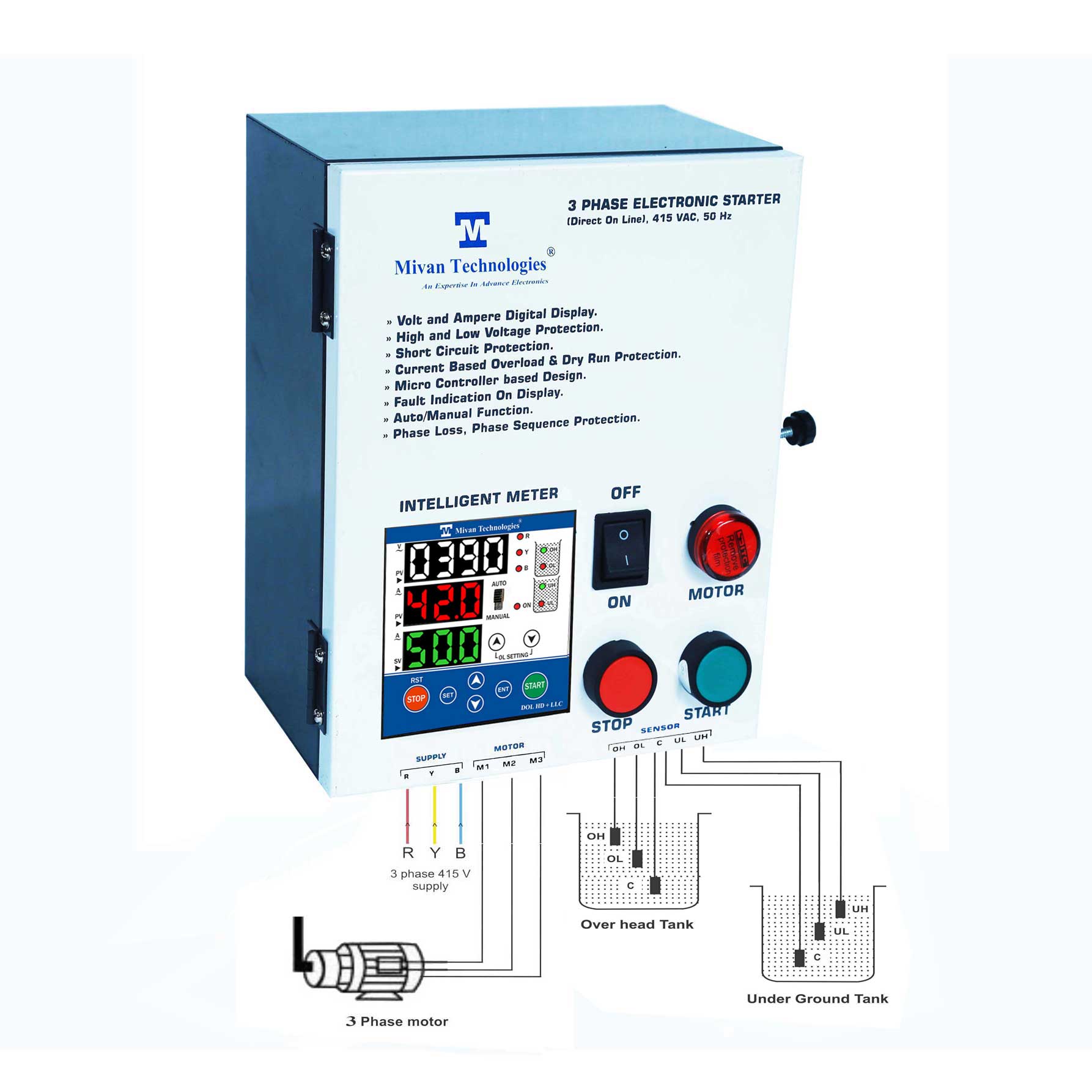

DOL HD 3D LLC 65 suitable for motor up to 30 HP.

Contactor rating : 65 A 3 pole

3 CT provided that measure the current of all 3 phase

Motor side current unbalance protection provided

it shows the voltage of all 3 phases seperately,

Voltage of 3 phases scrolling one by one in 1st display,

Phase indication (R,Y,B) provided.

Auto and bypass switch provided

3 display provided

1st display shows voltage, 2nd display shows current

3rd display shows Overload triping value and this value can be adjustable by up and down key. That up and down key provided just right side of 3rd display.

In this model it is very easy to set Overload value by up and down key.

Input : R (Phase), Y (Phase), B (Phase) (Supply - 415 VAC)

Output : R (Phase), Y (Phase), B (Phase) (motor or pump connections)

Auto Switch Provided

Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable

Auto Bypass Switch provided. (In Auto mode motor automatically start oce power goes and comes and in manual mode motor start by pressing start and stop button)

SPP provided

It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding gets burn.

It protect motor from phase interchange. Out of 3 phase if any phase changed, then motor rotate reverse in this case motor winding gets burn

It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same

Micro controller based design

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Two seperate display for volt and amp.

high voltage protection,

low voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)

overload protection

Adjustable overload from 0 to 100 A

Current based dry run protection provided

It has current based dry running. If motor runs without water then it take lower current then its actual current. so when motor current get down from its actual current, it stop motor and protect motor from dry running.

Adjustable dry run current from 0 to 100 A

Dry run Auto Reset timer provided with with bypass facility

Automatic Overload and Dry run current adjustable

When motor start, press the start button for 5 seconds, This unit will set overload and dry run current automatically

Voltage and Current calibration facility

Short circuit protection

protection bypass facility

Cyclic timer provided with bypass facility (adju
