Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 Annunciator

1 User manual with technical details

Product Descriptions :

Isolated channels and push-buttons input.

Any ISA standard sequence - site selectable.

NO/NC channel selection can be configured on site.

Response time and flash rate are selectable.

Mounting : Flush / Panel type.

Panel cut out : 136 x 136 mm.

Enclosure : Noryl (Fire retardant material).

Aux. Supply : 85-270 VAC/DC

Sequence Test facility.

Super bright LED for visual display.

Compact & rugged construction.

Aesthetic look.

Universal power supply.

Low power requirement.

High noise immunity.

Technical specifictions :

Model                           : MA-116

No of Channels             : 16

Visual display (H x W)   : 25 mm x 20 mm

Facia Inscription            : Printed on photo film (positive or negative or mix).

Sequence                      : Standard ISA sequence

Mechanical Specifications:

Overall Dimensions ( H x W x D ): 144 x 144 x 125 mm

Panel cut-out ( H x W )   : 136 x 136 mm.

Window Configuration   : 4 cols x 4 rows

Mounting                        :  Flush / panel mounting (projection : max 15 mm)

Fixing                             : By clamps.

Enclosure                       :  Fire Retardant Engineering Plastic

Electrical Specifications:

Window Illumination       :  Through bright RED LEDs.

Supply voltage               :  90-270 VAC/DC (Optionally 20-50 VAC/DC)

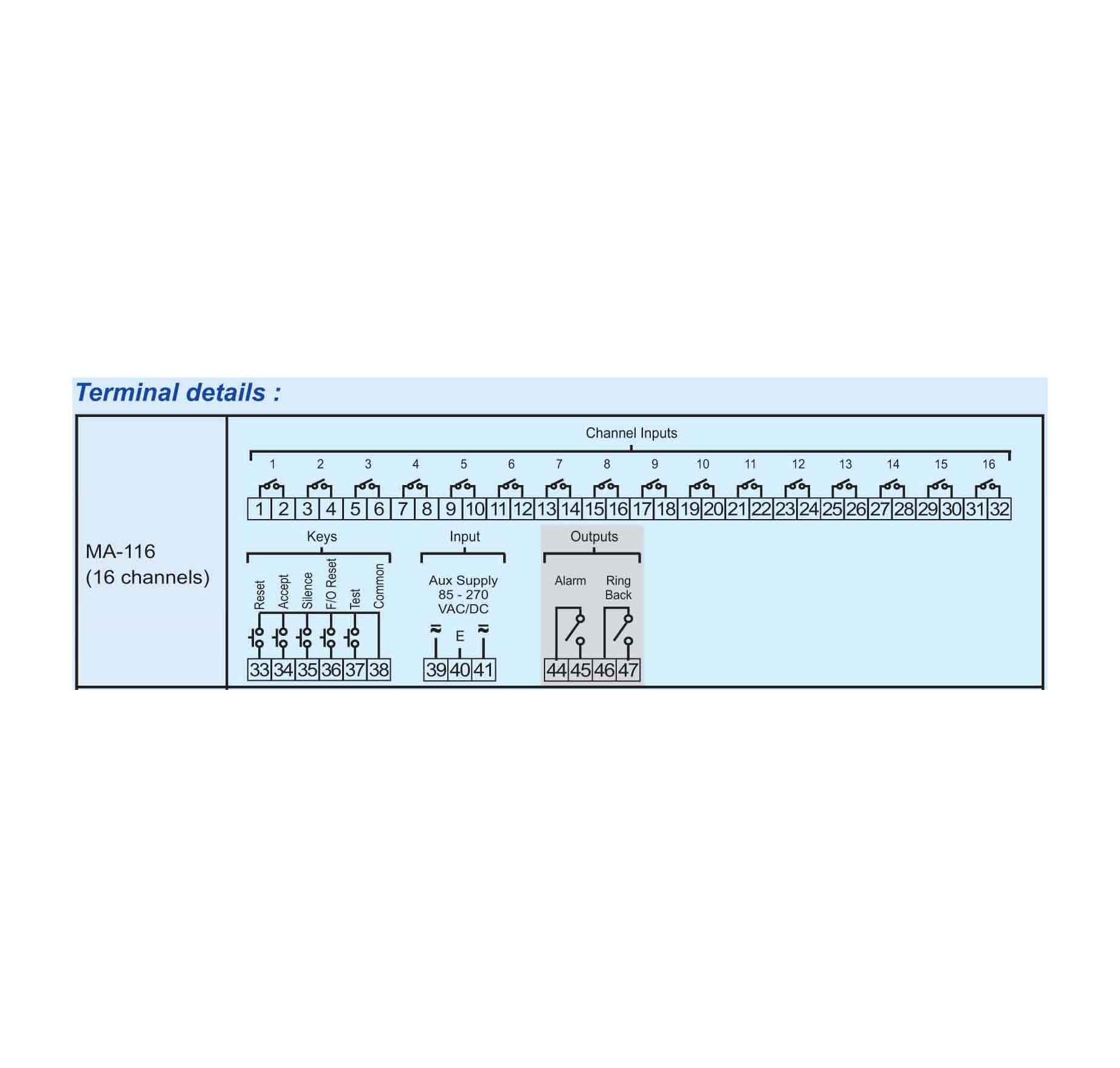

Fault Initiation                :  Through potential-free field contacts. NO / NC site selectable.

Push Buttons                 :  Accept, Silence, F/O reset, Reset & Test are available  n front as well as  facility to connect external push to close (momentary) push-buttons.

Hooter Contacts            :  One NO for alarm & one NO for ring-back

Contact Rating              :  For resistive load, 5A @ 230VAC & 0.5A @ 125VDC

                                          For inductive load, 5A @ 230VAC (cos¢ = 0.4) & 0.3A@125VDC (L/R=7msec)

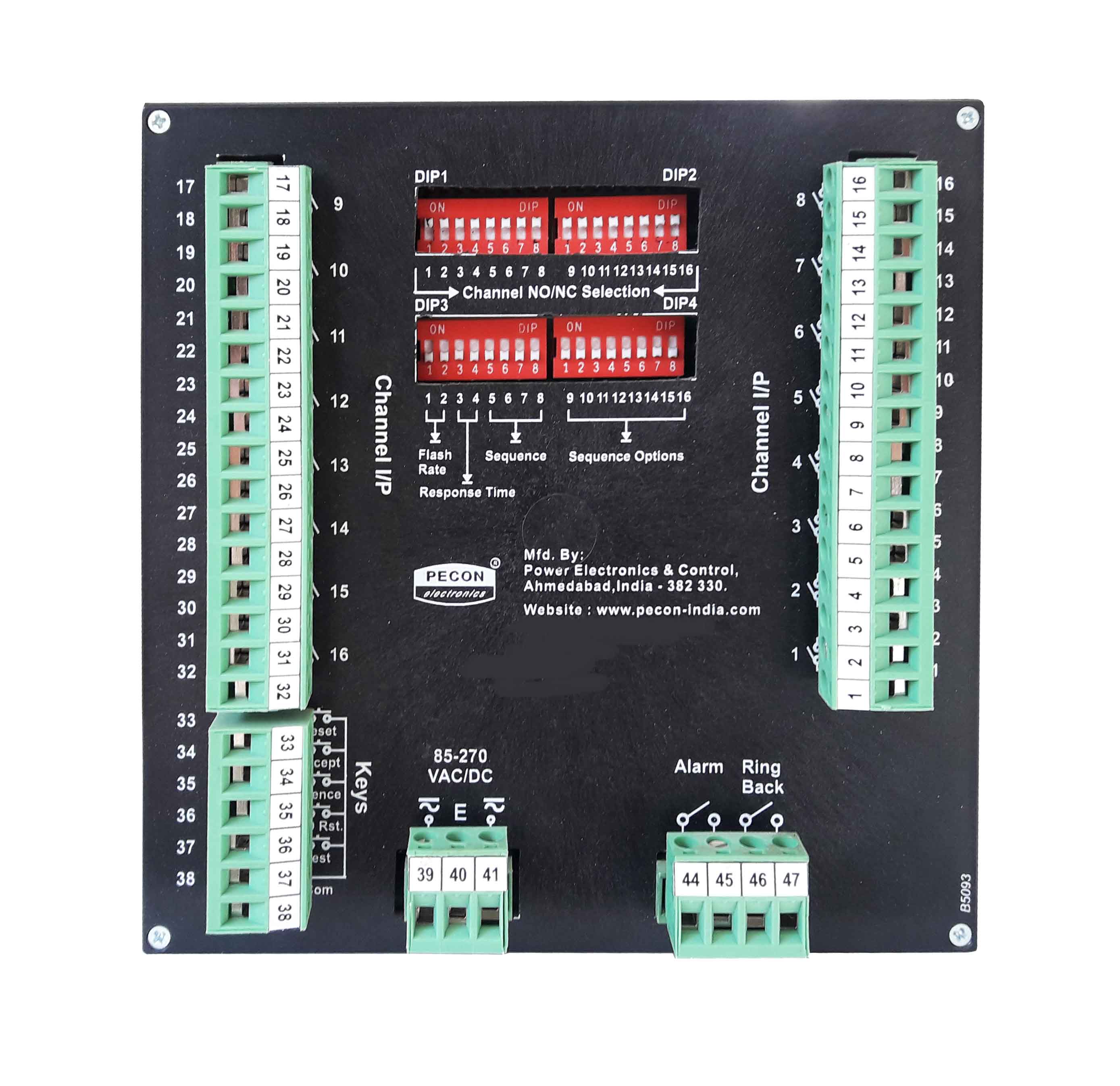

Terminals / connectors   :  Combicon Connectors. Suitable for 0.2 - 2.5 mm2 conductors.

Performance:

Response time              :  30 / 60 / 120 / 240 (±10msecs).

Discrimination time        :  10 mescs (between channels for detecting fault)

Flash rate                      :  60 / 120 (± 5) flashes per minute. Slow flash rate is 1/3 of flash rate set.

Surge withstand capability : 5 KV as per IS-8686

Immunity                       :  As per IS-8686

Insulation                      :  Insulation resistance shall be > 100 Mohm, when 500 V DC is applied between each terminal in turn and enclosure.
Annunciator shall withstand 2.0 KV rms at 50 Hz. for one minute, applied between all relay & power supply terminals shorted together and enclosure.

Power consumption    :  Max. 10VA with all LEDs and relays on.

Operating conditions   :  Temp.   : -20 to 50 oC     R.H.      : 95% Max non-condensing.
