3 phase UDT HD Universal Digital timer for 3 phase motor ON delay OFF delay and CYCLIC timer with HV LV OL and DRY run protection

current based dry run protection Adjustable over load and dry run current


MRP 5500
You save 4010 (72.91%)

Type: Heavy Duty series 2 years warranty

Sub Type: Digital Timer 3 Phase

Weight: 0.5 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 2 Year Manufacturer.

Warranty Service : Repair or Replacement.


Package Contain :

1 Digital Timer

1 user manual with technical details

1 Warranty card of 2 years warranty

4 Screw and Hole plugs

1 Drill template


Product Descriptions :

Micro controller based design

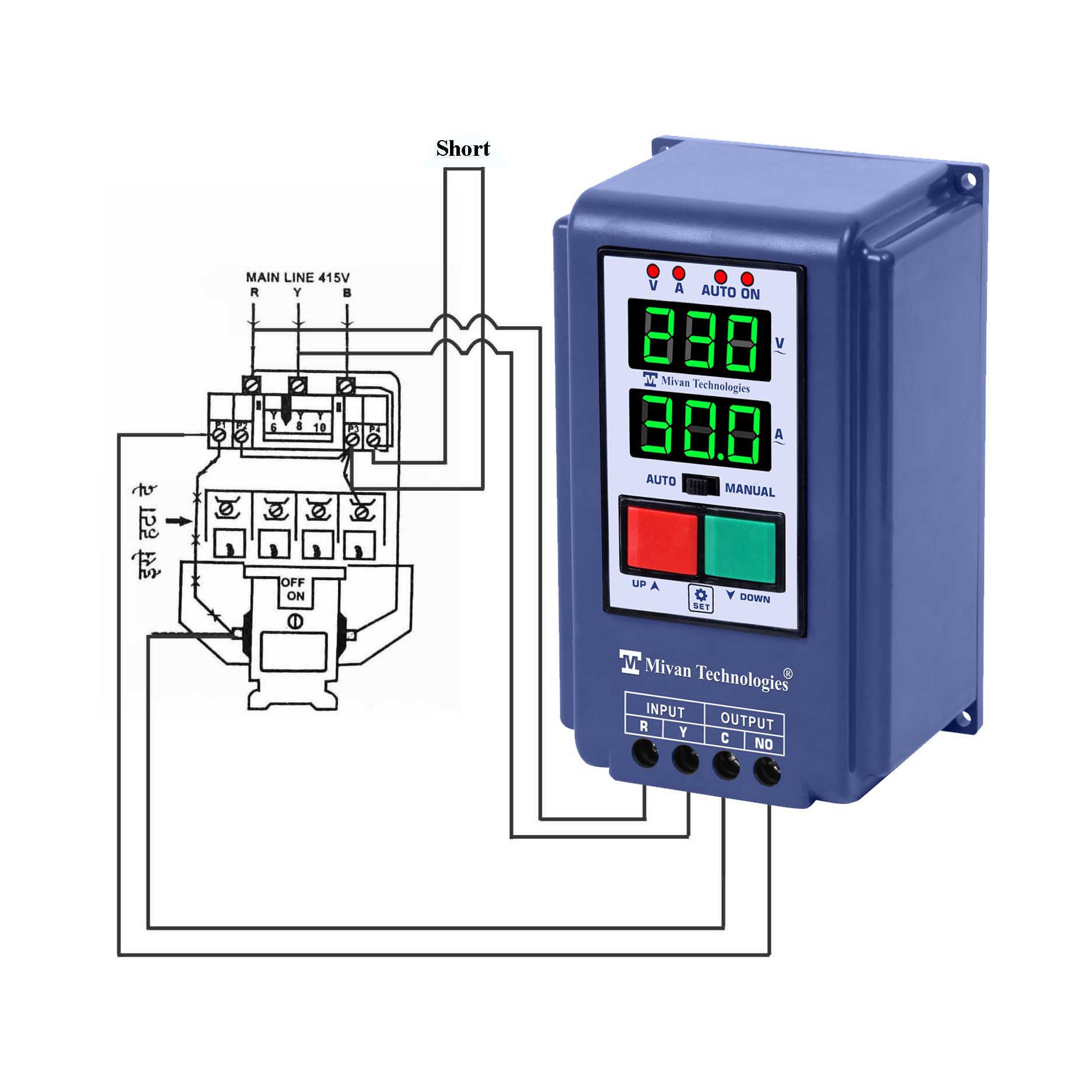

This timer suitable to any 3 phase motor starter. Also suitable to any hp motor as no load comes on our controller, load passes through the starters.

Cyclic timer provided with bypass facility (adjusatble from 0 second to 999 min)

Delay timer provided with bypass facility (adjusatble from 0 second to 999 min)

On delay timer and off delay time provided (adjusatble from 0 second to 999 min)

Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)

Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Two seperate display for volt and amp.

high voltage protection,

low voltage protection,

Short circuit protection

overload protection

protection bypass facility

Adjustable overload from 0 to 30 A

Current based dry run protection provided

Adjustable dry run current from 0 to 30 A

Adjustable voltage limit (High and low both voltage protection limit adjustable)

Input Voltage : 415 VAC

High accuracy in over load and dry run current

Auto and bypass mode available

User can bypass all the protection from setting

Isolated supply provided

Error messages shows on display

RESET button provided to reset unit

High quality ABS. enclosure provided.

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.
