Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 2 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 Electronic DOL Starter.

1 user manual with technical details.

1 Warranty card of 2 years warranty

4 Screw and Hole plugs

1 Drill template

Product Descriptions :

Electronic motor starter for 3 phase motor and submersible pump

Suitable for motor up to 10 HP

Auto Bypass Switch provided.

Relay rating : 40 A 3 pole

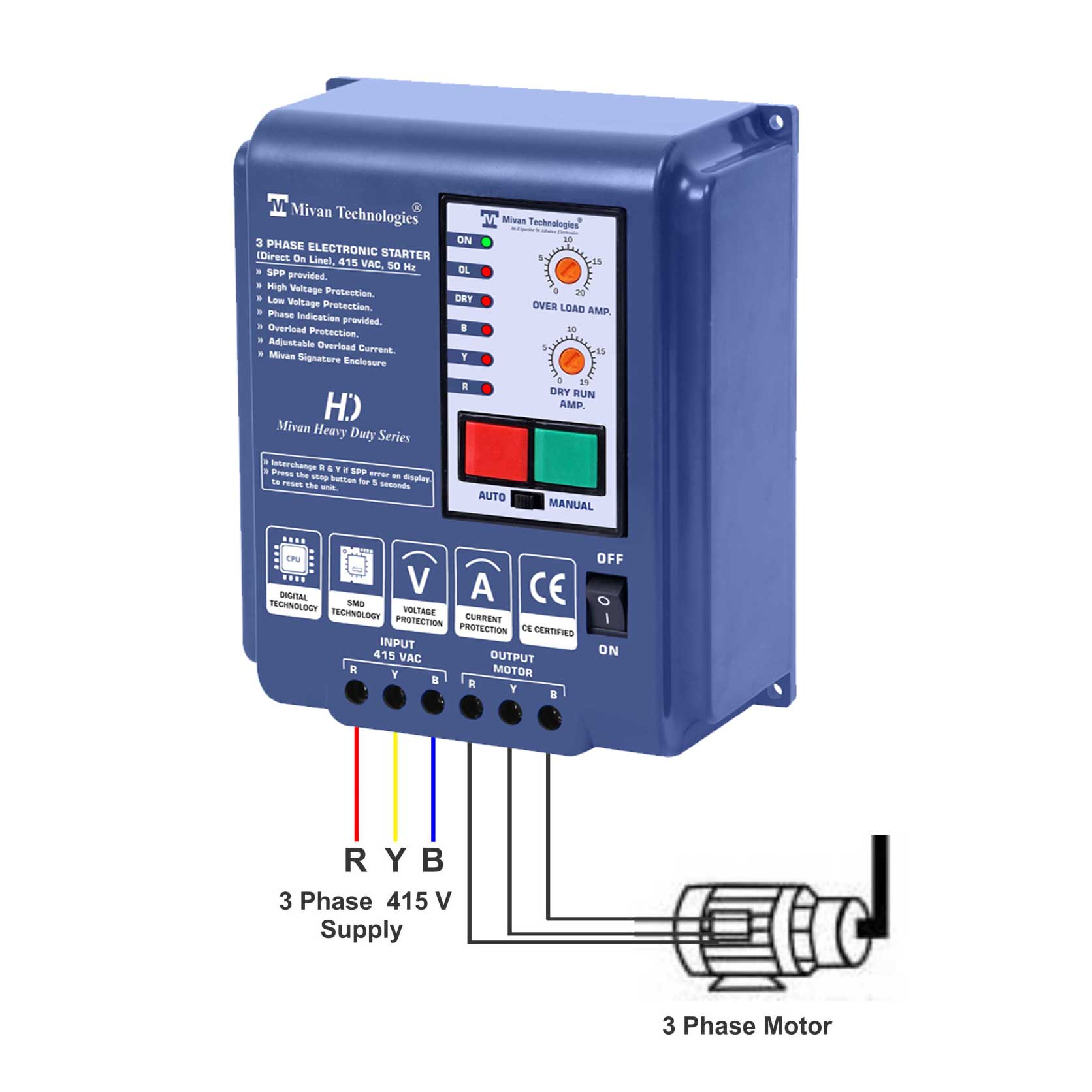

Input : R (Phase), Y (Phase), B (Phase) (Supply - 415 VAC)

Output : R (Phase), Y (Phase), B (Phase) (motor or pump connections)

SPP provided

It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding gets burn.

It protect motor from phase interchange. Out of 3 phase if any phase changed, then motor rotate reverse in this case motor winding gets burn

It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same

Micro controller based design

high voltage protection,

low voltage protection,

overload protection

Adjustable overload from 1 to 20 A

Current based dry run protection provided

Adjustable dry run current from 1 to 20 A

Short circuit protection

protection bypass facility

Input Voltage : 415 VAC

Output Voltage : 415 VAC

High accuracy in over load and dry run current

Auto and bypass mode available

User can bypass all the protection from setting

Isolated supply provided

Error messages shows on display

RESET button provided to reset unit

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

High quality ABS Enclosure.

Working :

This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.

It has current based dry running. If the motor runs without water then it takes a lower ampere (current) then its actual current. so when the motor current is down from actual current, it stops the motor and protects the motor from dry running.

Protect motor from dry running.
