SDP301T 3 phase water level controller with DOL DIGITAL starter suitable for motor upto 7.5 HP

Digital display for voltage and ampere high low voltage protection overload protection with spp


MRP 8200
You save 5310 (64.76%)

Type: Water Level Controller

Sub Type: Three phase

Weight: 2.00 KG

Manufacturer: Mivan Technologies

Tax: 18.00 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.


Package Contain :

1 Digital Starter.

1 Water level cntroller

6 S.S sensors

1 user manual


Working :

High quality ABS Enclosure.

Microcontroller based water level controller, all signal will pass in sensor through AC filter circuit that provides filter signal to sensor, that improve life of sensor,

A.C signal passes on sensor side so never get rusting problem

Working : This model automatically switch ON and switch OFF Motor.

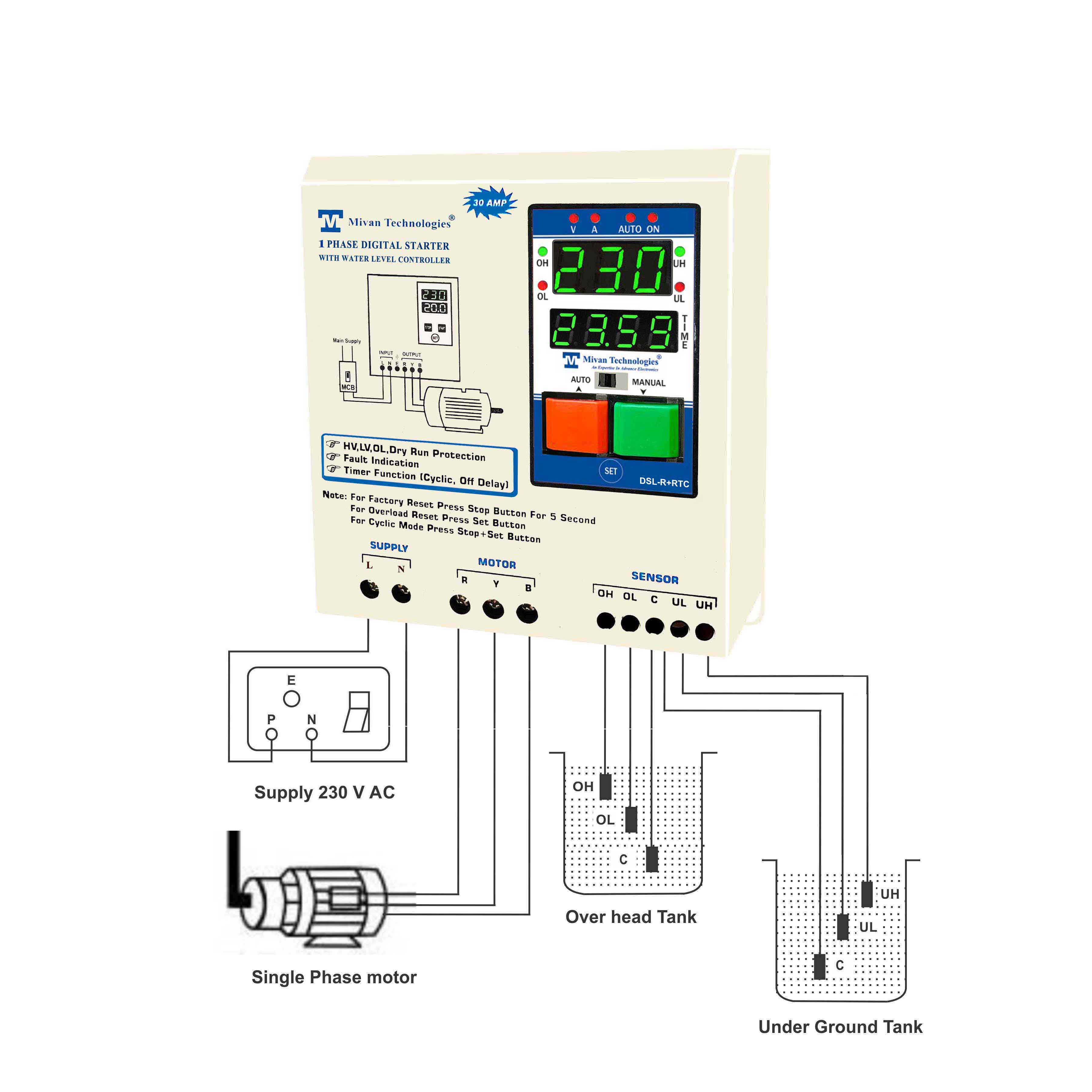

When water level of overhead tank becomes low means water get down from middle sensor and water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.


This model have dry run protection so it only start motor if water present in underground tank or sump.

Suitable for 0.1 HP to 7.5 HP Motor, Protect motor from dry running.

Motor ON OFF LED indication provided.

Water Level indication provided for both tank.

Supply voltage : 415 V AC,

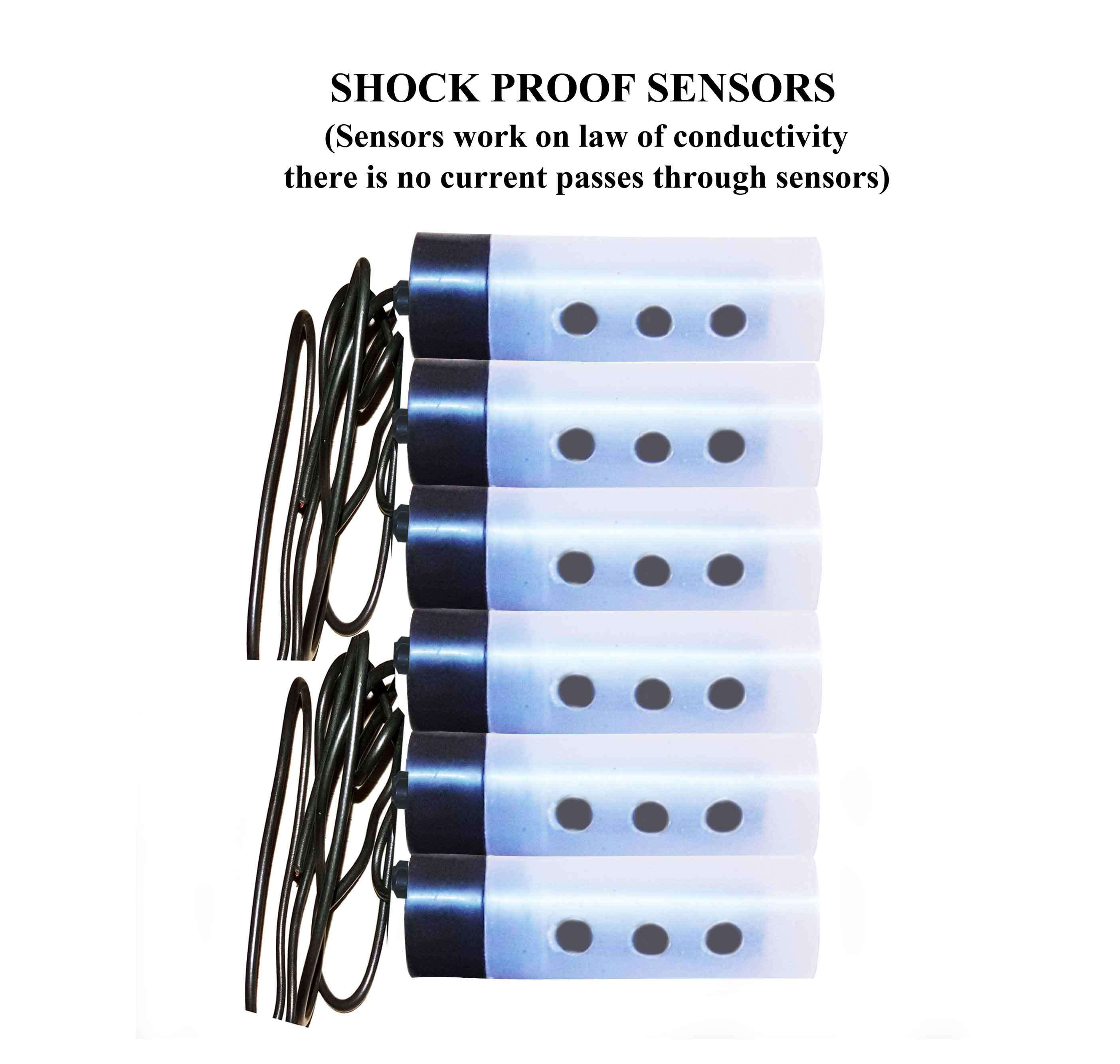

Sensing element : 304 S.S sensors it is free from oxidation, long life. Any conducting wire can be use for sensor.

Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. No additional wiring require to operate motor manually.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.


Product Descriptions :

Digital DOL motor starter for 3 phase motor and submersible pump

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Suitable for motor up to 7.5 HP

high voltage protection,

low voltage protection,

Short circuit protection

overload protection

Adjustable overload from 4 A to 20 A

Current based dry run protection provided

Adjustable dry run current

RESET button provided to reset unit

Start and stop button provided

high voltage indication

low voltage indication

overload indication

Power indication provided

Input Voltage : 415 VAC

Output Voltage : 415 VAC

High accuracy in over load and dry run current

It has current based dry running. If motor runs without water then it take lower current then its actual current. so when motor current get down from its actual current, it stop motor and protect motor from dry running.


It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding burn.

It protect motor from phase interchange. Out of 3 phase if any phase change then motor rotate reverse in this case motor winding burn

It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same

Auto and bypass mode available

In Auto mode it will automatically start motor when no fault detect and automatically turn off if any fault detect
