DSL R Digital water level controller and starter panel with HV LV OL DRY protection with cyclic timer and delay timer

Run Cap 50 MFD current based dry run protection Adjustable over load and dry run current

 1890

MRP 8500
You save 6610 (77.76%)


Type: Water Level Controller Single Phase

Sub Type: Digital,With Motor Starter

Weight: 1.5 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

Product Variants




100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.



Package Contain :

1 Water Level Controller Unit.

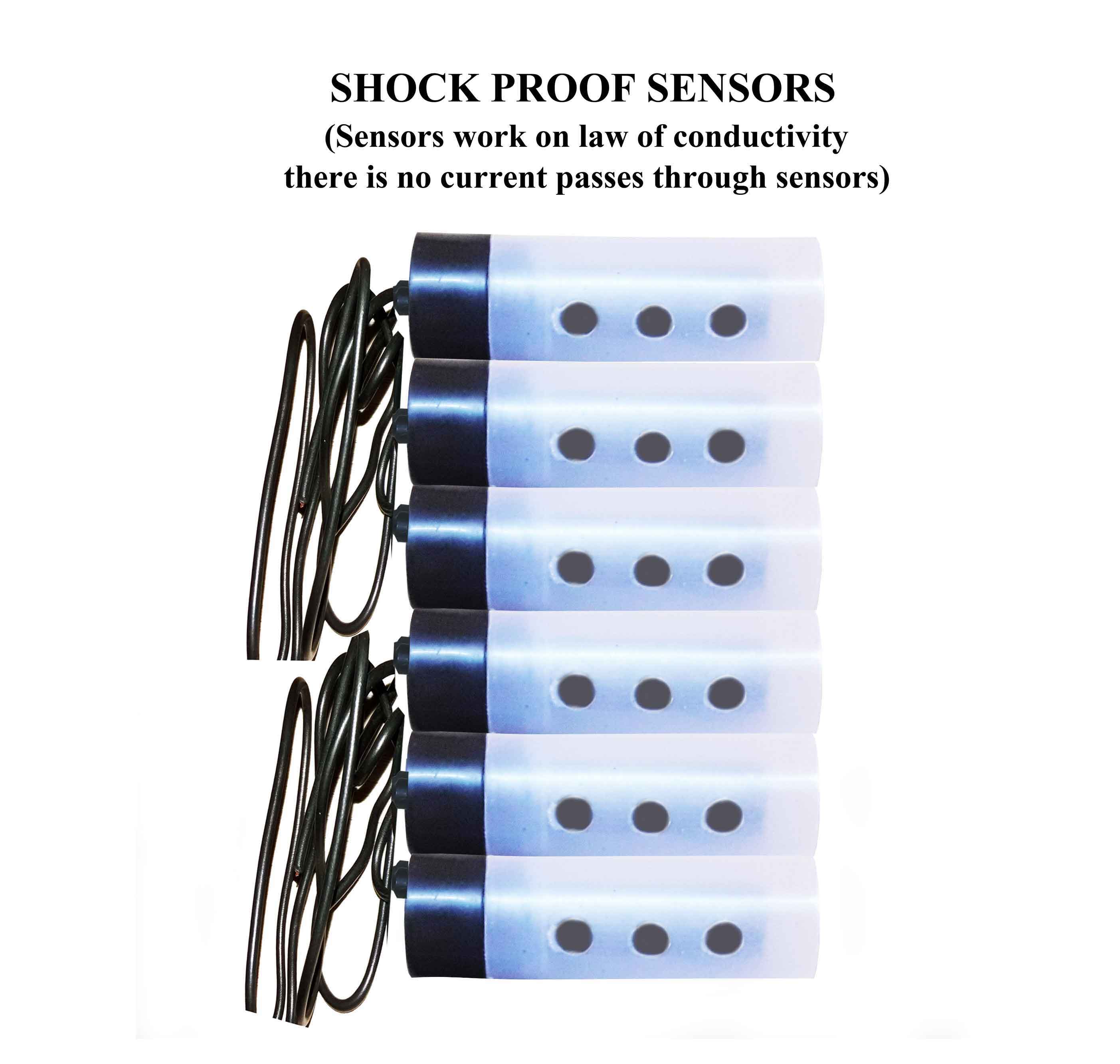

6 S.S Sensors with 1.5 meter wire.

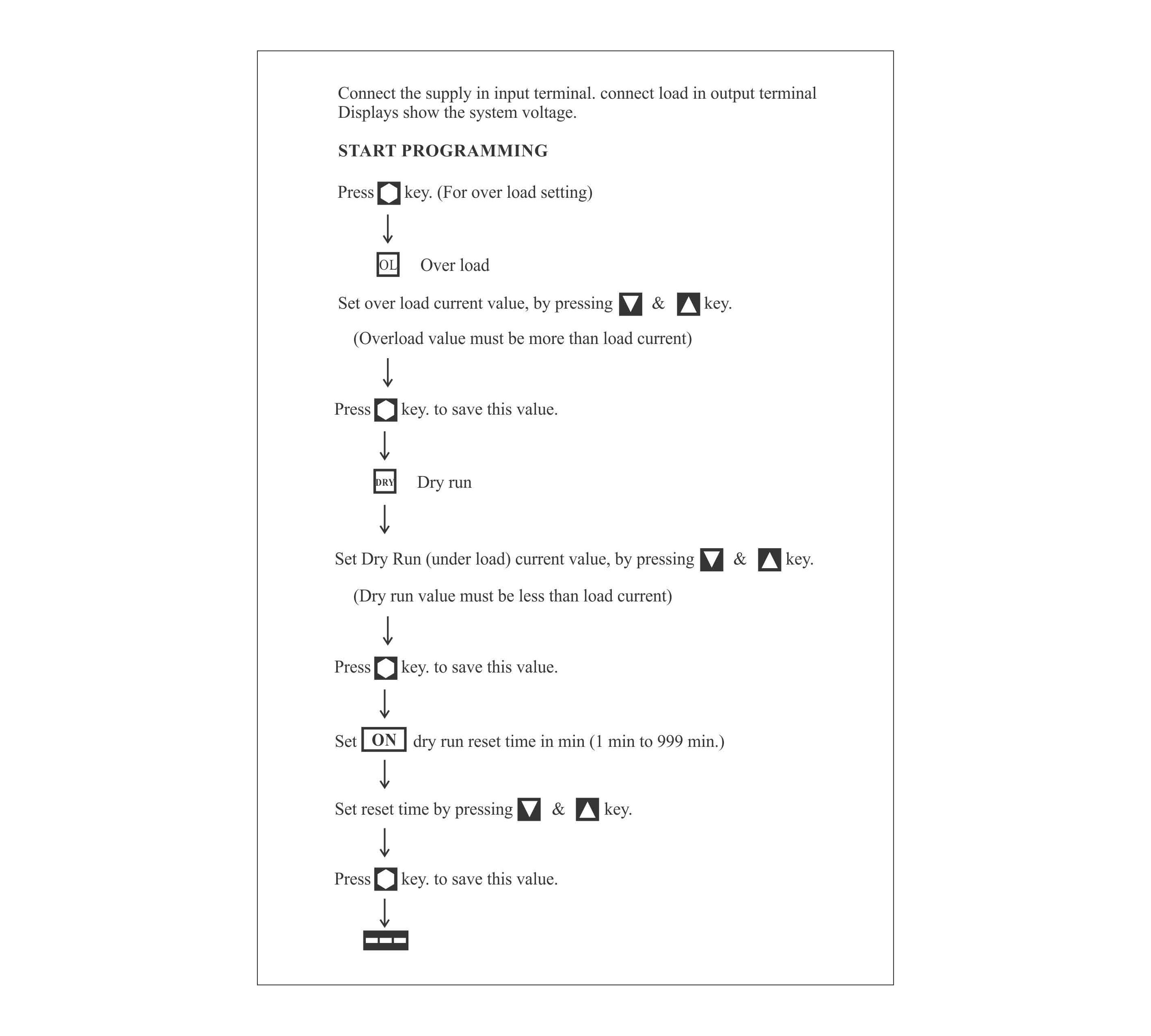

1 user manual with technical details.



Product Descriptions :

DSL R is the combination of a digital water level controller and motor control panel (motor starter).

This model is suitable for motor up to 1.5 HP

Run Cap : 50 MFD

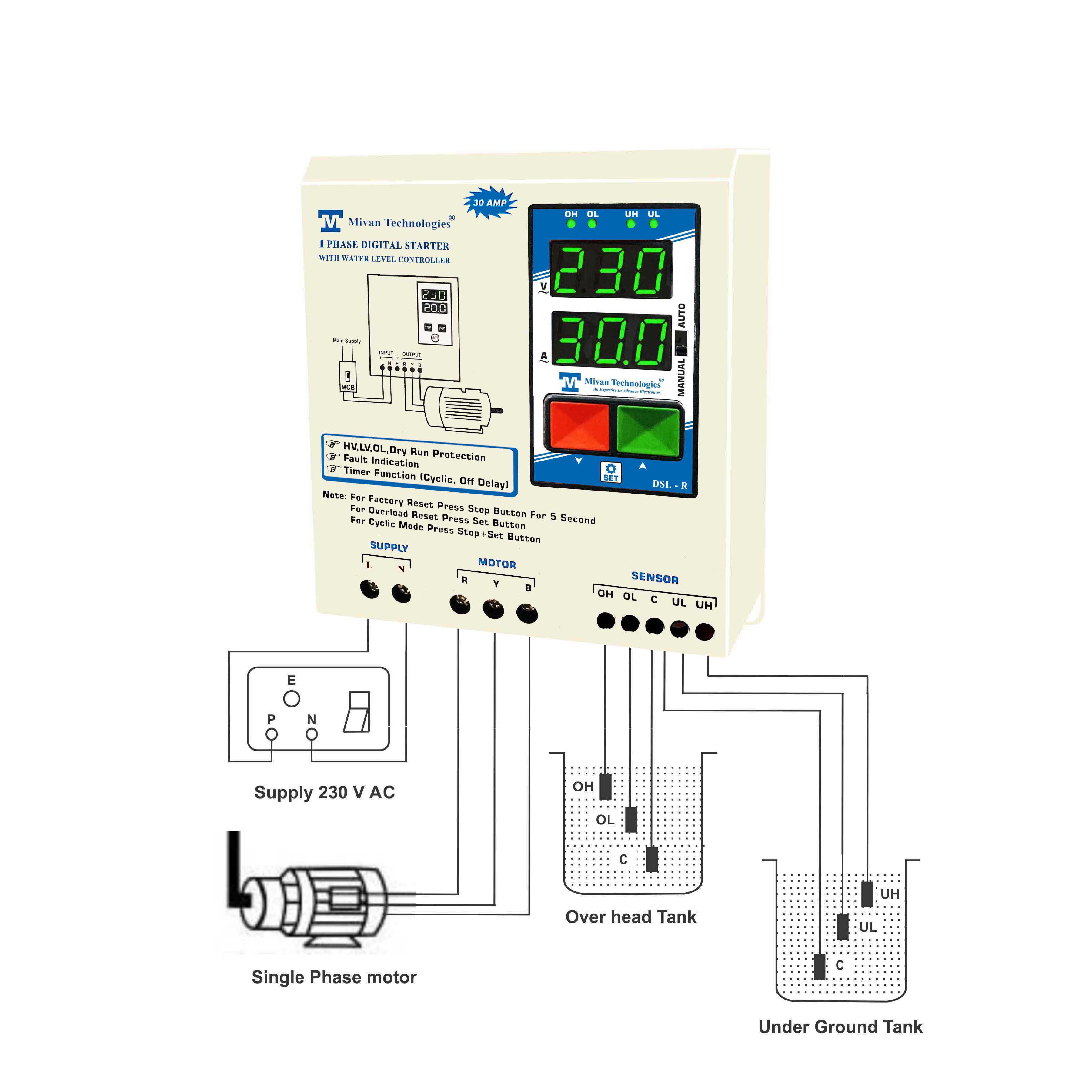

Input : P (Phase), N (Neutral) (sup 220-270 VAC)

Output : R, Y, B (motor or pump connections)

Microcontroller based Digital Water Level Controller.

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Overload Protection,

High & Low Voltage protection,

Current based dry run protection,



Adjustable overload.

Adjustable Dry run current.

Adjustable high low voltage limit.



Cyclic timer provided with bypass facility

Delay timer provided with bypass facility

Auto swtich (when power goes and comes it start automatically) provided with bypass facility

Dry run Auto Reset timer provided with with bypass facility



Water level indications for both tanks.

Water level controller and water level indicator for overhead and underground tank.

Suitable for the motor up to 1.5 HP

protection bypass facility

Error massages shows on display

RESET button provided to reset unit

High accuracy in over load and dry run current



Working :

This model automatically switches ON and OFF the Motor.

When the water level of the overhead tank becomes low means water gets down from the middle sensor and if water is present in the underground tank or sump, the motor gets started automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.

AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.

This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.

It has current based dry running. If the motor runs without water then it takes lower ampere (current) then actual current. so when the motor current gets down from actual current, it stops the motor and protects the motor from dry running.

Sensing element : S.S sensor, it is free from oxidation, long life. Any conducting wire can be used for sensor.

All signals passes in sensors through the AC filter circuit that improves the life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Auto and Manual mode switch available. In auto mode the motor starts and stops automatically. In manual mode the user can start and stop the motor by pressing the start and stop button of the controller. No additional wiring is required to operate the motor manually.

High quality ABS. enclosure provided.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.
