Water level controller for single phase push button type starter panel fully automatic with 6 sensors LLC 2SR

with dry run protection and water level indications for up and down tank

 1390

MRP 8200
You save 6810 (83.05%)


Type: Water Level Controller Single Phase

Sub Type: Analog,For Push Button starter

Weight: 1.5 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

Product Variants




100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.



Package Contain :

1 Water Level Controller Unit.

6 S S Sensors with 1.5 meter wire

1 user manual with technical details.



Product Descriptions :

High quality A.B.S. Enclosure.

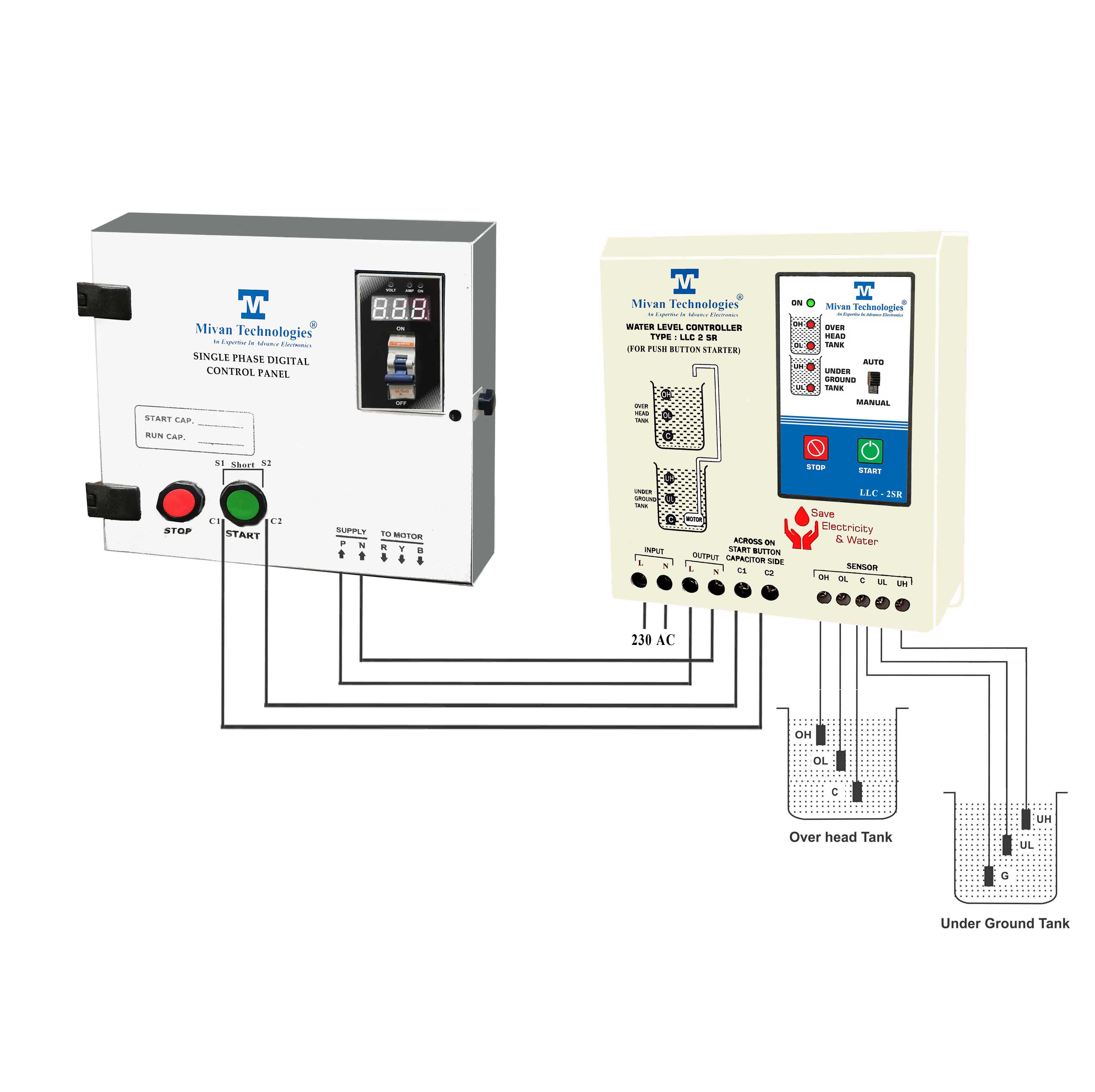

Working : THIS MODEL IS SUITABLE TO SINGLE PHASE PUSH BUTTON TYPE STARTER PANEL. This water level controller is suitable for panels who have one green button to start the motor, and one red button to stop the motor.

This model automatically switches ON and switches OFF Motor.

When the water level of the overhead tank becomes low means water gets down from the middle sensor and water is present in the underground tank or sump, the motor gets started automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.

AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.

This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.

Suitable to 0.1 HP to 5.0 HP Motor.

Relay : 2 number 40 A power relay provided

Motor ON OFF LED indication provided.

Water Level indication provided for both tanks.

Supply voltage : 230 V AC,

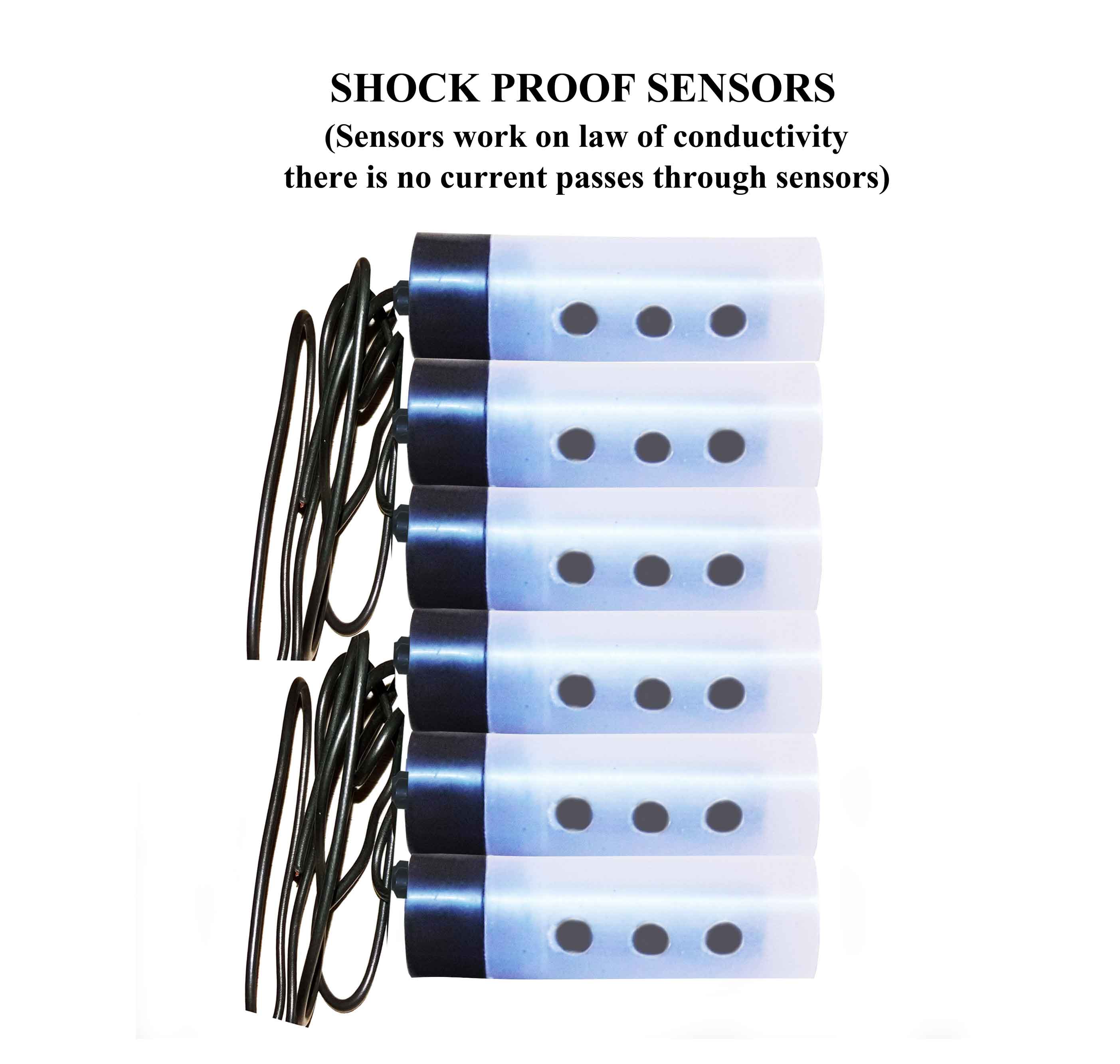

Sensing element : S. S. sensor, it is free from oxidation, long life. Any conducting wire can be used for sensor.

Auto and Manual mode switch available. In auto mode the motor starts and stops automatically. In manual mode the user can start and stop the motor by pressing the start and stop button of the controller. No additional wiring is required to operate the motor manually.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.

All signals passes in sensors through the AC filter circuit that improves the  life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design
