Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 Water Level Controller Unit including starter.

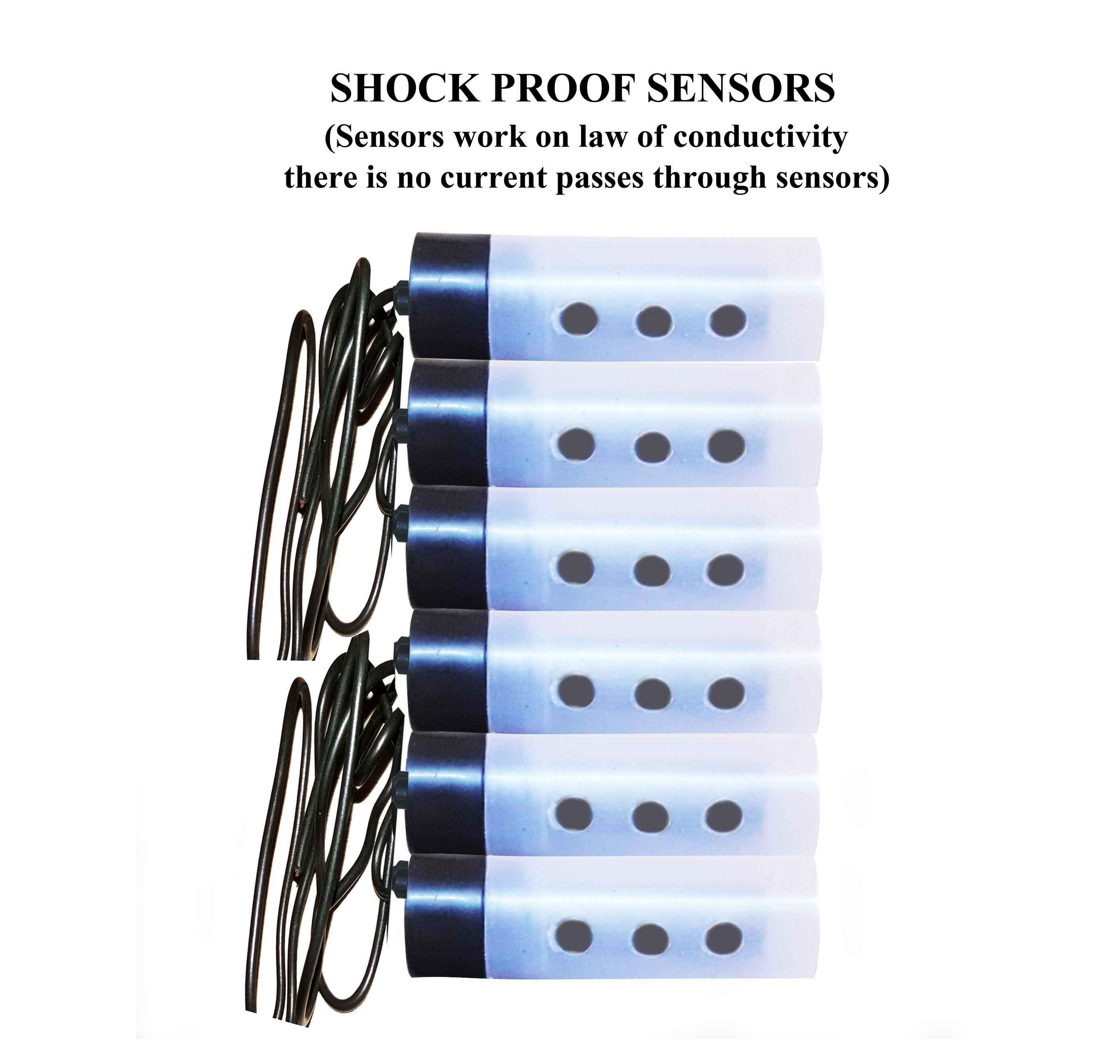

6 S S Sensors with 1.5 meter wire.

1 user manual with technical details.

Product Descriptions :

SSS R is the combination of water level controller and motor control panel (motor starter).

This model is suitable up to 1.5 HP motor

This panel is also suitable for deep well motor and submersible pump

50 MFD Run capacitor provided

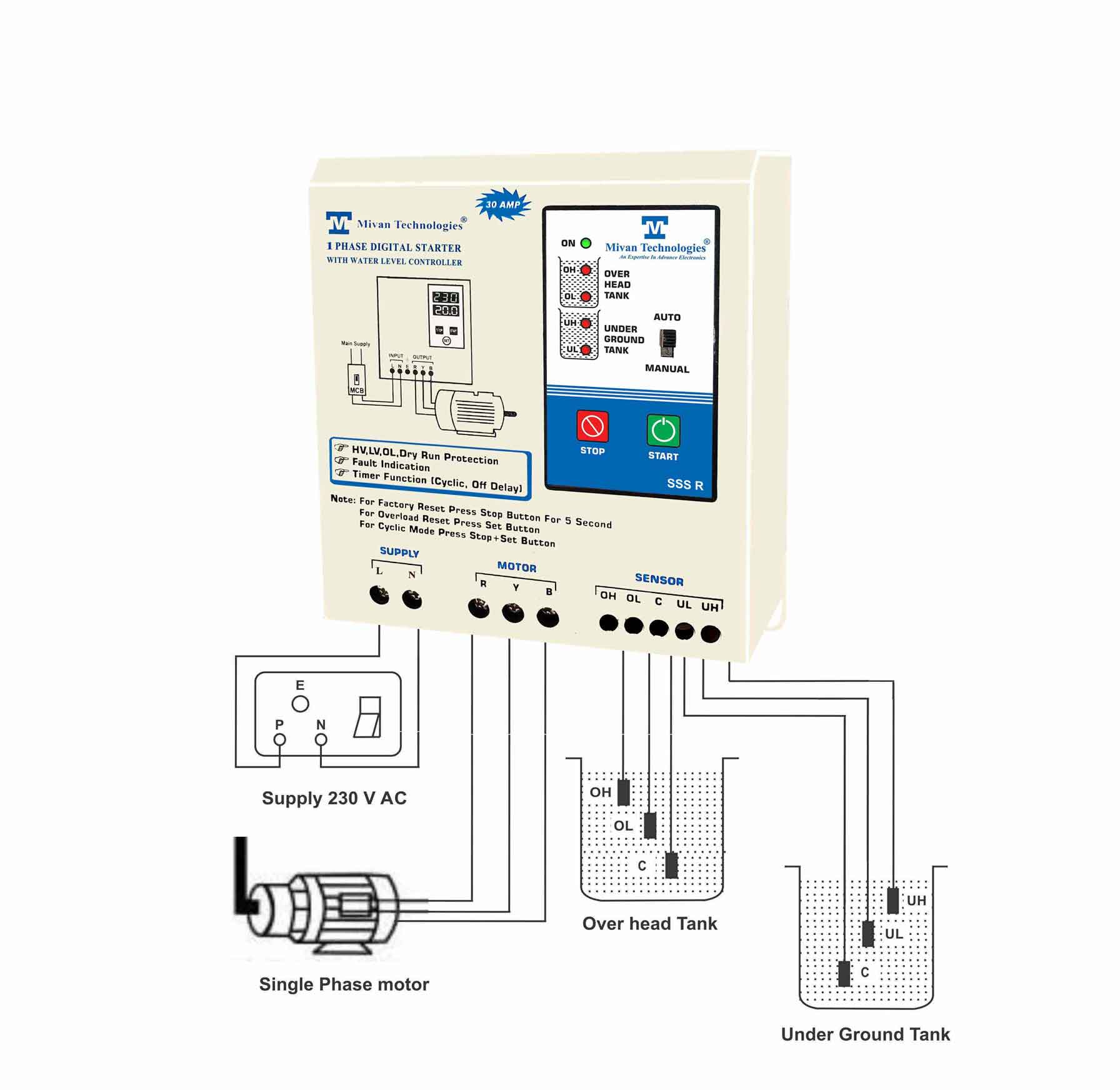

Input : P (Phase), N (Neutral) (sup 220 - 270 VAC)

Output : R, Y, B (motor or pump connections)

Water level indications provided for both tanks.

Water level controller and water level indicator for overhead and underground tank.

Working :

This model automatically switches ON and OFF the Motor.

When the water level of the overhead tank becomes low means water gets down from the middle sensor and if water is present in the underground tank or sump, the motor gets started automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.

AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.

Sensing element : S.S sensor, it is free from oxidation, long life. Any conducting wire can be used for sensor.

All signals passes in sensors through the AC filter circuit that improves the life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Auto and Manual mode switch available. In auto mode the motor starts and stops automatically. In manual mode the user can start and stop the motor by pressing the start and stop button of the controller. No additional wiring is required to operate the motor manually.

No sensors are required to detect dry running.

Water Level indication provided for both tank.

No starter is require as it is combination of starter and water level controller.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.

Electrolysis free design
