Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 Water Level Controller Unit.

2 S S Sensors with 1.5 meter wire

1 user manual with technical details.

Product Descriptions :

Micro controller based Digital Water Level Controller.

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Over load Protection,

Adjustable overload from 0 to 30 A

Current based dry run protection,

Adjustable dry run current from 0 to 30 A

It has current based dry run protection. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop the motor and protect motor from dry running.

Dry run Auto Reset timer provided with with bypass facility

Automatic Overload and Dry run current adjustable

When motor start, press the start button for 5 seconds, This unit will set overload and dry run current automatically

High & Low Voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)

Short circuit protection

protection bypass facility

Input Voltage : 230 VAC

Output Voltage : 230 VAC

High accuracy in over load and dry run current

Motor on indication provided

voltage and amp indication provided

Auto byapass indication provided

Water level controller and water level indication for overhead and underground tank.

Error messages shows on display

User can bypass the protection.

RESET button provided to reset unit

High quality ABS. enclosure provided.

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.

Working :

This controller will start the motor by pressing the start button of the controller and it will automatically switch OFF the Motor, when the tank will full.

Users can press the start button at any time they want.

This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.

Water Level indication provided for both tanks.

Relay : 40 A

Sensing element : S.S sensor, it is free from oxidation, long life. Any conducting wire can be used as a sensor.

All signals passes in sensors through the AC filter circuit that improves the life of sensor,

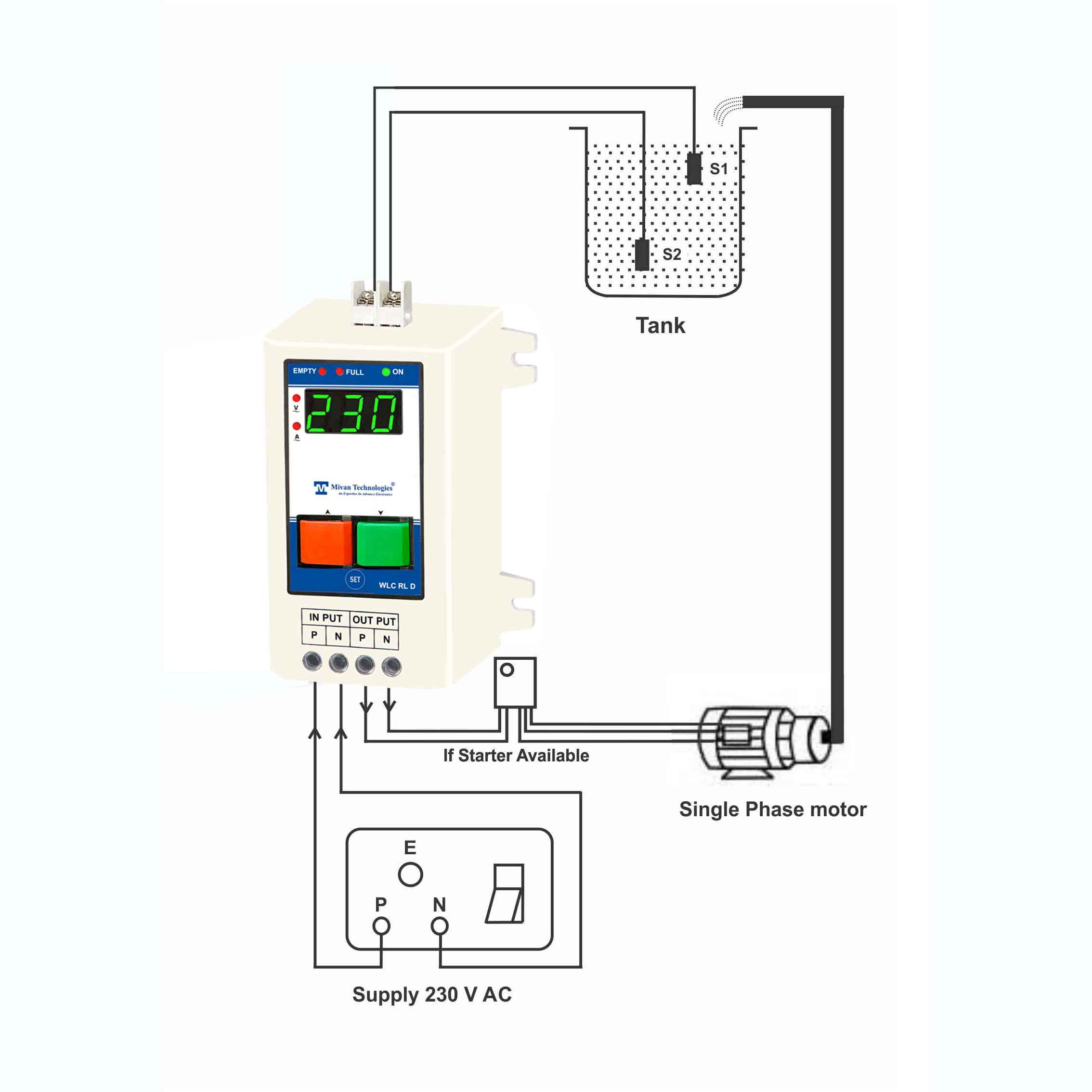

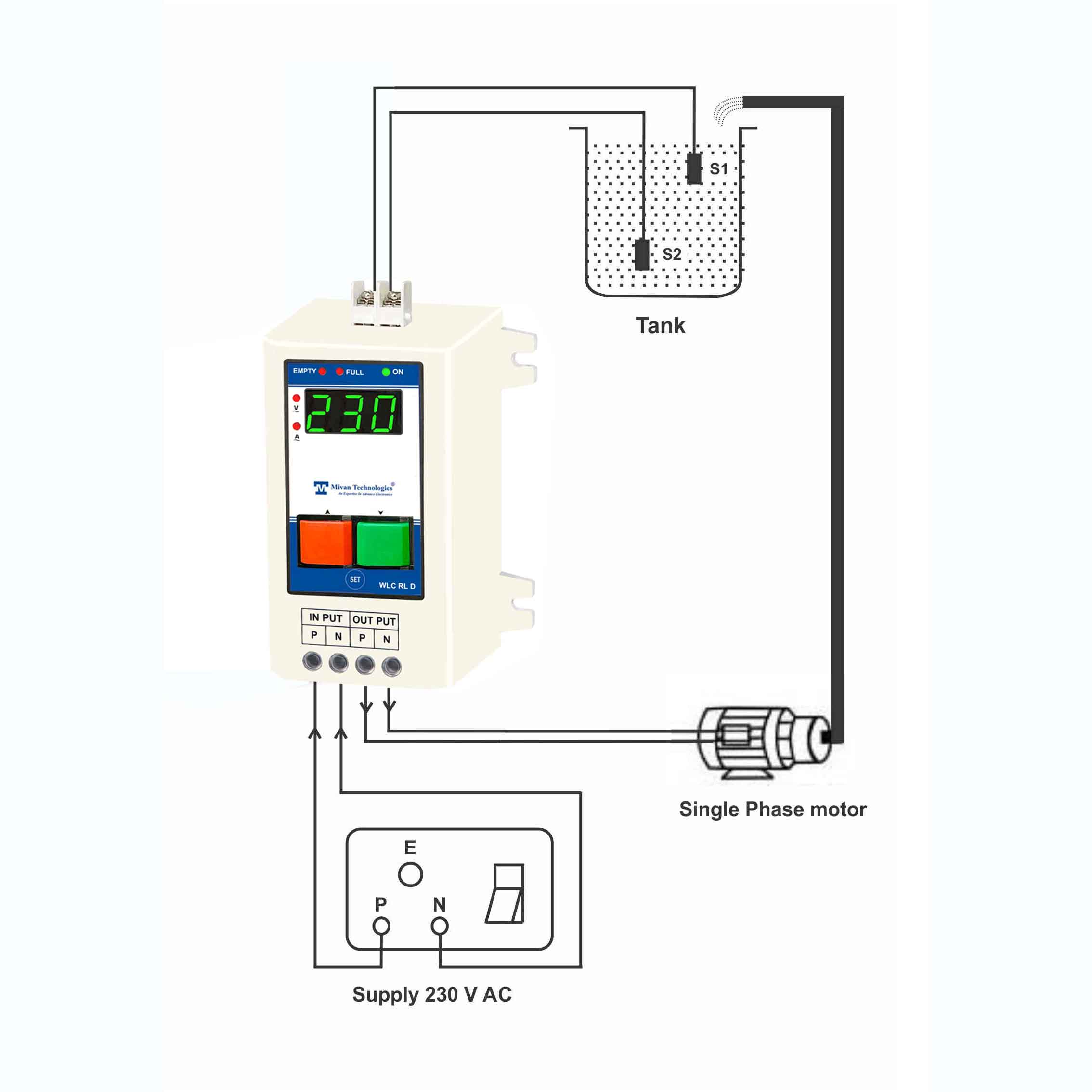

Also Suitable for MCB Starter panel and submersible motor, see diagram above for connection.

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design
