DSL 2SR Digital water level controller for push button starter panel with V A meter with HV LV OL DRY PROTECTIONS CYC timer

current based dry run protection Adjustable overload, dry and timer


MRP 9500
You save 7610 (80.11%)

Type: Water Level Controller Single Phase

Sub Type: Digital,For Push Button starter,With Motor Starter

Weight: 1.5 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

Product Variants

100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.


Package Contain :

1 Water Level Controller Unit.

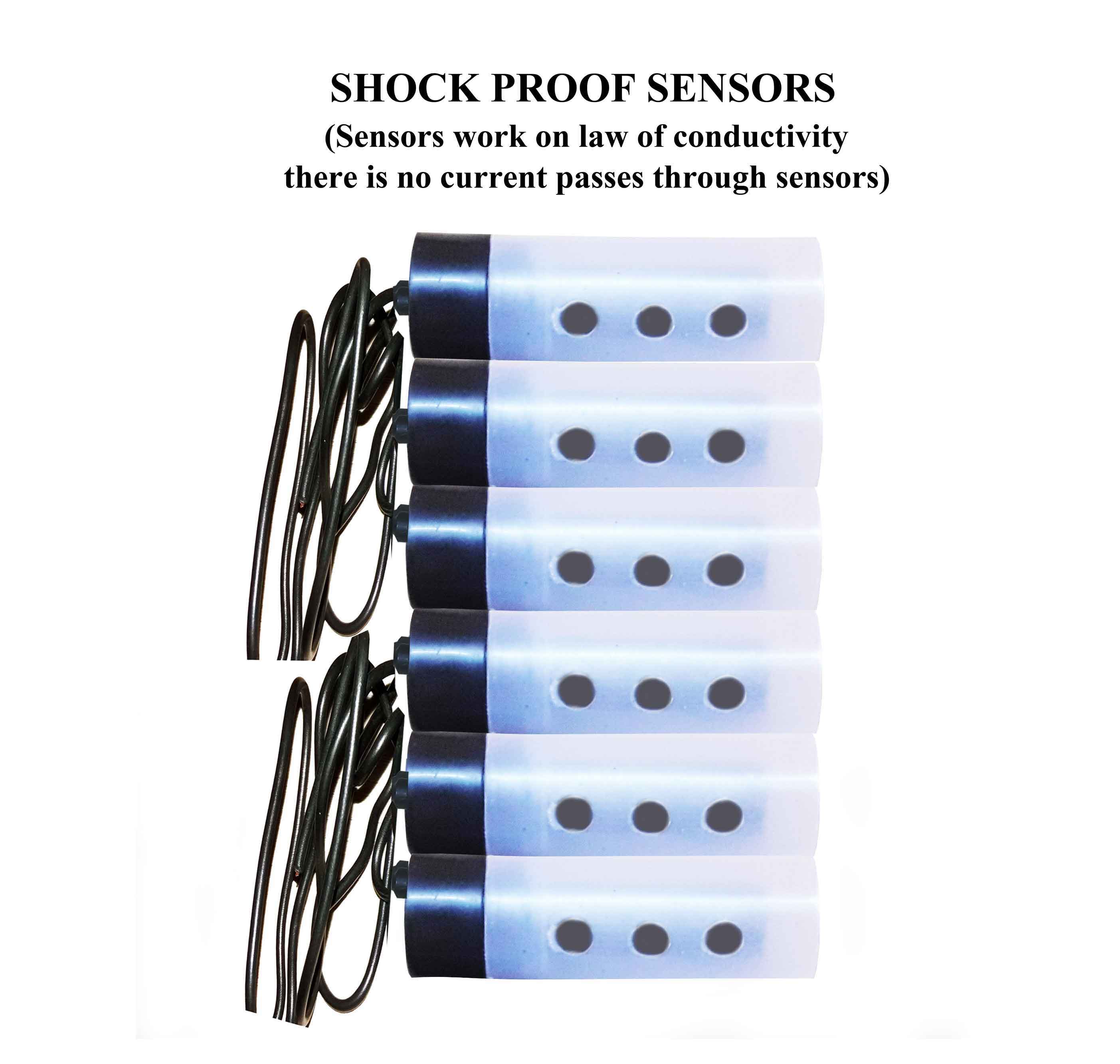

6 S.S Sensors with 1.5 meter wire

1 user manual with technical details.


Product Descriptions :

DSL 2SR is a digital water level controller that is suitable to any push button starter panel

This model is suitable for motor up to 5 HP

Micro controller based Digital Water Level Controller.

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Two seperate display for volt and amp.


Over load Protection,

Adjustable overload from 0 to 30 A


Current based dry run protection,

Adjustable dry run current from 0 to 30 A

It has current based dry run protection. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop the motor and protect motor from dry running.

Dry run Auto Reset timer provided with with bypass facility


Automatic Overload and Dry run current adjustable

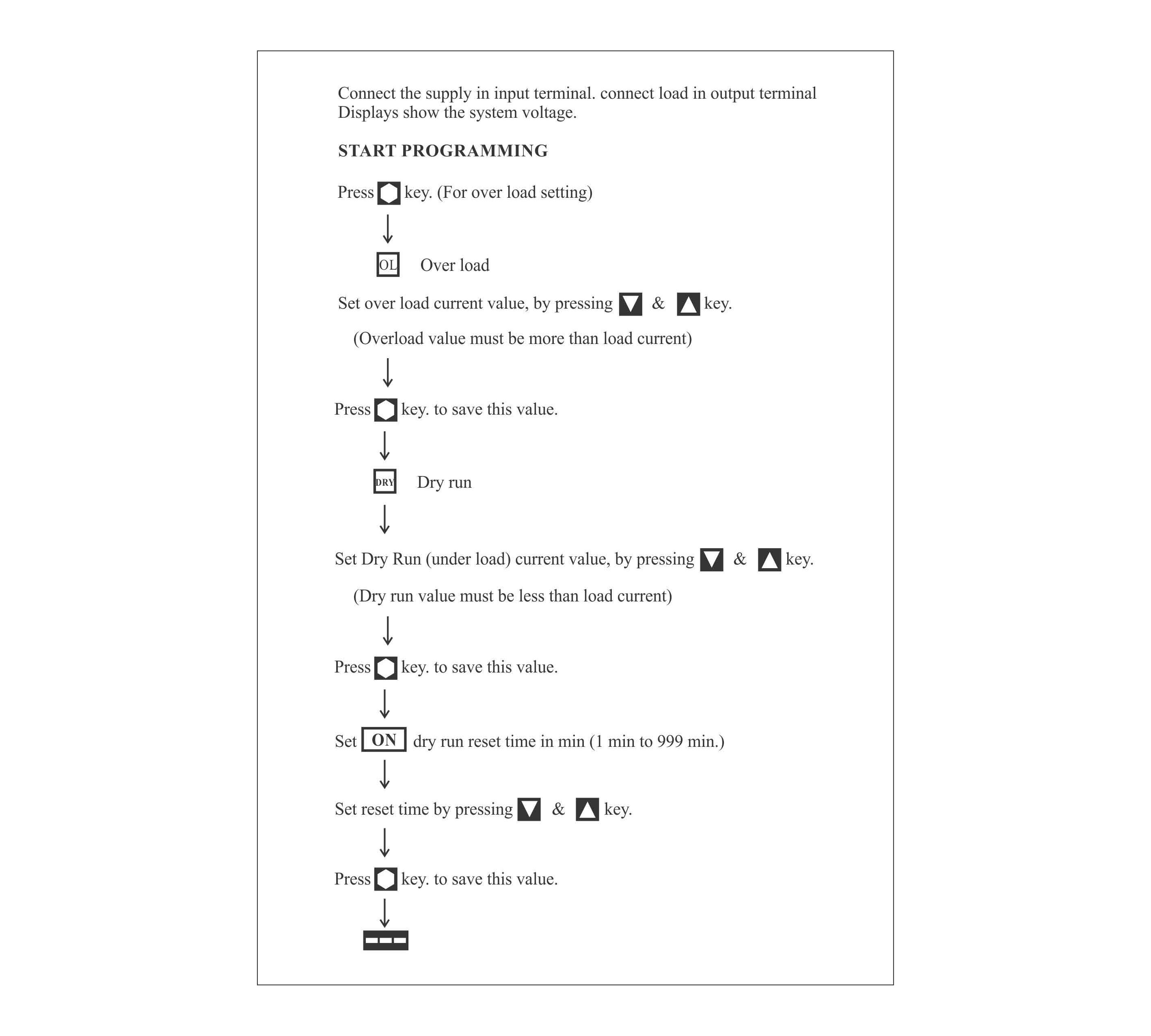

When motor start, press the start button for 5 seconds, This unit will set overload and dry run current automatically


High & Low Voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)


Short circuit protection

protection bypass facility


Cyclic timer provided with bypass facility (adjusatble from 0 to 999 min) If user want start and stop the motor on perticuler time then user can set the on and off time of cyclic timer


Cyclic timer available in auto mode with water controller and in bypass mode without water level controller

In auto mode cyclic timer - water level controller work on cyclic on time mode, as per preset time

Delay timer provided with bypass facility (adjusatble from 0 to 999 min)

On delay timer and off delay time provided (adjusatble from 0  to 999 min)

Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)

Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable from 0 to 999 sec.


Input Voltage : 230 VAC

Output Voltage : 230 VAC & Relay output for starting torque

High accuracy in over load and dry run current


Motor on indication provided

voltage and amp indication provided

Auto byapass indication provided

Water level controller and water level indication for overhead and underground tank.

Error messages shows on display


User can bypass the protection.

RESET button provided to reset unit

High quality ABS. enclosure provided.

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.


Working :

This model automatically switches ON and switches OFF Motor.

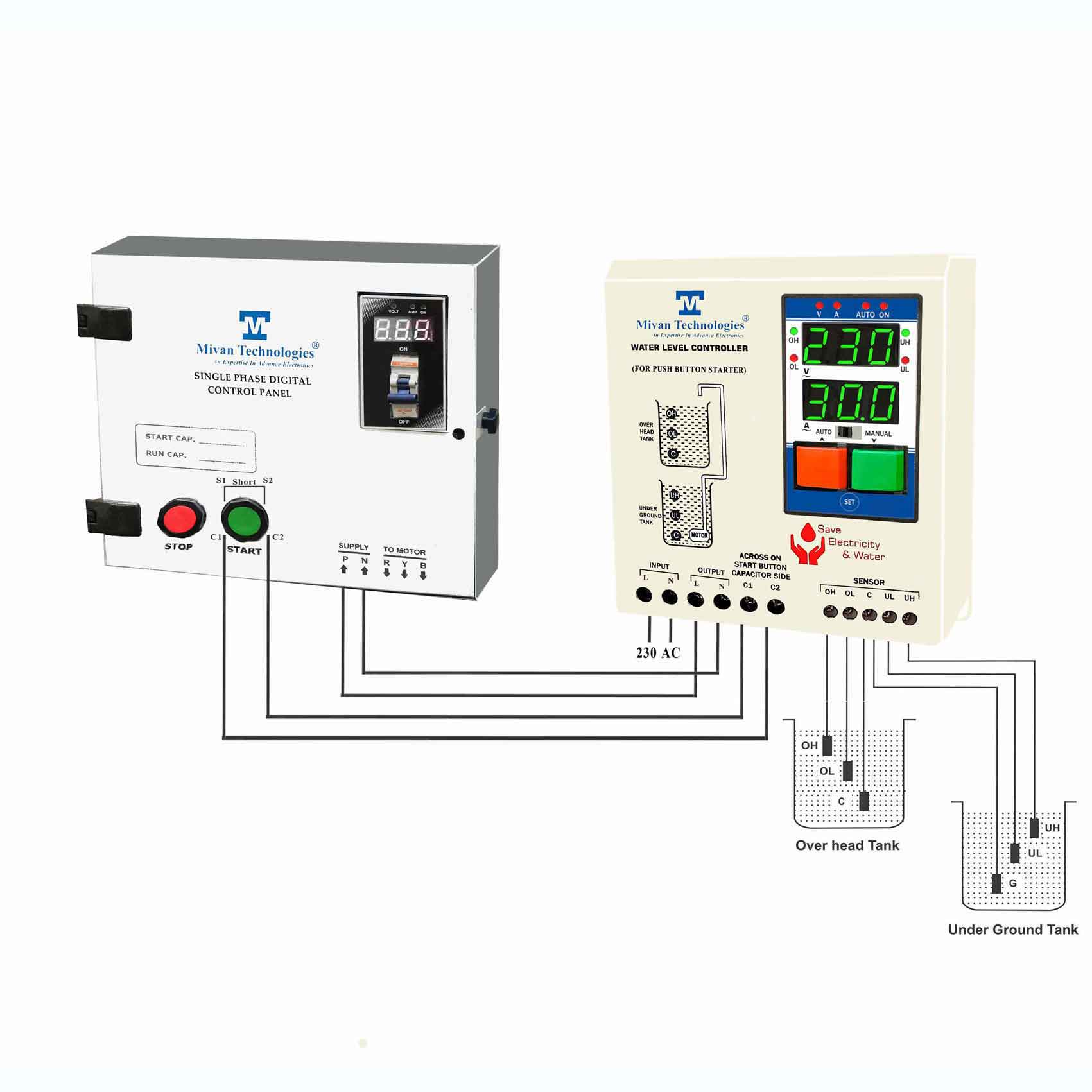

When the water level of the overhead tank becomes low means water gets down from the middle sensor and if water is present in the underground tank or sump, the motor gets started automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.


This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.

Water Level indication provided for both tanks.

Supply voltage : 220-270 V AC,

Relay : 40 A

Sensing element : it is free from oxidation, long life. Any conducting wire can be used for sensor.

Auto and Manual mode switch available. In auto mode the motor starts and stops automatically. In manual mode the user can start and stop the motor by pressing the start and stop button of the controller. No additional wiring is required to operate the motor manually.

High quality ABS. enclosure provided.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.

All signals passes in sensors through the AC filter circuit that improve life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design
