Semi Automatic Manual start and Auto stop water controller with tank level indications

In Auto mode it work as fully automatic and in Manual mode it work as semi automatic

 650.00

MRP 2200
You save 1550 (70.45%)


Type: Water Level Controller

Sub Type: Single phase,Semi Automatic

Weight: 0.80 KG

Manufacturer: Mivan Technologies

Tax: 18.00 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.


100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.



Package Contain :

1 Water Level Controller Unit.

3 S.S Sensors.

1 user manual with technical details.



Product Descriptions :

This controller comes with a water level indicator which shows water level in the tank.

This controller having 2 mode. Auto and Manual.



In manual mode :

It works as Semi Automatic (manually start and auto stop)

Working : This controller will start the motor by pressing the start button of the controller and it will automatically switch OFF the Motor, when the tank is full. Users can press the start button at any time they want.



In Auto mode :

It works as fully automatic. (Start and stop the motor automaticaly)

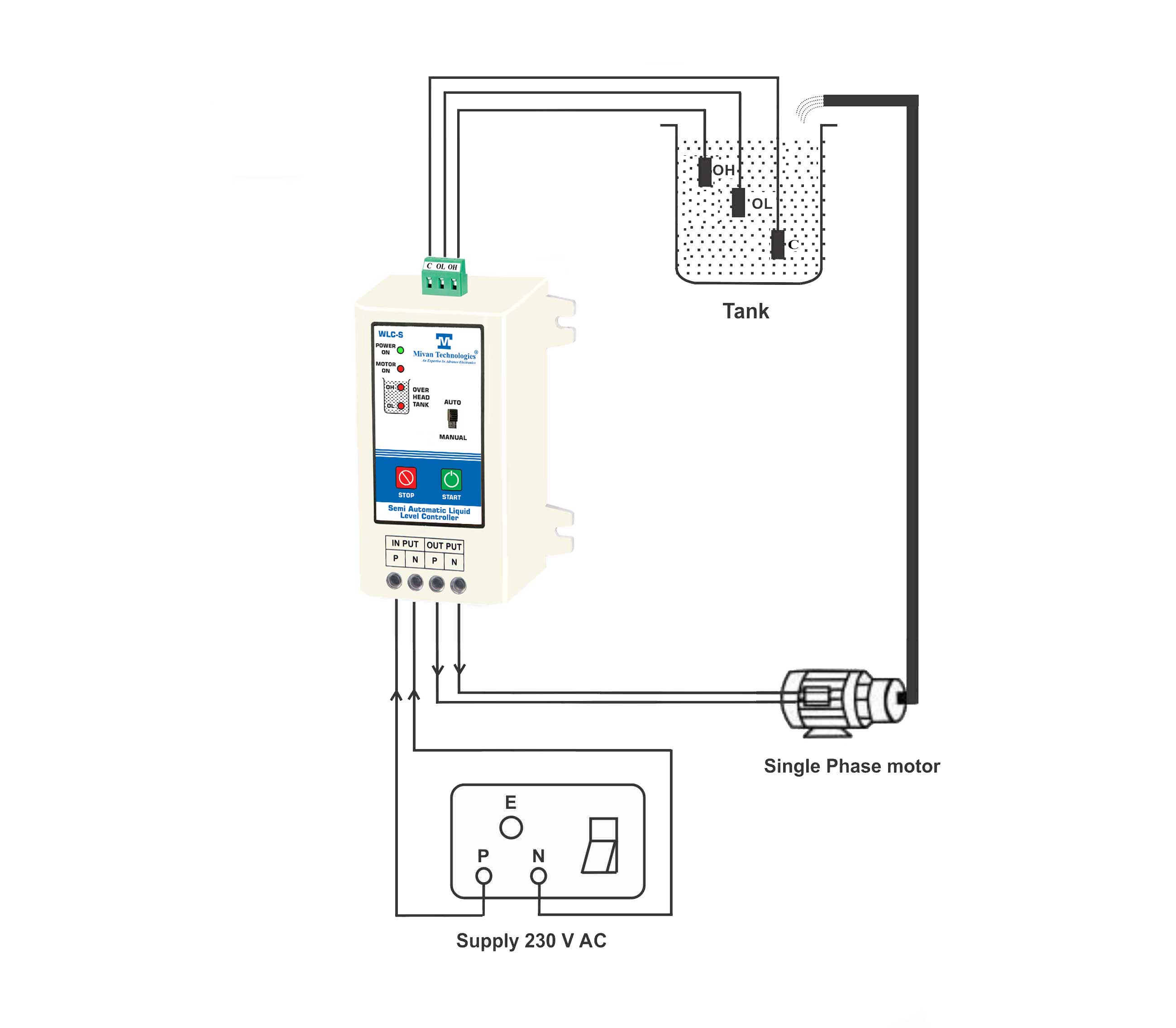

Working : As shown in the diagram put all the sensor in the tank

When the water level in the tank becomes low, means when the water gets down from the middle sensor, the motor switches on automatically. The tank starts filling up. When the water level reaches to the higher level, the top level sensor senses. the motor automatically gets switched off.



Special Feature :

Water level indication provided to see water level in tank.

Suitable for 0.1 HP to 5.0 HP Motor.

Supply Voltage : 220-270 VAC.

Relay : 40 A

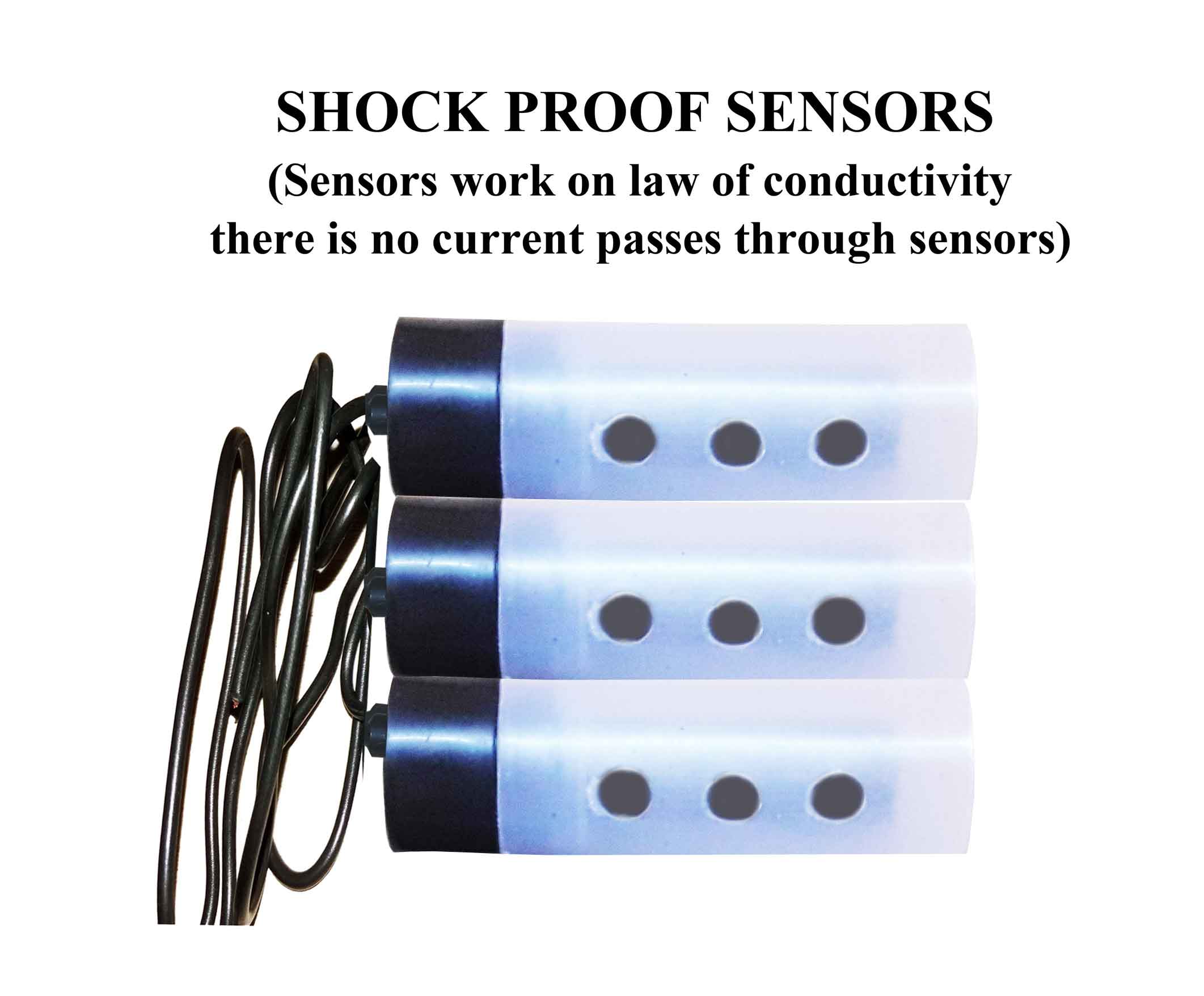

Sensing element : S.S sensor, it is free from oxidation, long life. Any conducting wire can be used for the sensor.

All signals passes in sensors through the AC filter circuit that improve life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design

It can be connected with or without a starter.

This model is suitable for any single phase Starter panel see diagram above for connection.

Power ON & OFF LED indication provided.

Motor ON & OFF indication provided.

Water level indication provided.

high quality ABS enclosure. compact size.
