current based dry run protection Adjustable overload, dry current, and timer
1990 Buy Now
MRP 8500
You save 6510 (76.59%)
Type: Water Level Controller Single Phase
Sub Type: Digital,With Motor Starter
Weight: 1.35 KG
Manufacturer: Mivan Technologies
Tax: 18 %
In Stock
Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.
100% Secure Payments, 7 Days Easy Return Policy.
Item Specifications :
Condition : A brand new unused, undamaged item that is fully operational and functions as intended.
Warranty : 1 Year Manufacturer.
Warranty Service : Repair or Replacement.
Package Contain :
1 Water Level Controller Unit.

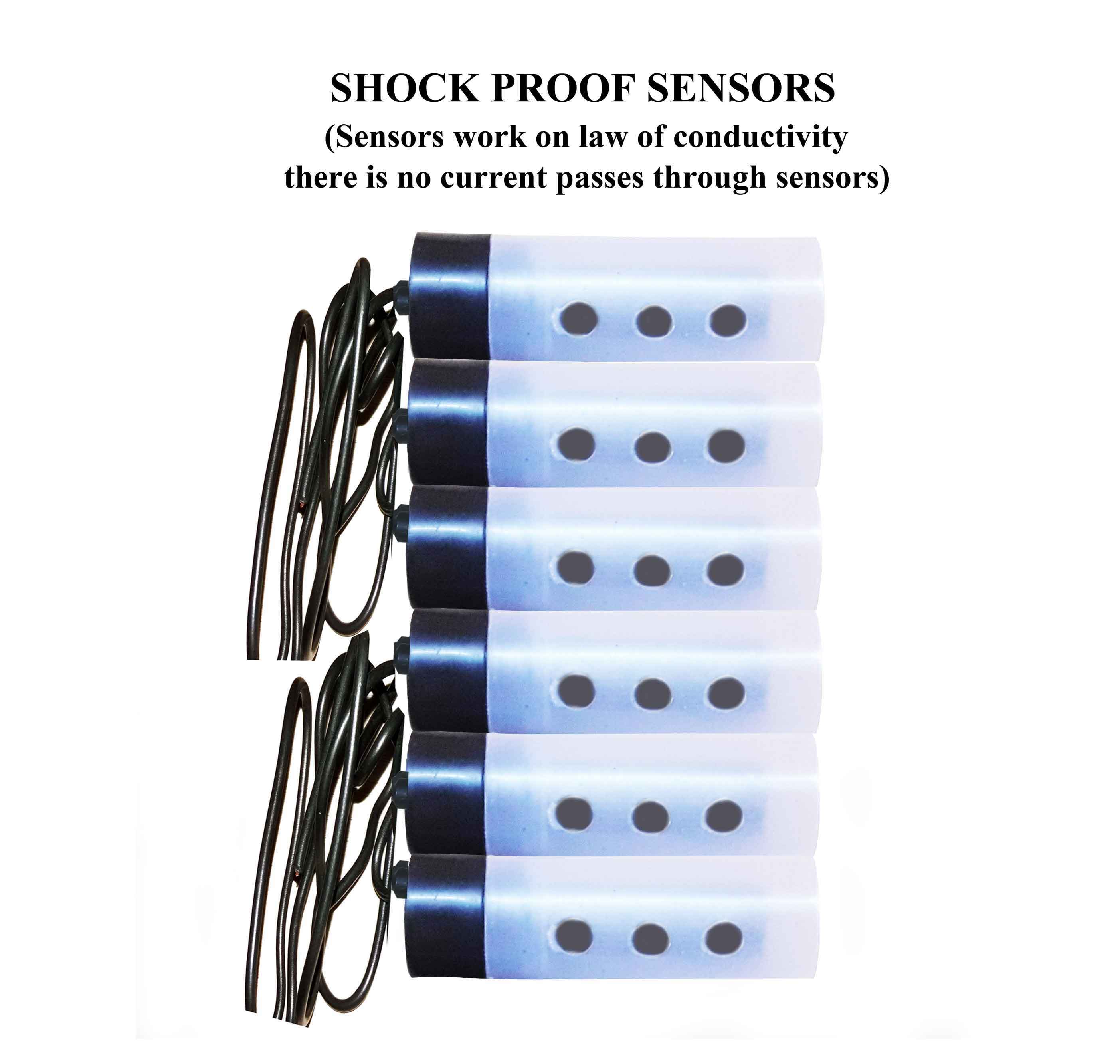

6 S S Sensors with 1.5 meter wire.
1 user manual with technical details.
Product Descriptions :
DSL R 2D is the combination of a digital water level controller and motor control panel (motor starter).
This model is suitable for motor up to 1.5 HP
Run Cap : 50 MFD
Input : P (Phase), N (Neutral) (sup 220-270 VAC)
Output : R, Y, B (motor or pump connections)
Micro controller based Digital Water Level Controller.
Digital Volt and ampere meter are provided to see system voltage and load current accordingly.
Two seperate display for volt and amp.
Over load Protection,
Adjustable overload from 0 to 30 A
Current based dry run protection,
Adjustable dry run current from 0 to 30 A
It has current based dry run protection. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop the motor and protect motor from dry running.
Dry run Auto Reset timer provided with with bypass facility
Automatic Overload and Dry run current adjustable
When motor start, press the start button for 5 seconds, This unit will set overload and dry run current automatically
High & Low Voltage protection,
Adjustable voltage limit (High and low both voltage protection limit adjustable)
Short circuit protection
protection bypass facility
Cyclic timer provided with bypass facility (adjusatble from 0 to 999 min) If user want start and stop the motor on perticuler time then user can set the on and off time of cyclic timer
Cyclic timer available in auto mode with water controller and in bypass mode without water level controller
In auto mode cyclic timer - water level controller work on cyclic on time mode, as per preset time
Delay timer provided with bypass facility (adjusatble from 0 to 999 min)
On delay timer and off delay time provided (adjusatble from 0 to 999 min)
Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)
Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable from 0 to 999 sec.
Input Voltage : 230 VAC
Output Voltage : 230 VAC
High accuracy in over load and dry run current
Motor on indication provided
voltage and amp indication provided
Auto byapass indication provided
Water level controller and water level indication for overhead and underground tank.
Error messages shows on display
User can bypass the protection.
RESET button provided to reset unit
High quality ABS. enclosure provided.
Start and stop button provided to start and stop motor

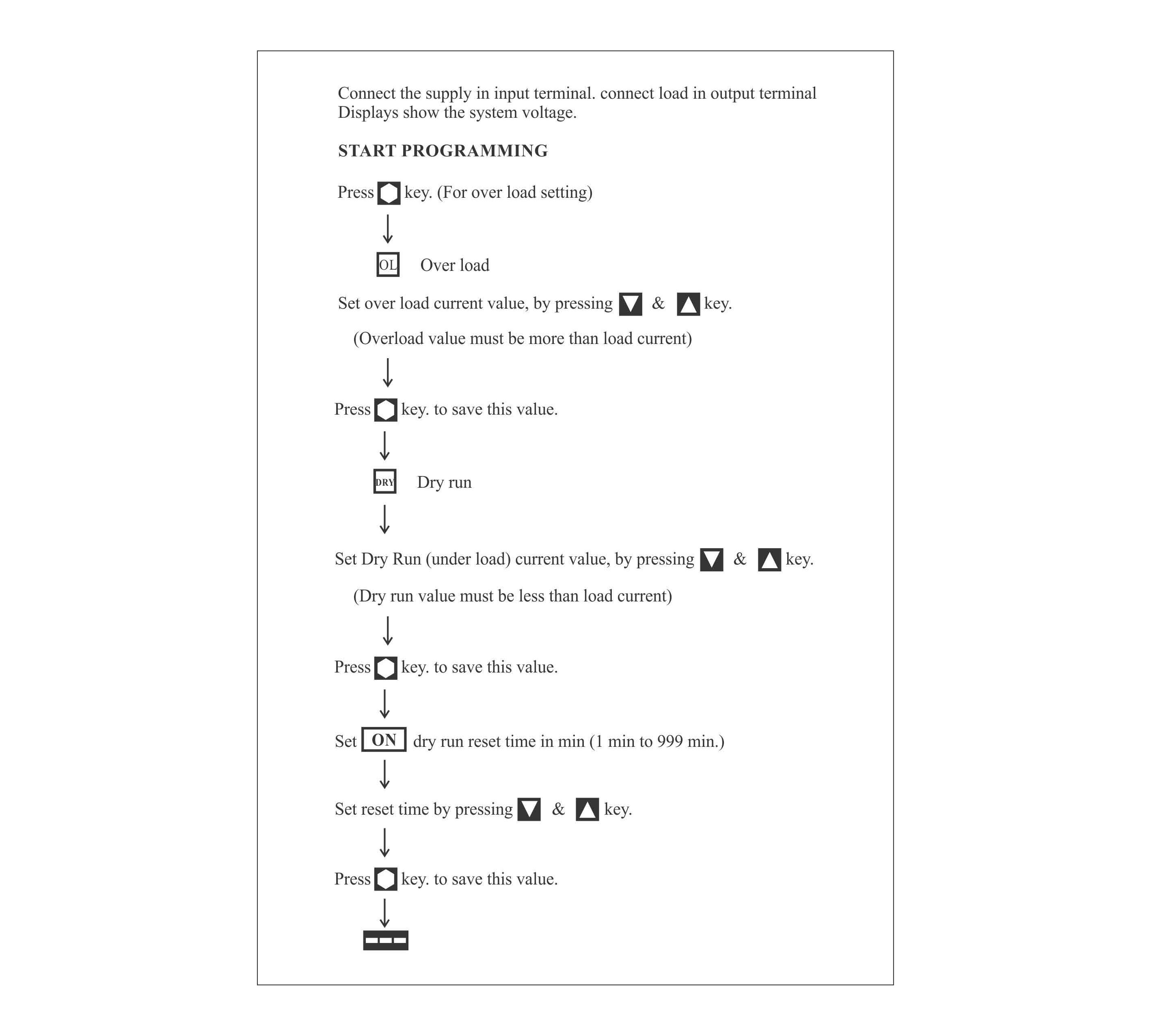

Set button provided to set the current voltage and timer.
Reset button provided to reset the unit
Factory reset facility in case of incorrect value entered.
Working :
This model automatically switch ON and switch OFF Motor.
When water level of overhead tank becomes low means water get down from middle sensor and if water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.
AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.
This model have dry run protection so it only start motor if water present in underground tank or sump.
Motor ON OFF LED indication provided.
Water Level indication provided for both tank.
Supply voltage : 220-270 V AC,
Relay : 40 A
Sensing element : it is free from oxidation, long life. Any conducting wire can be use for sensor.
Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. No additional wiring require to operate motor manually.

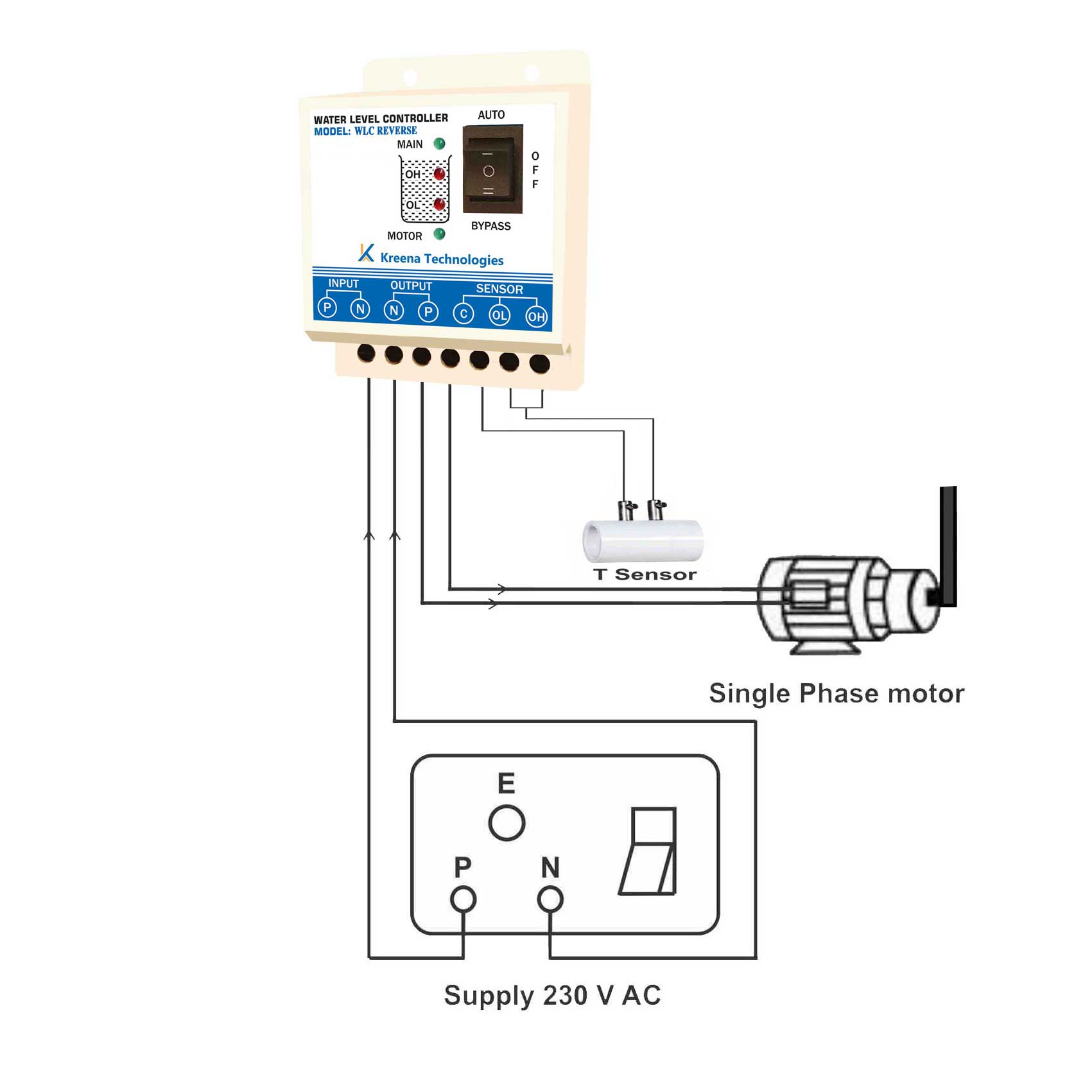

Also Suitable for MCB Starter panel and submersible motor, see diagram above for connection.
High quality ABS. enclosure provided.
Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.
All signals passes in sensors through the AC filter circuit that improve life of sensor,
Isolated supply provided
Sensor fault detection provided, if sensor got failed LED start blinking
Electrolysis free design
