High quality ABS body with dry run protection water level indication provided3200 Buy Now
You save 4800 (60.00%)
Type: Water Level Controller
Sub Type: Single phase
Weight: 1.5 KG
Manufacturer: Mivan Technologies
Tax: 18 %
Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.
100% Secure Payments, 7 Days Easy Return Policy.
Item Specifications :
Condition : A brand new unused, undamaged item that is fully operational and functions as intended.
Warranty : 1 Year Manufacturer.
Warranty Service : Repair or Replacement.
Package Contain :
1 Water Level Controller Transmitter Unit.
1 Water Level Controler Receiver Unit
6 S S Sensors.
1 user manual with technical details.
Product Descriptions :

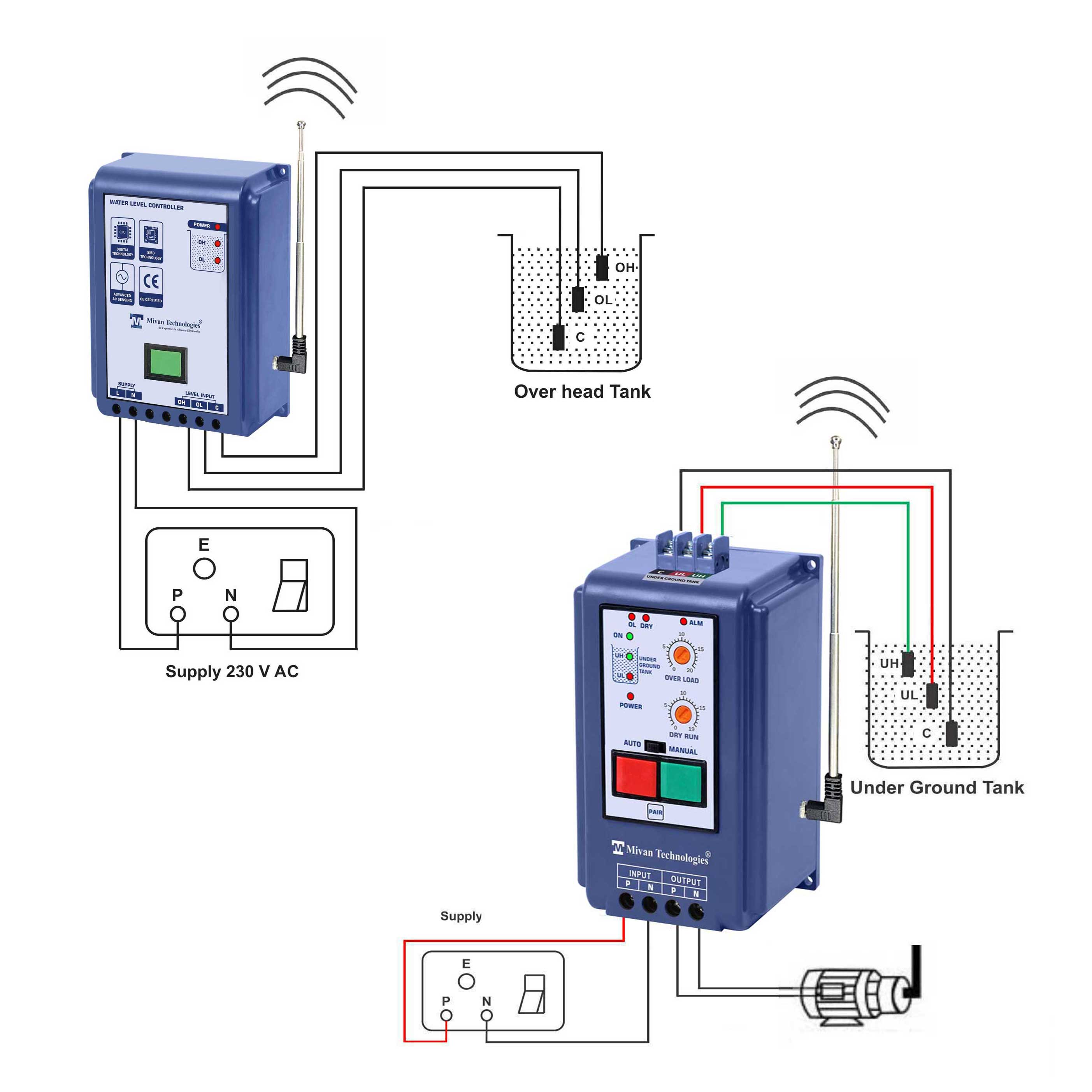

433 MHZ RF Transmitter & Receiver, 90 meter range.
it also work if there is obstacle between the transmitter and receiver.
Range indication provided, easy install and understand that both transmitter and reeiver are in the range or out of range
Pair key provided. You can install multiple device at same place as perticuler transmitter work with perticuler receiver by pair key.
High quality ABS plastic Enclosure.
Working : This model automatically switches ON and OFF Motor.
When the water level of the overhead tank becomes low means water gets down from the middle sensor and water is present in the underground tank or sump, the motor gets started automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.
AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.
This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.
Suitable for 0.1 HP to 5.0 HP Motor, Protect motor from dry running.
Motor ON OFF LED indication provided.
Water Level indication provided for both tanks.
Auto and manual mode indication provided
Supply voltage : 220-270 V AC,
Relay : 40 A

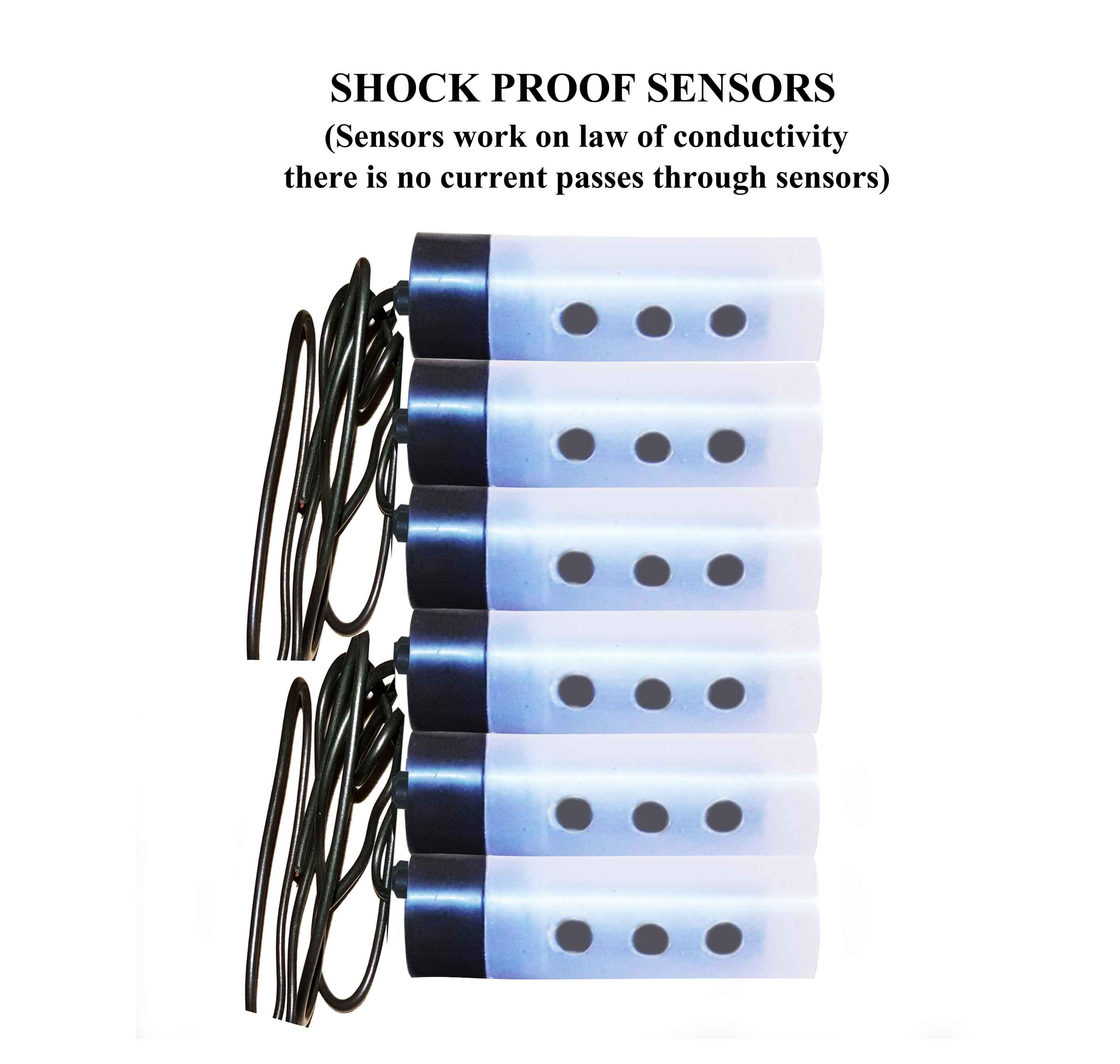

Sensing element : S.S sensor
Auto and Manual mode switch available. In auto mode the motor starts and stops automatically. In manual mode the user can start and stop the motor by pressing the start and stop button of the controller. No additional wiring is required to operate the motor manually.

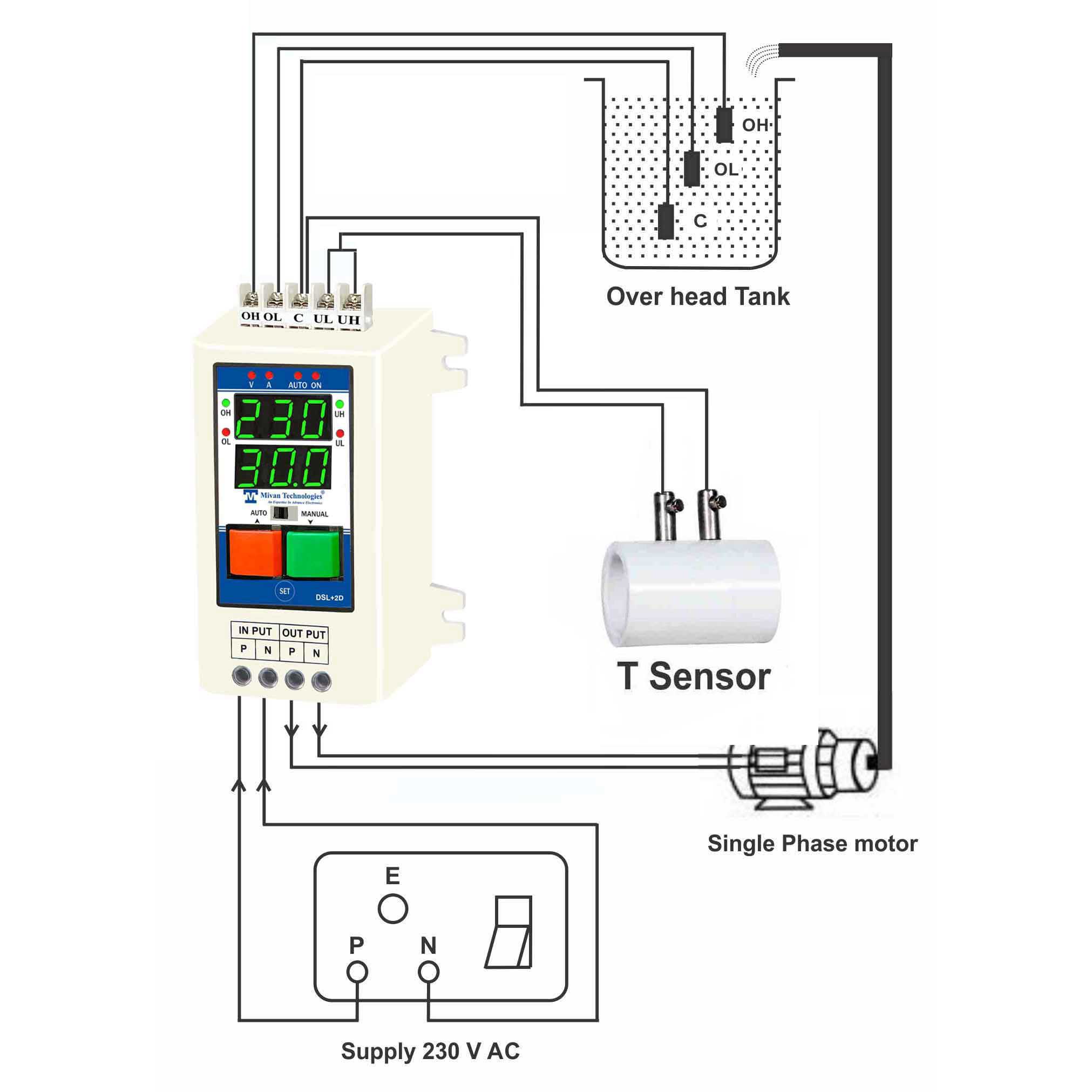

Also Suitable for MCB Starter panel and submersible motor, see diagram above for connection.
High quality ABS enclosure provided.
Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.
All signals passes in sensors through the AC filter circuit that improve life of sensor,
Isolated supply provided
Sensor fault detection provided, if sensor got failed LED start blinking
Electrolysis free design
Our offered controller is manufactured by our adroit professionals using quality tested components and modern technology. we kindly request buyers to communicate with us if there are any issue. we will help to solve all of your issue. Every care is taken for packing so that the item reaches to the buyer safely and undamaged.
