LLC Com water level controller for all type of starter it can connect with and without starter panel

common model for all single phase motor and submersible pump fully automatic with dry run protection and water level indications


MRP 5000
You save 3301 (66.02%)

Type: Water Level Controller Single Phase

Sub Type: Analog,For Push Button starter

Weight: 1.5 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.


Package Contain :

1 Water Level Controller Unit.

6 SS sensors with 1.5 meter wire

1 user manual with technical details.


Product Descriptions :

High quality M.S. Enclosure.

THIS MODEL IS SUITABLE TO SINGLE PHASE STARTER PANEL. This water level controller is can connect with and without starter. This is common model of water level controller for all single phase motor and submersible pump.


How To Connect :

See diagram attached with name 1,2,3,4

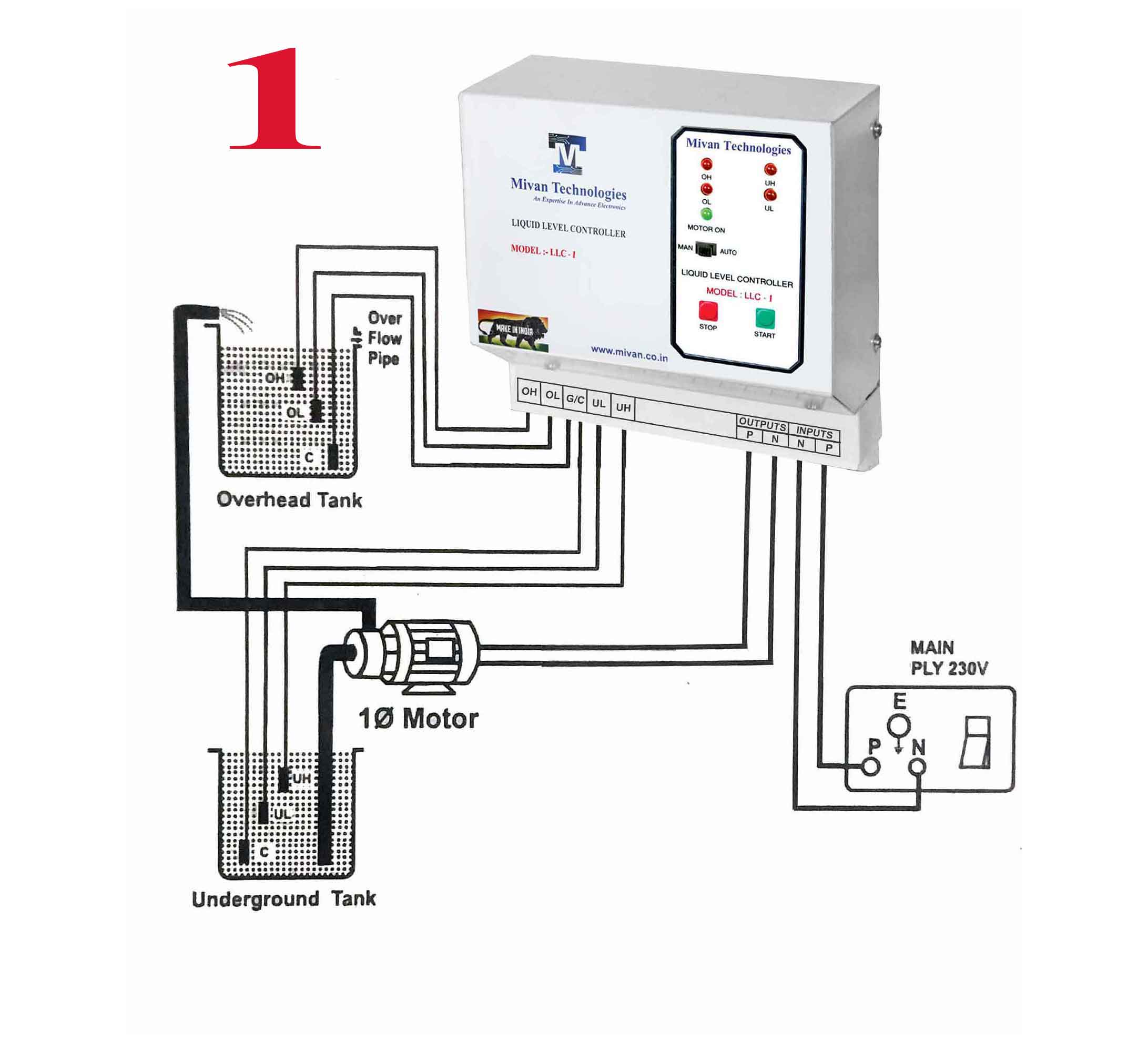

1 If no starter with motor :- Connect as per "1" diagram.

2 If there is MCB type starter with motor :- Connect as per "2" diagram.

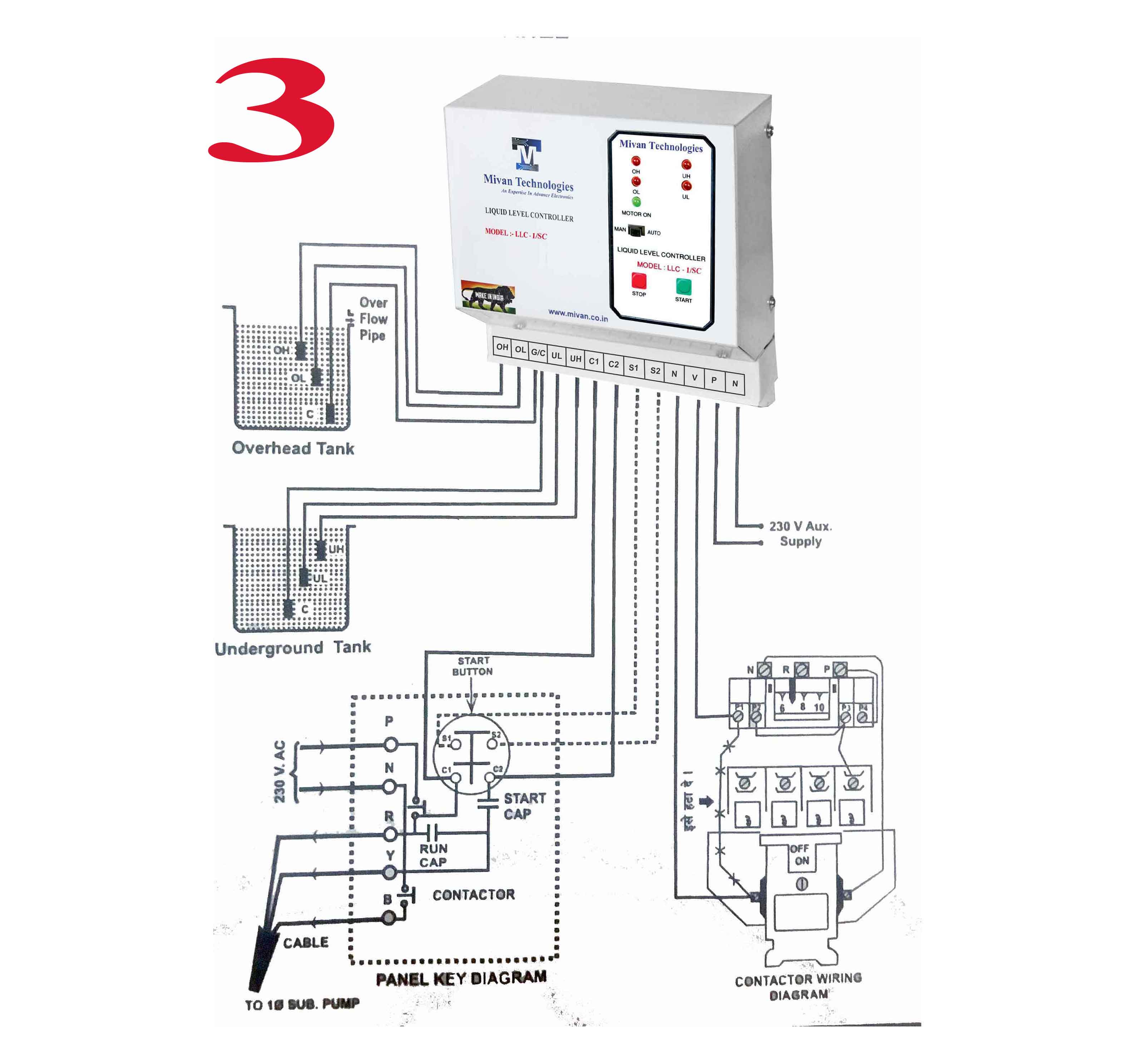

3 If there is double push button type starter(Start and Stop Button) :- Connect as per "3" diagram.

4 If there is single push button type starter (only start button) :- Connect as per "4" diagram.


Working :

This model automatically switch ON and switch OFF Motor.

When water level of overhead tank becomes low means water get down from middle sensor and water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.


This model have dry run protection so it only start motor if water present in underground tank or sump.

Suitable to any HP motor if connect with starter.

Suitable to 0.1 HP to 5.0 HP Motor. if connect direct motor without starter.

Motor ON OFF LED indication provided.

Water Level indication provided for both tank.

Supply voltage : 230 V AC,

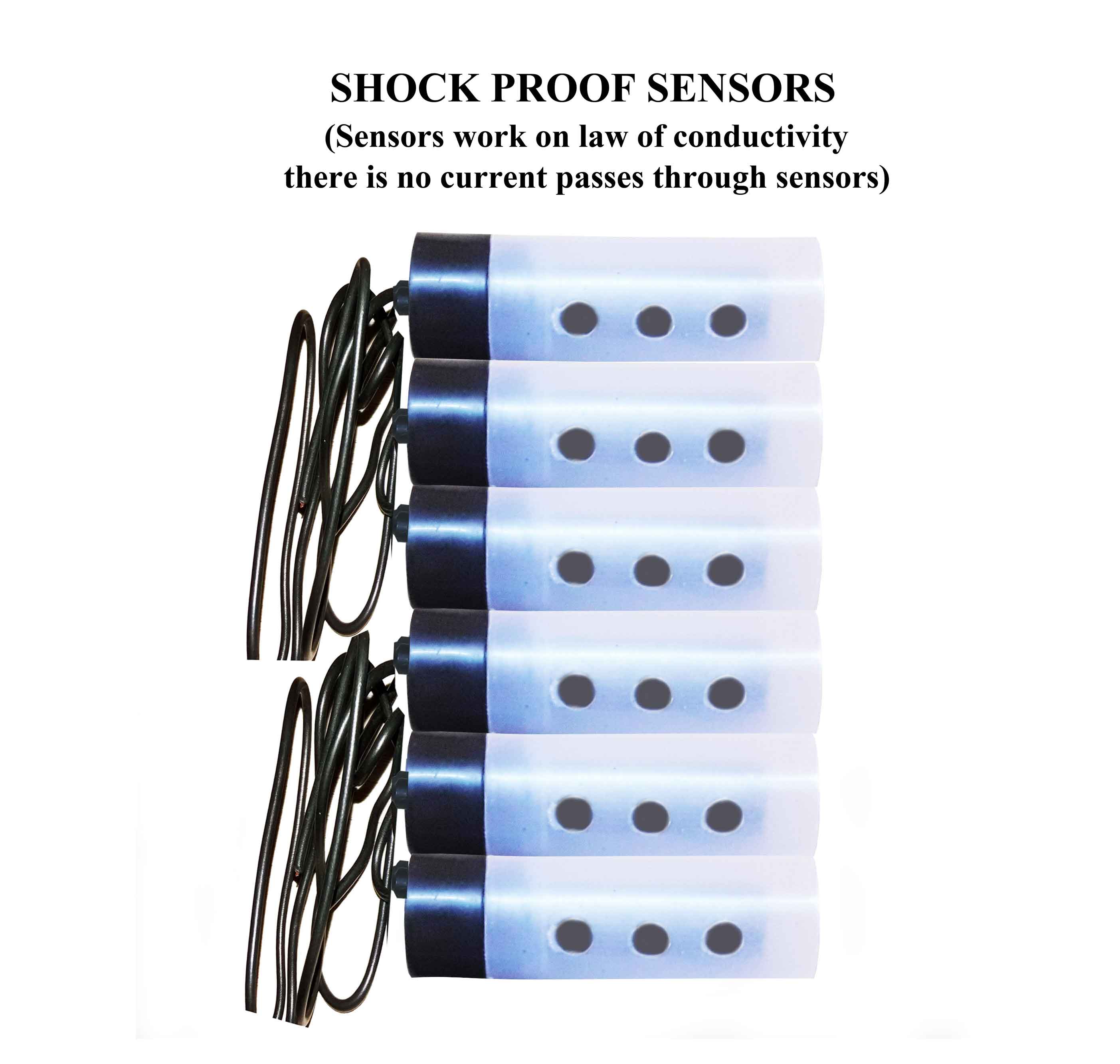

Sensing element : SS sensor, it is free from oxidation, long life. Any conducting wire can be use for sensor.

Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. No additional wiring require to operate motor manually.

High quality M.S. enclosure provided.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.

All signals passes in sensors through the AC filter circuit that improve life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design
