Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

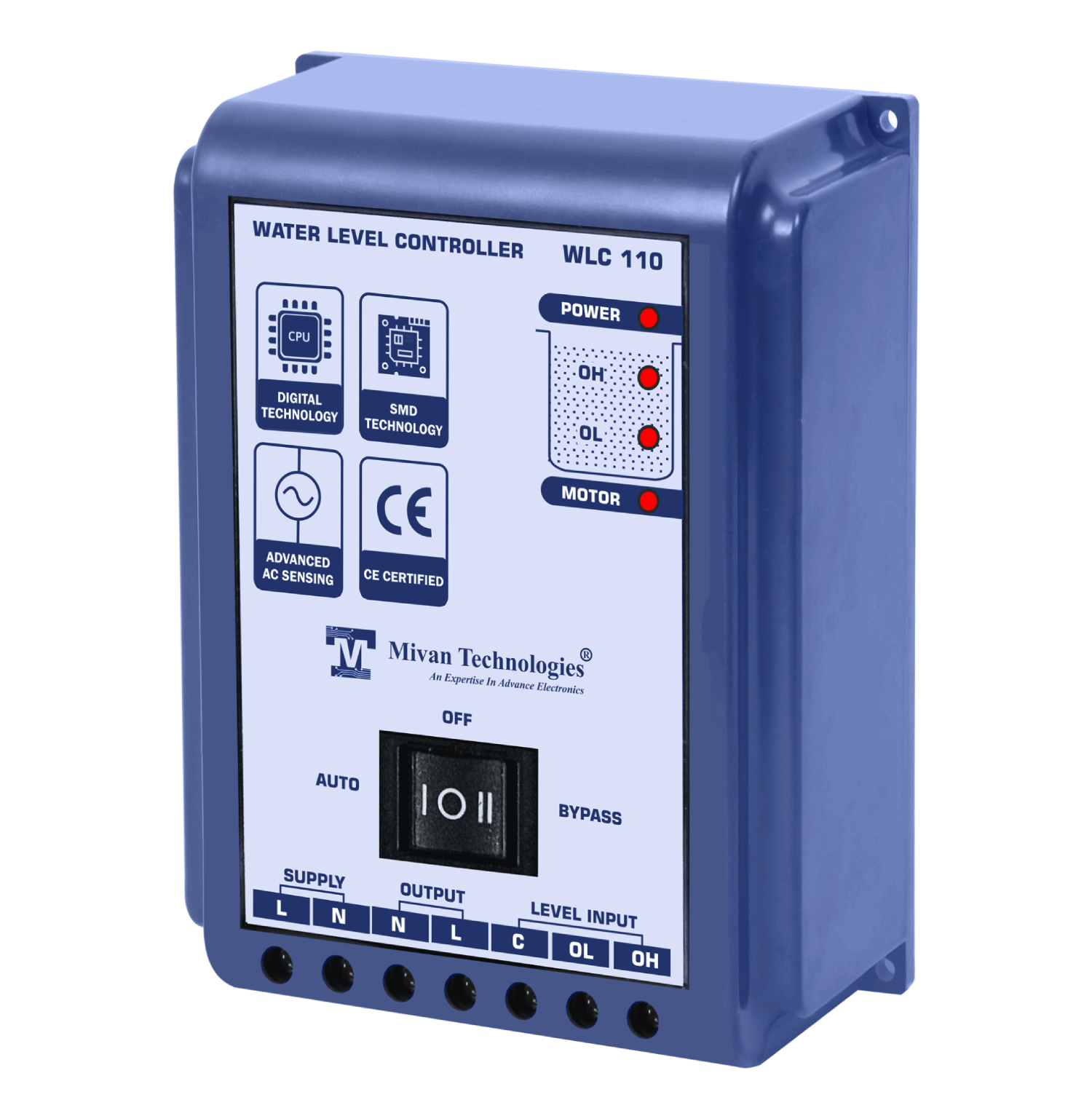

1 Water Level Controller Unit.

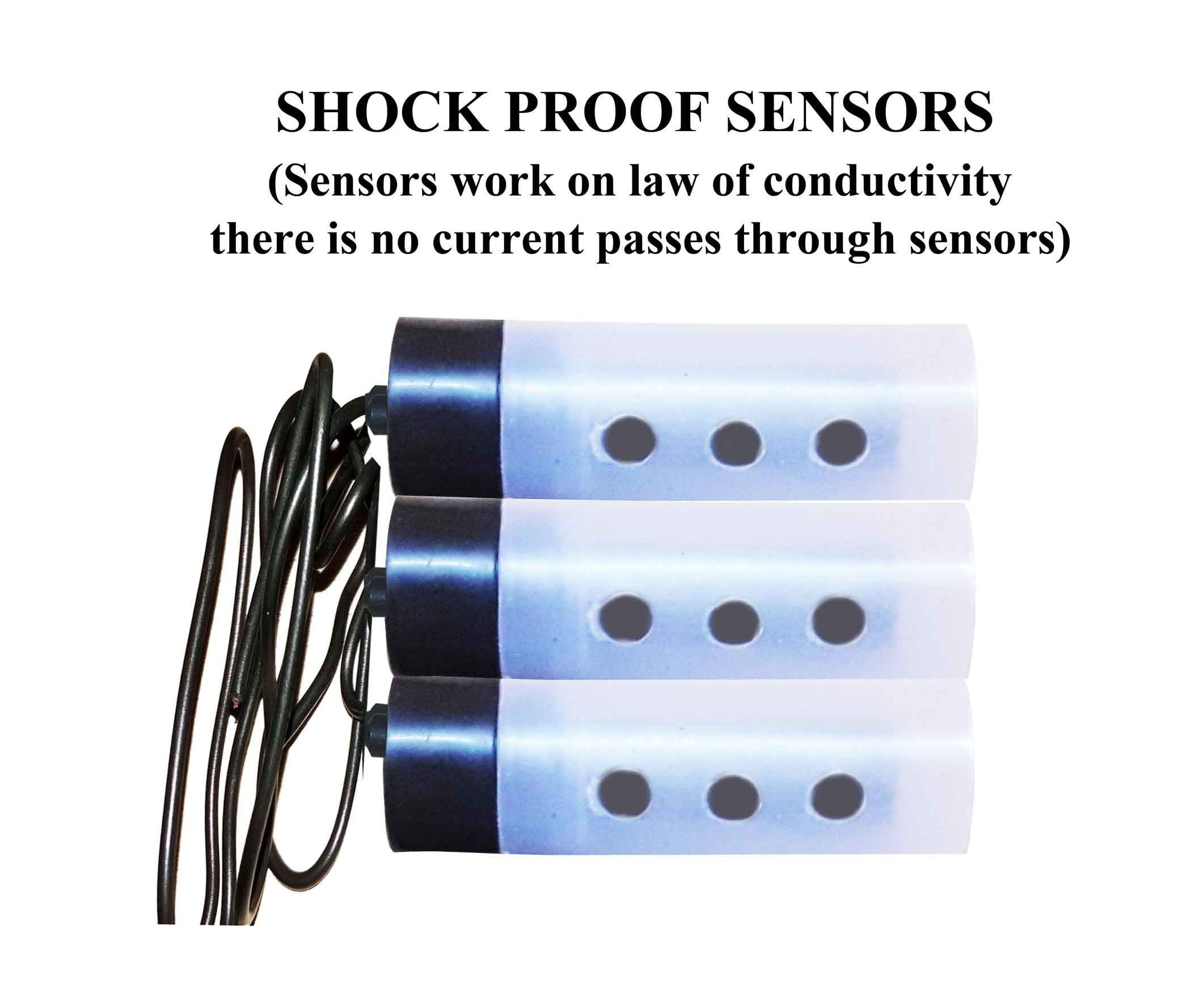

3 S S Sensors with 1.5 meter wire.

1 user manual with technical details.

Product Descriptions :

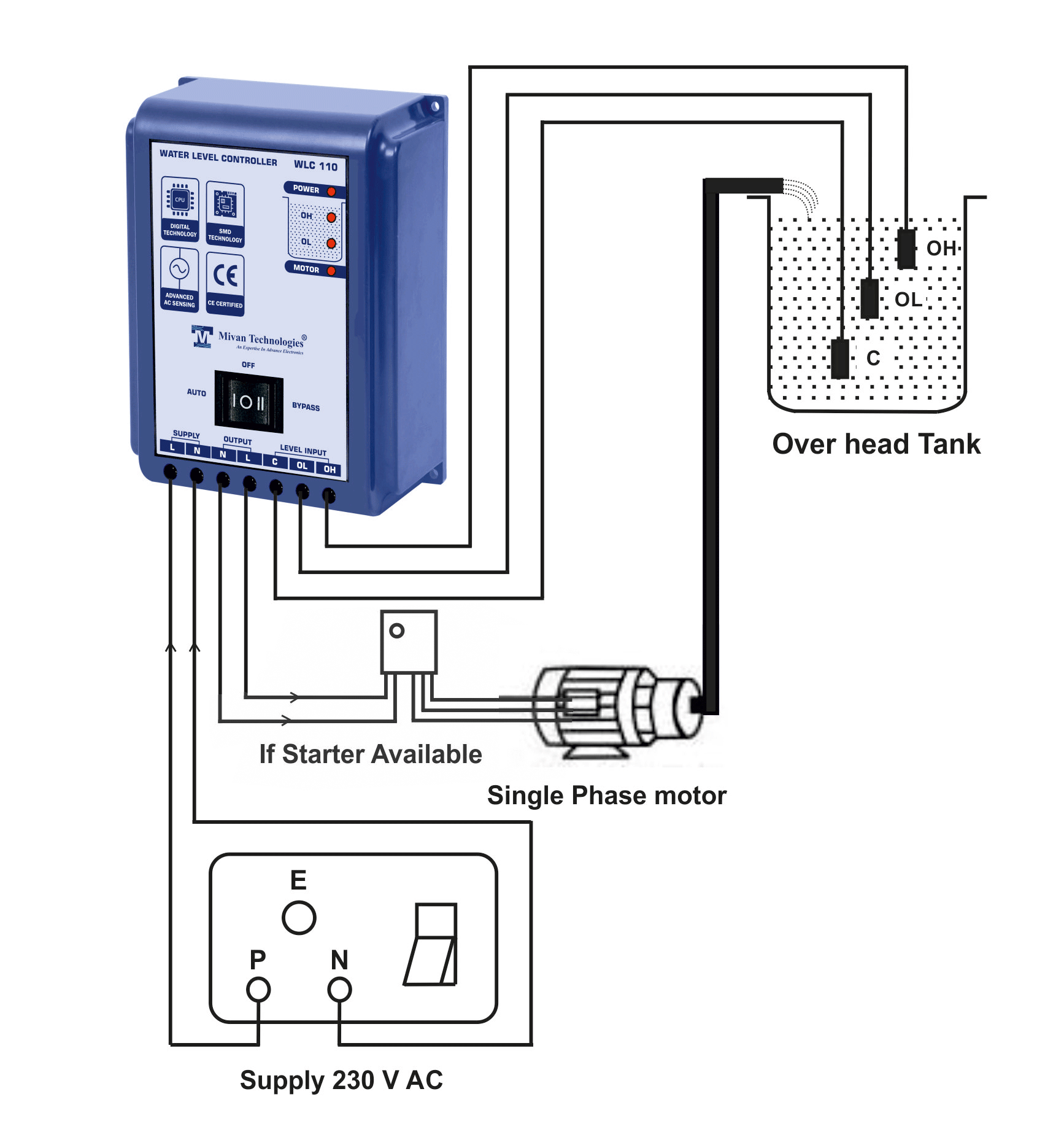

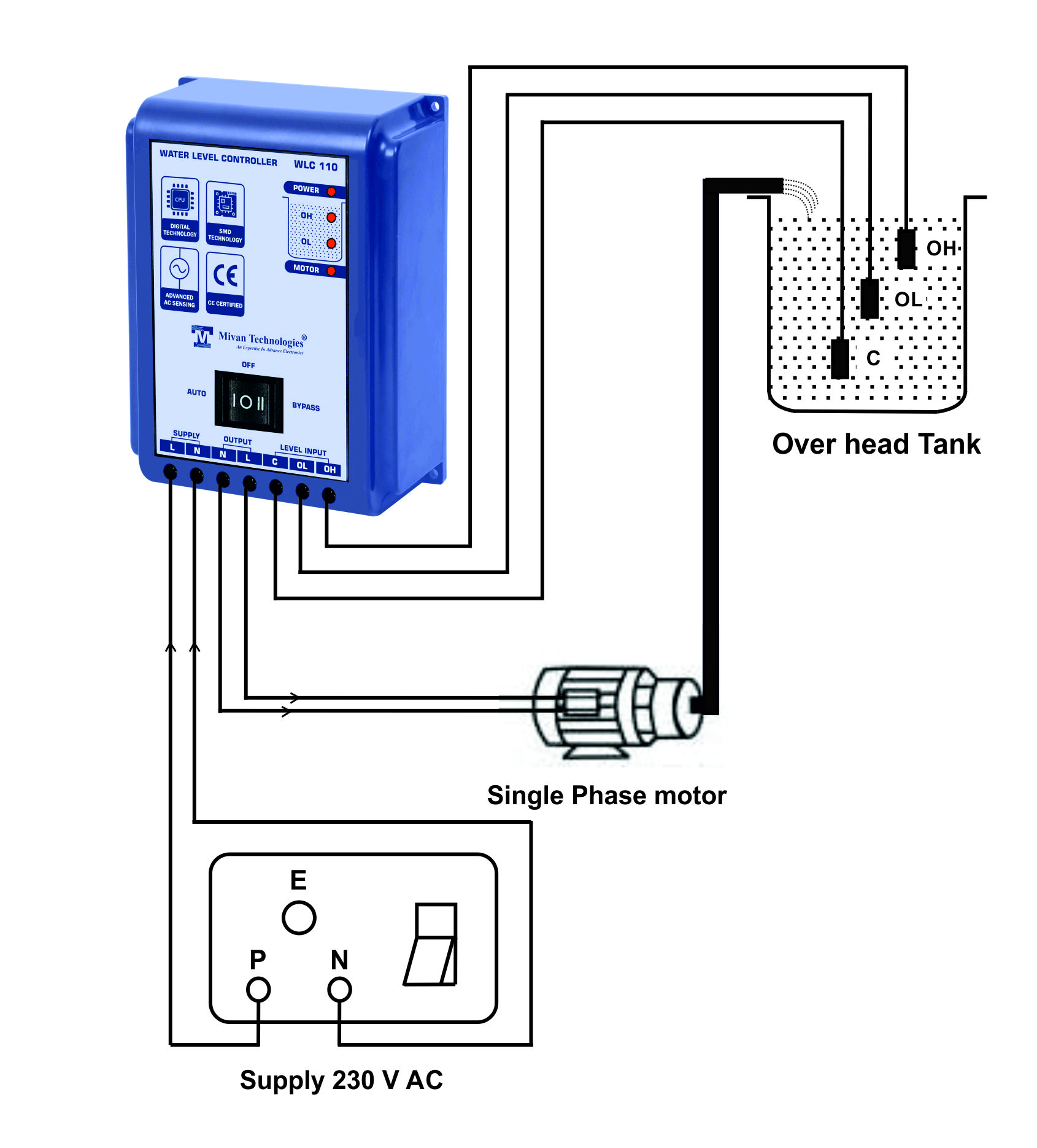

Working : As shown in the diagram out of three sensors, 1 sensor put at the bottom, 1 sensor put at middle, and 1 sensor at the top level of the tank.

When the water level in the tank becomes low, means water gets down from the middle sensor, the motor switches on automatically. The tank starts filling up. When the water level reaches to the higher level, the top level sensor senses. the motor automatically gets switched off.

Water level indication provided to see water level in tank.

Motor ON OFF indication provided.

High quality ABS Enclosure.

No man power is required as it is operated as fully automatic.

Supply voltage : 220-270 V AC,

Suitable to 0.1 HP to 2.0 HP Motor.

Relay : 15 A

Also suitable for single phase MCB starter panel & submersible motor.

Auto and manual switch available.  In auto mode, the motor starts and stops automatically. In the manual model, motor start and stop with manual switch, No additional wiring required to operate motor in manual.

Sensing Elements: Stainless steel  it is free from oxidation. Long life. Any conducting wire can be used for the sensors.

Applications : Applicable to under ground tank, overhead tank, pressure pump, tube well and deep boring. Automatic water level controllers are of much use in homes, hospitals, industries. Use of this product saves water, saves electricity and saves time. Helps in preventing overflow of water from the overhead tank. long service Life.

All signals passes in sensors through the AC filter circuit that improve life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design

Our offered controller is manufactured by our adroit professionals using quality tested components and modern technology. We kindly request buyers to communicate with us if there are any issues. We will help to solve all of your issues. Every care is taken for packing so that the item reaches the buyer safely and undamaged.
