DS SR for 2 HP Digital motor starter panel with volt and amp meter with HV LV OL DRY RUN Protection with cyclic timer

2 Run Cap 36 36 MFD 1 start cap 150/200 current based dry run protection Adjustable over load and dry run current with timer


MRP 4500
You save 2650 (58.89%)

Type: Motor Starter Panel

Sub Type: Single phase,Digital,FOR 2 HP

Weight: 4.00 KG

Manufacturer: Mivan Technologies

Tax: 18.00 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufa cturer.

Warranty Service : Repair or Replacement.


Package Contain :

1 Digital starter

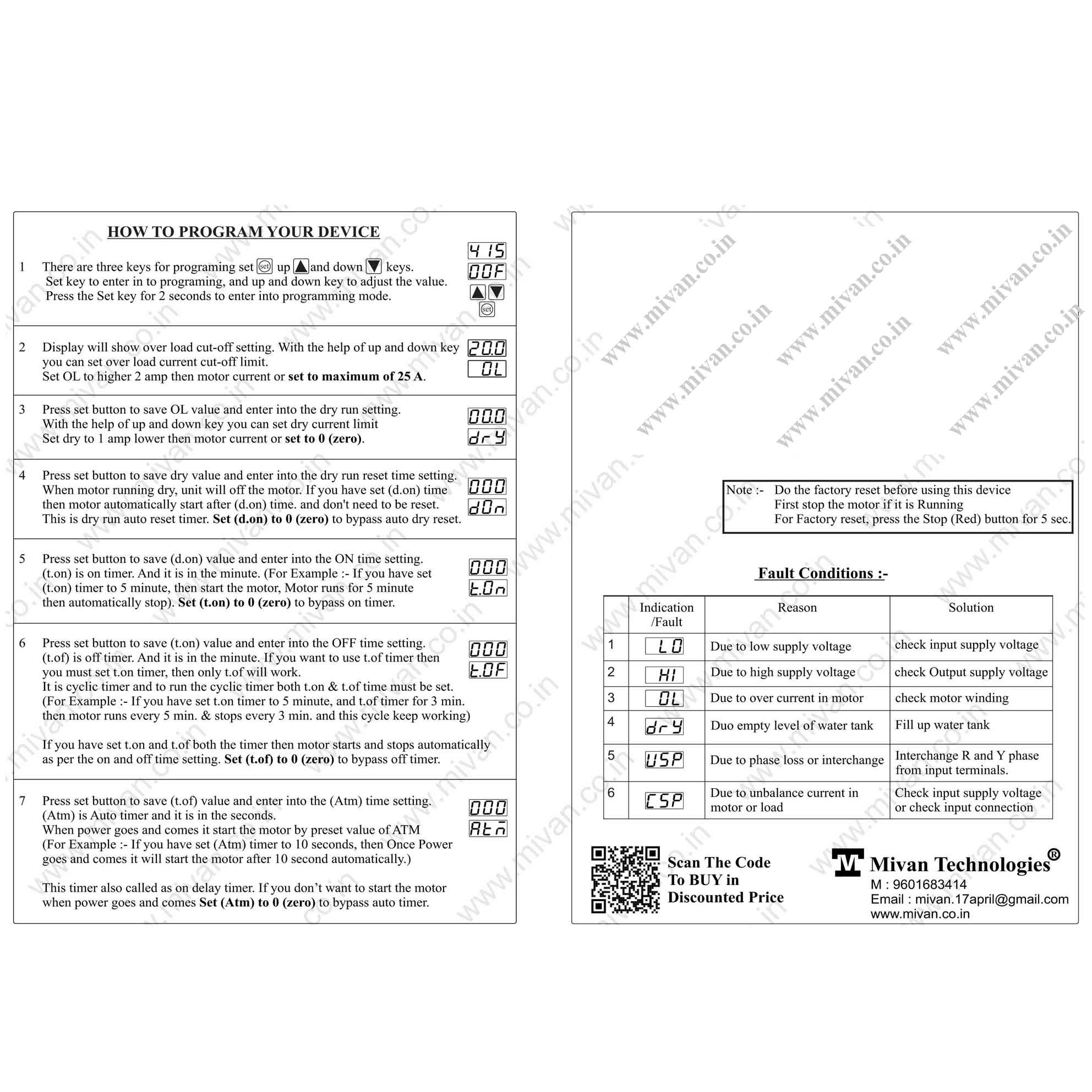

1 user manual with technical details.


Product Descriptions :

This model is suitable to 2 HP motor and submersible pump

2 Run Capacitor : 36 + 36 MFD

1 Start Capacitor : 150/200

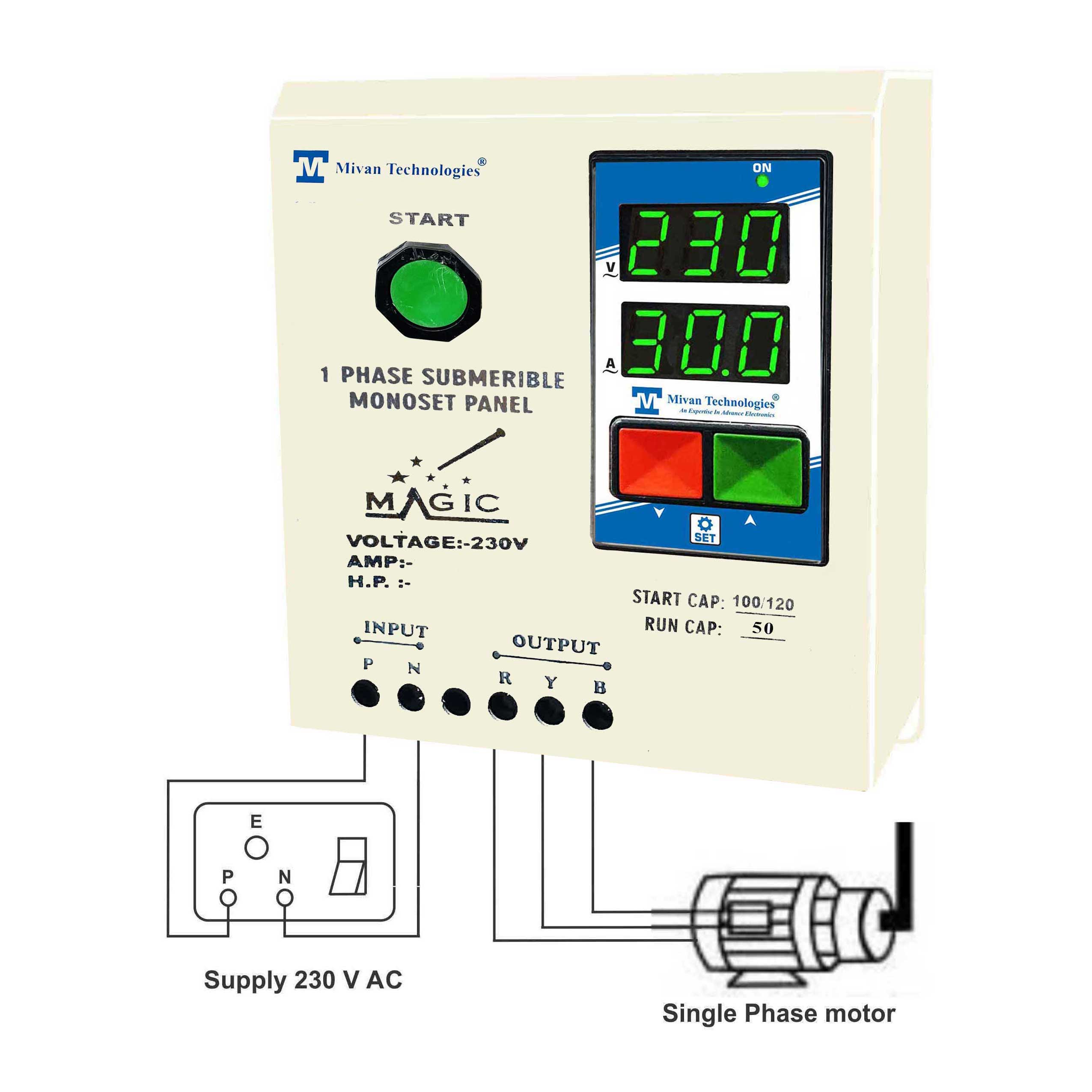

Input : P (Phase), N (Neutral) (sup 220 - 270 VAC)

Output : R, Y, B (motor or pump connections)

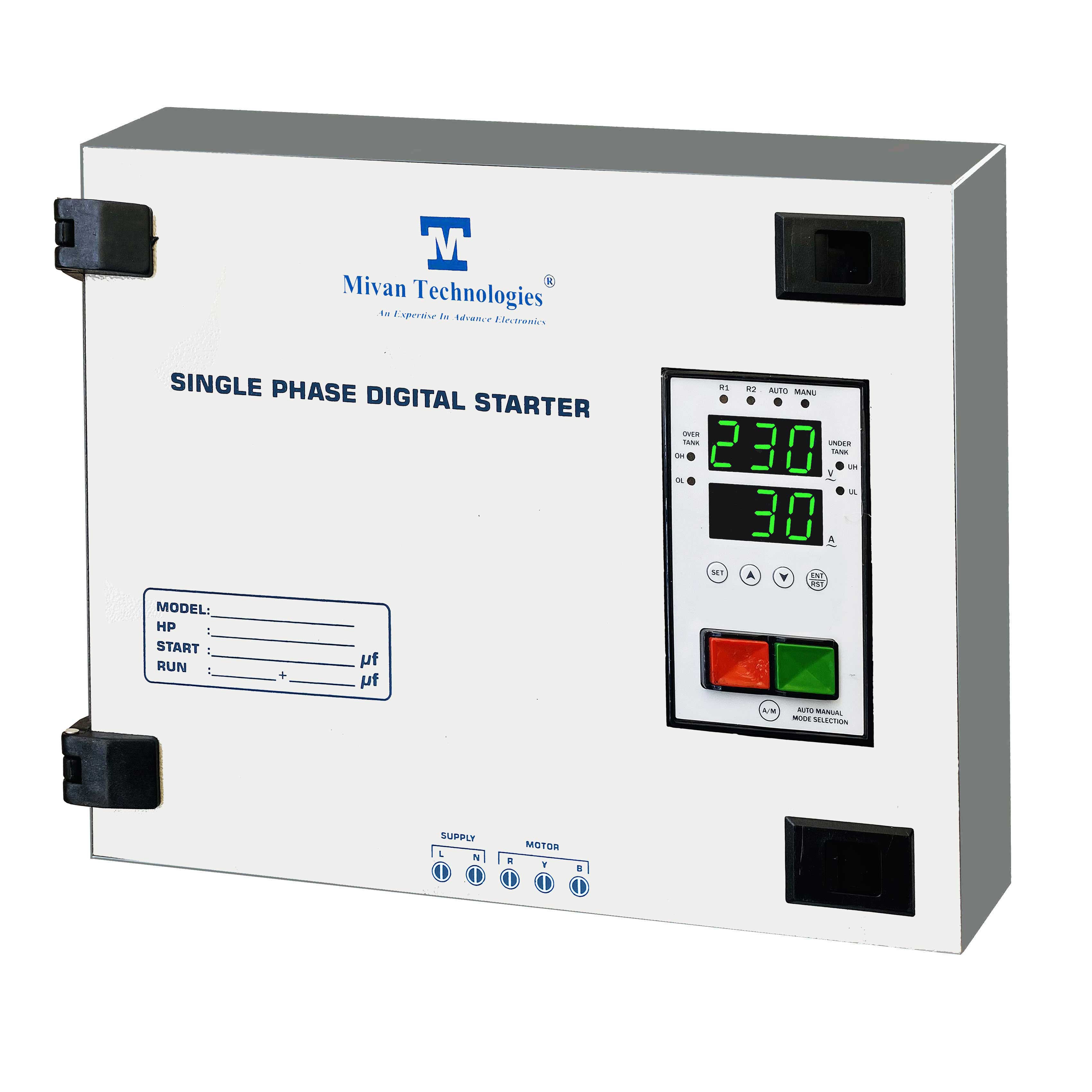

Micro controller based Digital starter panel for motor

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Over load Protection,

High & Low Voltage protection,

High volt cut off 280 VAC and low volt cut off 150 VAC

Current based dry run protection,

Adjustable overload from 1 A to 25 A

Adjustable Dry run current from 1 A to 25 A

Start and stop button provided to start and stop motor

start capacitor provided for starting torque

Cyclic timer provided with bypass facility

Delay timer provided with bypass facility

Auto OFF timer provided user can set OFF timer (for example if user want to stop motor after 30 minut then they require to set 30 in off timer so after pressing start button motor autometically get off after 30 min)

Timer can set 0 to 999 minute

Reset button provided to reset starter


Working :

This model have dry run protection so it only start motor if water present in underground tank or sump.

It has current based dry running. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop motor and protect motor from dry running.

No sensors require to detect dry running.

High quality MS. enclosure provided.
