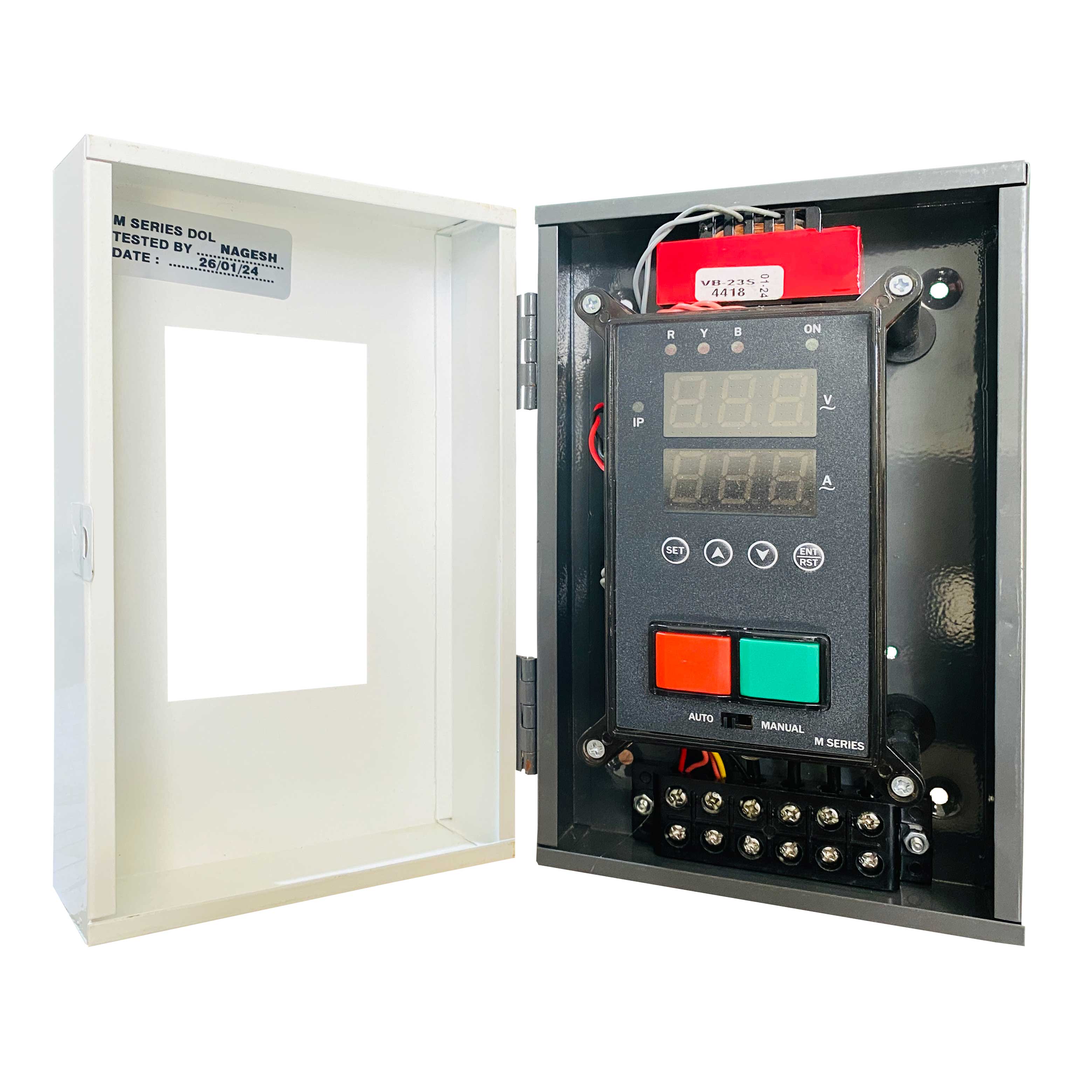

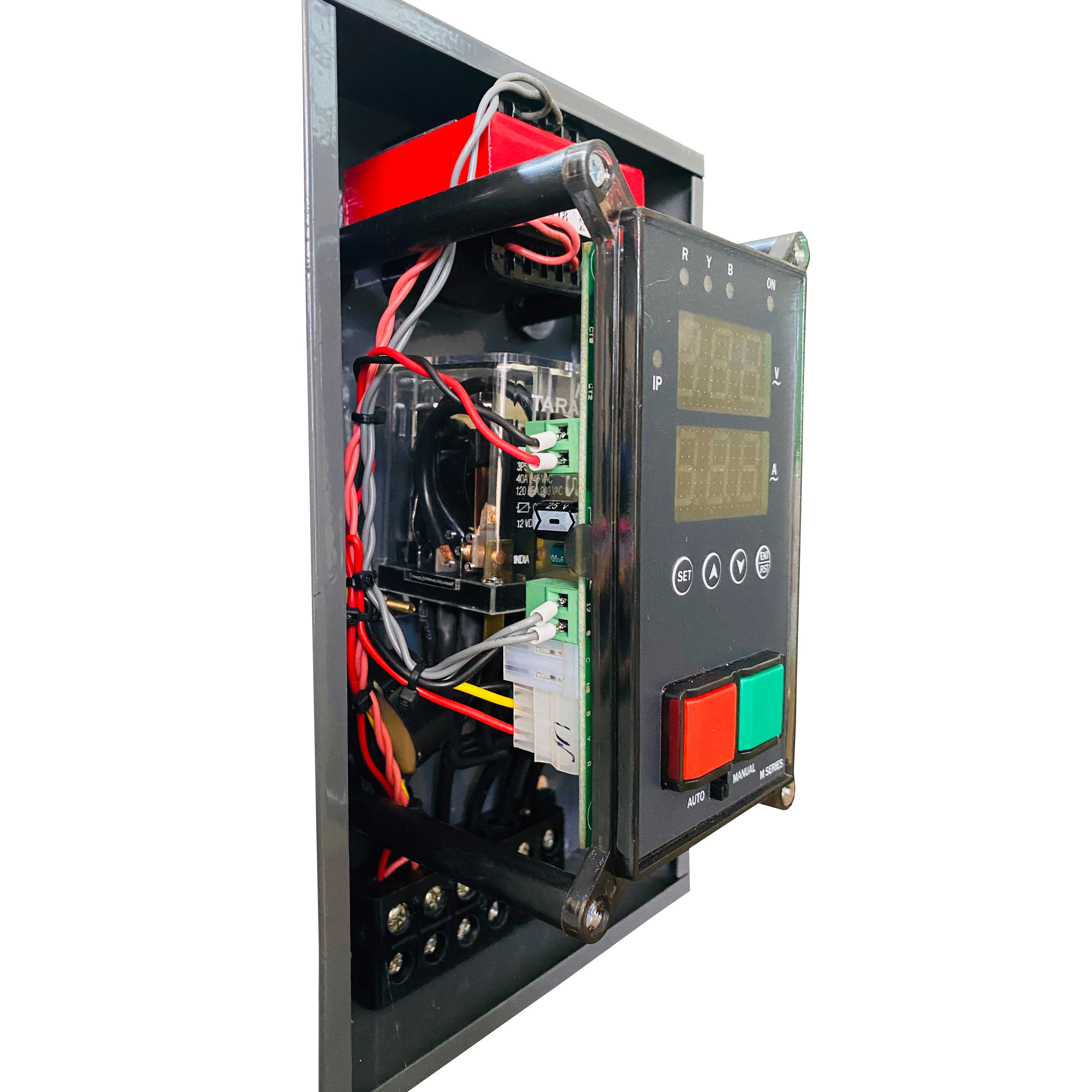

DP 301 T MS 3 phase DOL digital starter for 3 phase motor suitable up to 7.5 hp motor with all protections with auto switch and timer

Digital display for voltage and ampere high low voltage protection overload protection with spp

 2690.00

MRP 6300
You save 3610 (57.30%)


Type: Motor Starter Panel

Sub Type: Three Phase,Digital,UP TO 7.5 HP

Weight: 3.00 KG

Manufacturer: Mivan Technologies

Tax: 18.00 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.


100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.



Package Contain :

1 Digital DOL Starter.



Product Descriptions :

Digital DOL motor starter for 3 phase motor and submersible pump

It has current based dry running. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop motor and protect motor from dry running.

Timer provided to start amd stop motor according to timer.

Auto switch provided. so when light goes and come, it will automatically start the motor.

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Suitable for motor up to 7.5 HP

high voltage protection,

low voltage protection,

Short circuit protection

overload protection

Adjustable overload from 4 A to 20 A

Current based dry run protection provided

Adjustable dry run current

RESET button provided to reset unit

Start and stop button provided

high voltage indication

low voltage indication

overload indication

Power indication provided

Input Voltage : 415 VAC

Output Voltage : 415 VAC

High accuracy in over load and dry run current

high quality Metal enclosure provided.

It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding burn.

It protect motor from phase interchange. Out of 3 phase if any phase change then motor rotate reverse in this case motor winding burn

It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same

Auto and bypass mode available

In Auto mode it will automatically start motor when no fault detect and automatically turn off if any fault detect
