Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 1 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 ELR Panel

Product Descriptions :

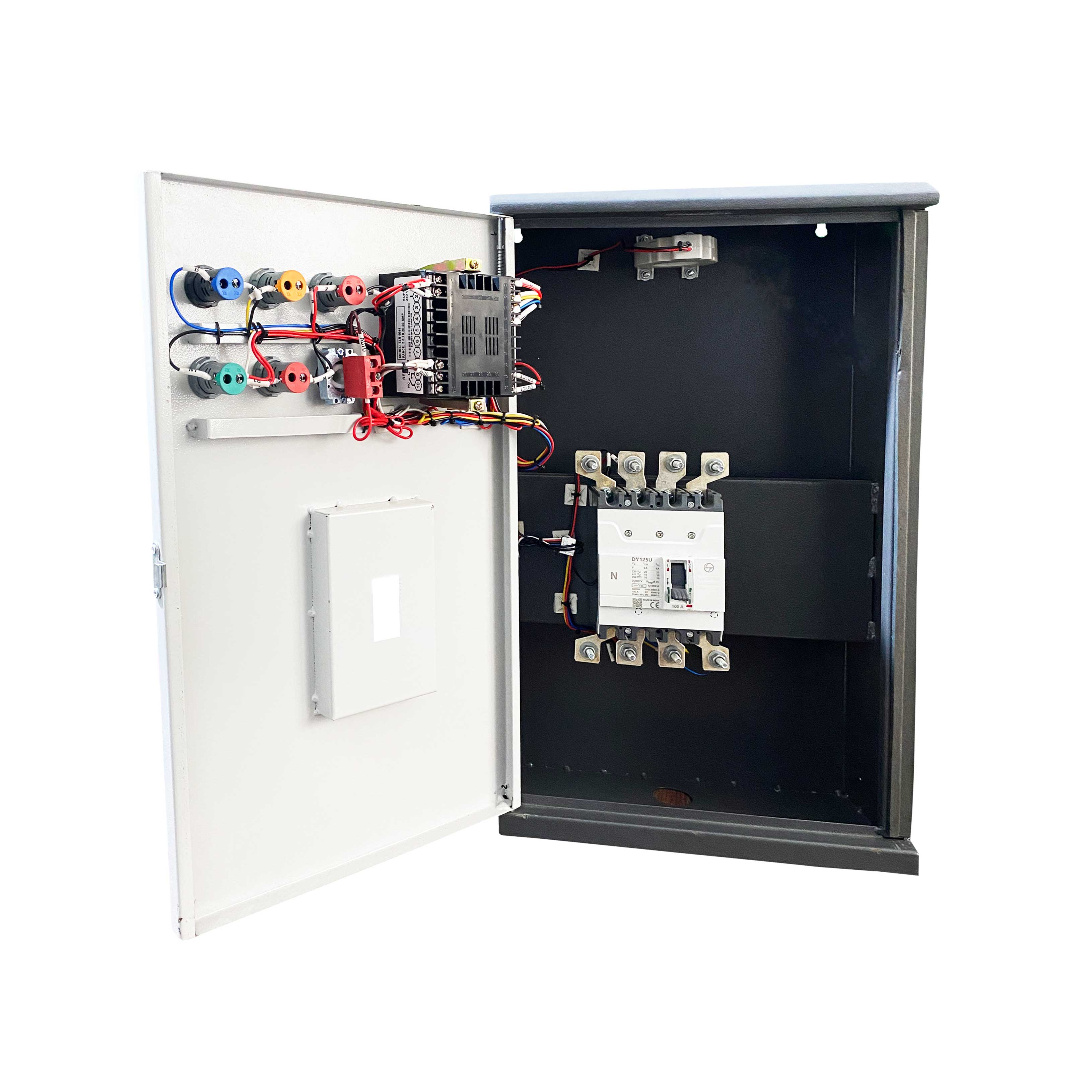

100A 4 Pole ELR panel

L and T make MCCB

Ampere Hysterisis setting provided

Auto reset time provided in second and mili second

wiring selection

SPP provided with bypass facility

Phase loss voltage difference adjustable

phase sequance protection with bypass facility

R Y B 3 phase indication provided

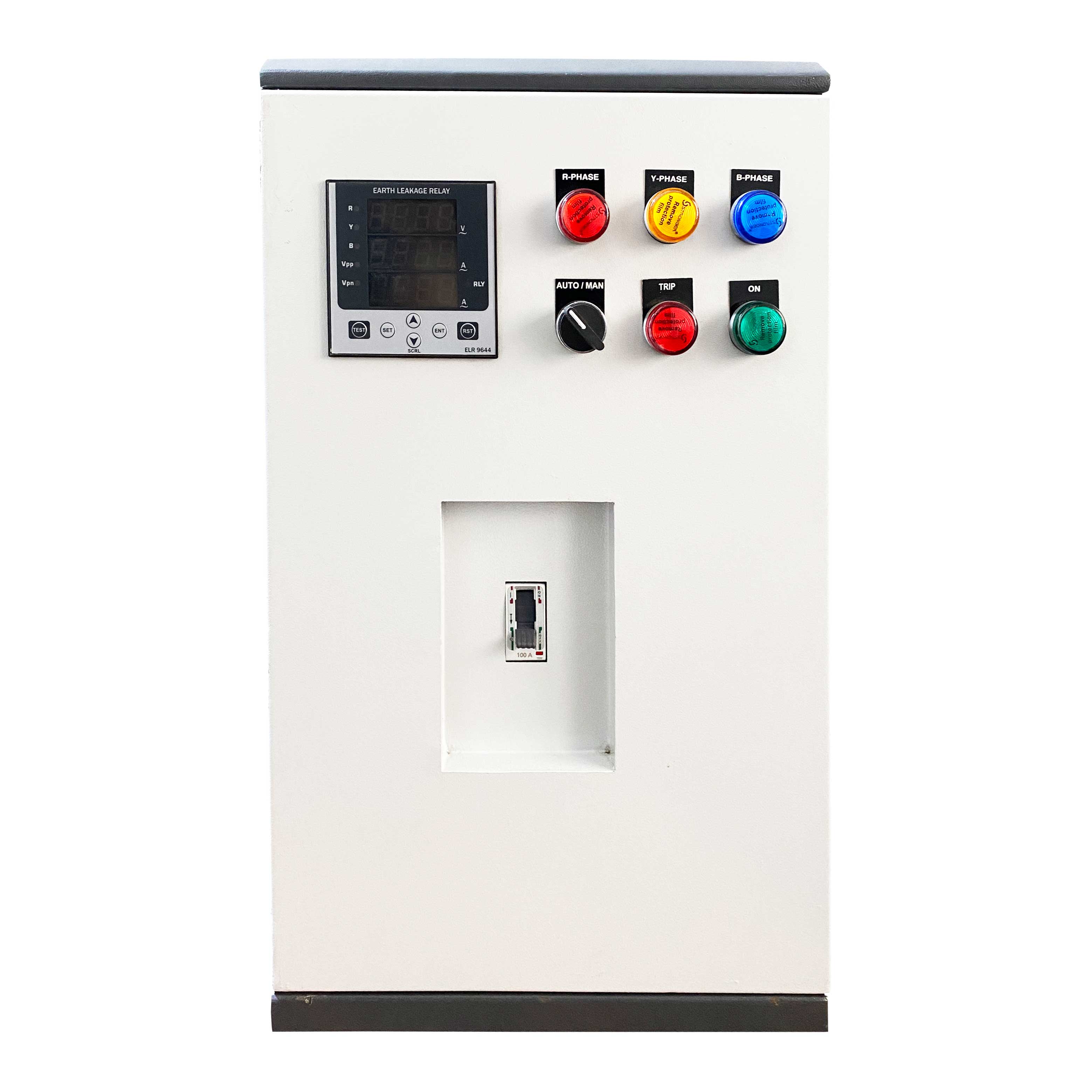

Microcontroller based Digital ELR Panel with 3 display

Adjustable leakage current with 0.1 mA accuracy

Auto start when fault resolved no need to reset

Overload protection by MCCB

Spike protection if trip due to spike reset in 7 minute.

Surge protection

This Model Will Automatically Switch off Your Main Supply during Any Overload, high & low voltage & Short Circuit Condition.

This is fully automatic, so if fault is resolved then it automatically turns on output supply.

It has electric shock Protection (in case of any person touch live wire by mistake then our ELR close main supply instantly and save their life)

High & Low Voltage Protections with adjustable facility

Protection against short circuits.

shock protection.

Test button provided to test ELR Panel. When you press test button ELCB trip immediately. Reset button provided to Reset ELCB.

High quality ISI Marked L & T make MCCB provided.

trip indication,

Power indication,

Leakage current indication provided

Earth protection provided

working and bypass indication provided

Emergency bypass indication provided.

Auto and Bypass switch available. If you put it in auto mode then ELR automatically turns on if fault is resolved. (for ex if elcb trip due to high/low voltage, then elcb trip immediately but when voltage resolved, it will automatically turn on and give supply at output )

Bypass mode is provided to operate ELR in bypass model

Overloading protection given by MCCB so if it trip due to overloading then it will not start automatic but user need to switch on MCCB
