DP 301 LLC HD 3 phase water level controller with DOL DIGITAL starter suitable for motor up to 10 HP with HV LV OL DRY protection with SPP, AUTOSWITCH, TIMER

current based dry run protection Adjustable overload and dry run current, Adjustable timer

 2820

MRP 9950
You save 7130 (71.66%)


Type: Heavy Duty series 2 years warranty

Sub Type: Water Controller 3 Phase

Weight: 1.5 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.


100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 2 Year Manufacturer.

Warranty Service : Repair or Replacement.



Package Contain :

1 Digital Starter with water level controller

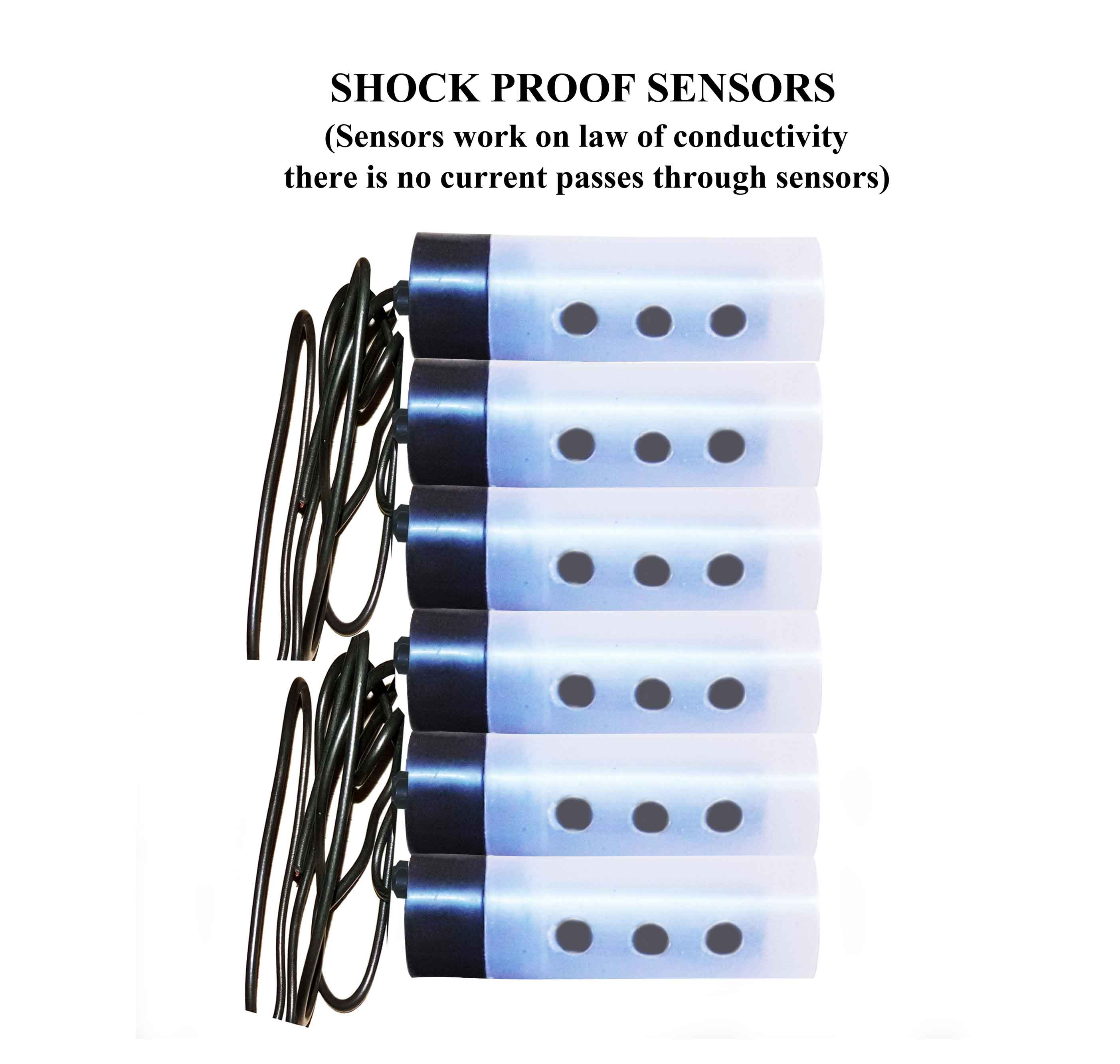

6 S.S sensors with 1.5 meter wire

1 user manual

1 Warranty card of 2 years warranty

4 Screw and Hole plugs

1 Drill template



Product Descriptions :

This model is the combination of a digital water level controller and 3 phase DOL motor control panel (motor starter).

INBUILT AUTO SWITCH AND SPP

Micro controller based Digital Water Level Controller.

Digital Volt and ampere meter are provided to see system voltage and load current accordingly.

Two seperate display for volt and amp.

Over load Protection,

Adjustable overload from 0 to 30 A



High & Low Voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)

Short circuit protection



Current based dry run protection,

It has current based dry run protection. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop the motor and protect motor from dry running.

Adjustable dry run current from 0 to 30 A

Dry run Auto Reset timer provided with with bypass facility



Cyclic timer provided with bypass facility (adjusatble from 0 second to 999 min)

Delay timer provided with bypass facility (adjusatble from 0 second to 999 min)

On delay timer and off delay time provided (adjusatble from 0 second to 999 min)



Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)

Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable



protection bypass facility

High accuracy in over load and dry run current

Motor on indication provided

voltage and amp indication provided

Auto byapass indication provided

Water level controller and water level indication for overhead and underground tank.

Suitable for motor up to 10 HP

User can bypass the protection.

Error messages shows on display

RESET button provided to reset unit

High quality ABS. enclosure provided.

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.



SPP provided

It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding gets burn.

It protect motor from phase interchange. Out of 3 phase if any phase changed, then motor rotate reverse in this case motor winding gets burn

It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same



Working :

High quality ABS Enclosure.

This model automatically switch ON and switch OFF Motor.

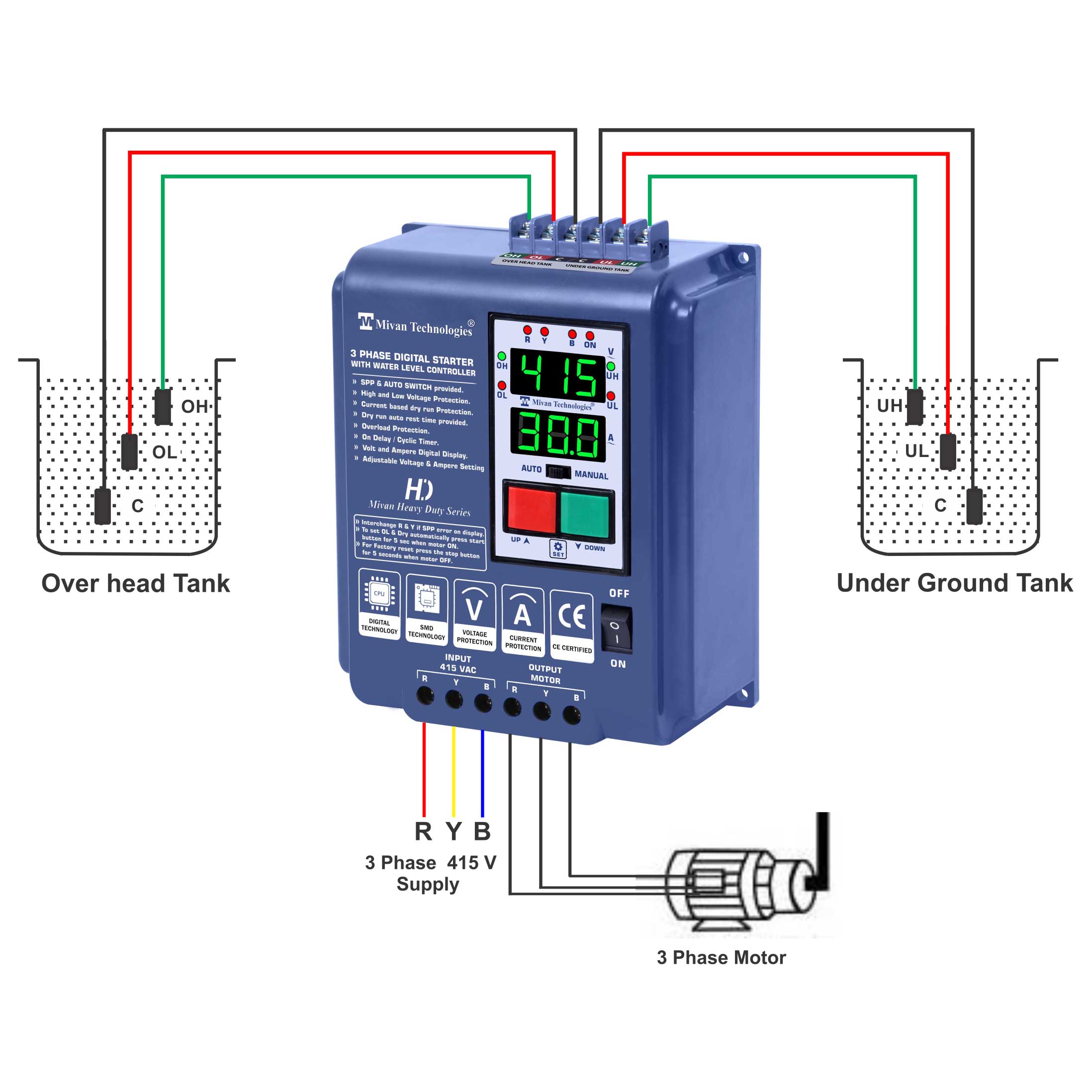

When water level of overhead tank becomes low means water gets down from middle sensor and water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.

AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.

This model have dry run protection so it only start the motor if water present in underground tank or sump.

Suitable for 0.1 HP to 10 HP Motor, Protect motor from dry running.

Motor ON OFF LED indication provided.

Water Level indication provided for both tank.

Sensing element : 304 S.S sensors it is free from oxidation, long life. Any conducting wire can be use for sensor.

Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. No additional wiring require to operate motor manually.

Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.

Input Voltage : 415 VAC

Output Voltage : 415 VAC

High accuracy in over load and dry run current



All signals passes in sensors through the AC filter circuit that improve life of sensor,

Isolated supply provided

Sensor fault detection provided, if sensor got failed LED start blinking

Electrolysis free design
