STS TIMER HD 3 phase DOL electronic starter for 3 phase motor suitable up to 10 hp motor with HV LV OL PROTECTIONS with SPP and Auto switch timer

Adjustable Overload and Auto Switch Timer, high low voltage protection


MRP 5200
You save 3100 (59.62%)

Type: Heavy Duty series 2 years warranty

Sub Type: Motor Starter 3 Phase

Weight: 1.5 KG

Manufacturer: Mivan Technologies

Tax: 18 %

In Stock

Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.

100% Secure Payments, 7 Days Easy Return Policy.

Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 2 Year Manufacturer.

Warranty Service : Repair or Replacement.


Package Contain :

1 Electronic DOL Starter.

1 user manual with technical details.

1 Warranty card of 2 years warranty

4 Screw and Hole plugs

1 Drill template


Product Descriptions :

Electronic motor starter for 3 phase motor and submersible pump

Suitable for motor up to 10 HP

Auto Bypass Switch provided. (In Auto mode motor automatically start when power goes and comes as per the preset time)


Relay rating : 40 A 3 pole

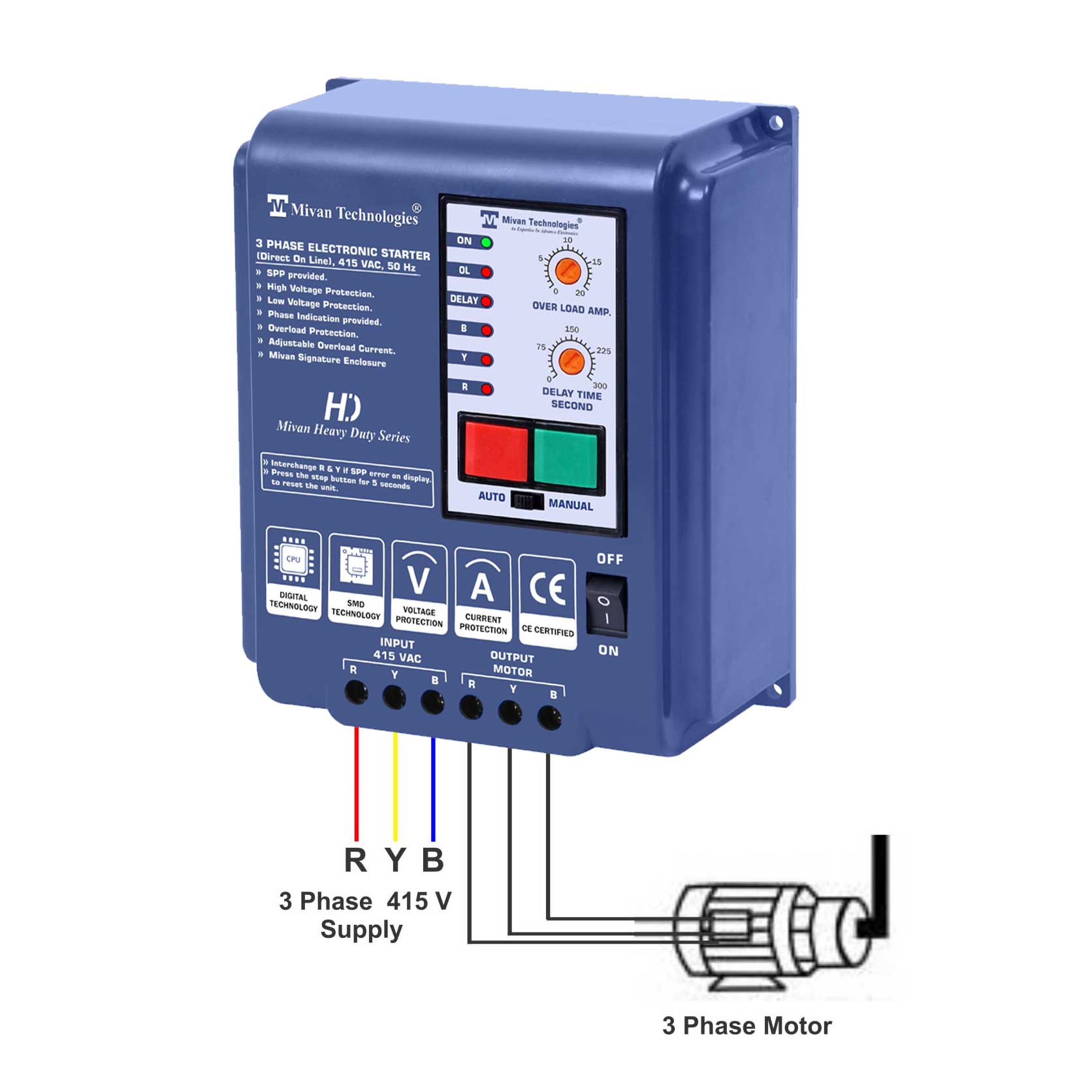

Input : R (Phase), Y (Phase), B (Phase) (Supply - 415 VAC)

Output : R (Phase), Y (Phase), B (Phase) (motor or pump connections)


Auto Switch Provided

Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable

Auto Bypass Switch provided. (In Auto mode motor automatically start when power goes and comes and in manual mode motor start by pressing start and stop button)


SPP provided

It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding gets burn.

It protect motor from phase interchange. Out of 3 phase if any phase changed, then motor rotate reverse in this case motor winding gets burn

It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same


Micro controller based design


high voltage protection,

low voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)


overload protection

Adjustable overload from 0 to 30 A


Short circuit protection

protection bypass facility


On delay timer and off delay time provided (adjusatble from 0 second to 999 min) If user want to start the motor after certian time then they can use this timer.

Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically)

Auto switch timer adjusatble from 0 second to 999 second


Input Voltage : 415 VAC

Output Voltage : 415 VAC

High accuracy in over load and dry run current

Auto and bypass mode available

User can bypass all the protection from setting

Isolated supply provided

Error messages shows on display

RESET button provided to reset unit

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

High quality ABS Enclosure.
