High quality Metal body with dry run protection water level indication provided890.00 Buy Now
You save 2410 (73.03%)
Type: Water Level Controller
Sub Type: Single phase
Weight: 1.35 KG
Manufacturer: Mivan Technologies
Tax: 18.00 %
Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.
100% Secure Payments, 7 Days Easy Return Policy.
Item Specifications :
Condition : A brand new unused, undamaged item that is fully operational and functions as intended.
Warranty : 1 Year Manufacturer.
Warranty Service : Repair or Replacement.
Package Contain :
1 Water Level Controller Unit.

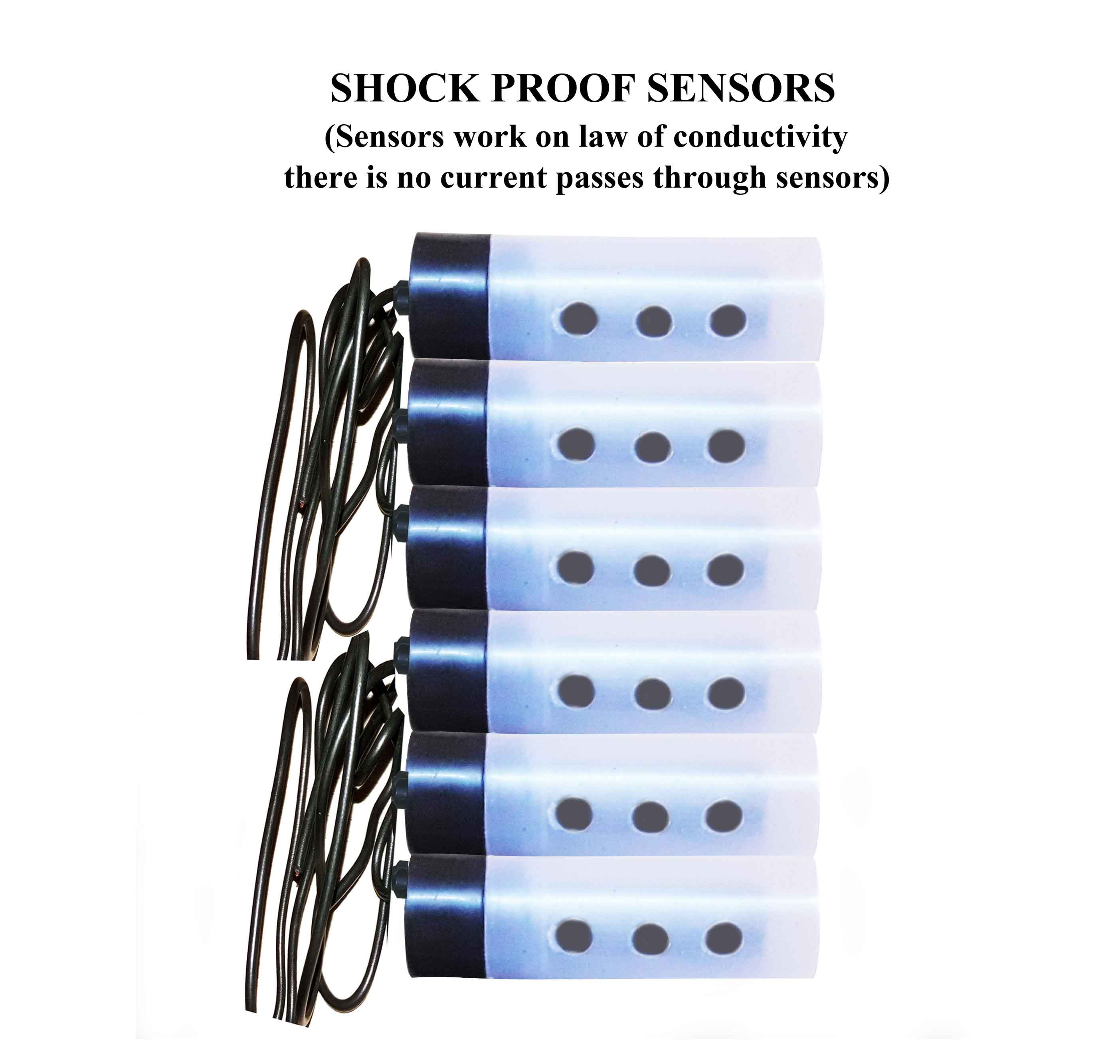

6 S S Sensors.
1 user manual with technical details.
Product Descriptions :
High quality M.S. Enclosure.
Working : This model automatically switches ON and OFF the motor.
When the water level of the overhead tank becomes low means water gets down from the middle sensor and water is present in the underground tank or sump, the motor gets started automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.
AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.
This model has dry run protection so it only starts the motor if water is present in the underground tank or sump.
Suitable for 0.1 HP to 5.0 HP Motor, Protect motor from dry running.
Motor ON OFF LED indication provided.
Water Level indication provided for both tanks.
Supply voltage : 220-270 V AC,
Relay : 40 A
Sensing element : S.S sensor, it is free from oxidation, long life. Any conducting wire can be used as a sensor.
All signals passes in sensors through the AC filter circuit that improves the life of sensor,
Auto and Manual mode switch available. In auto mode the motor starts and stops automatically. In manual mode the user can start and stop the motor by pressing the start and stop button of the controller. No additional wiring is required to operate the motor manually.

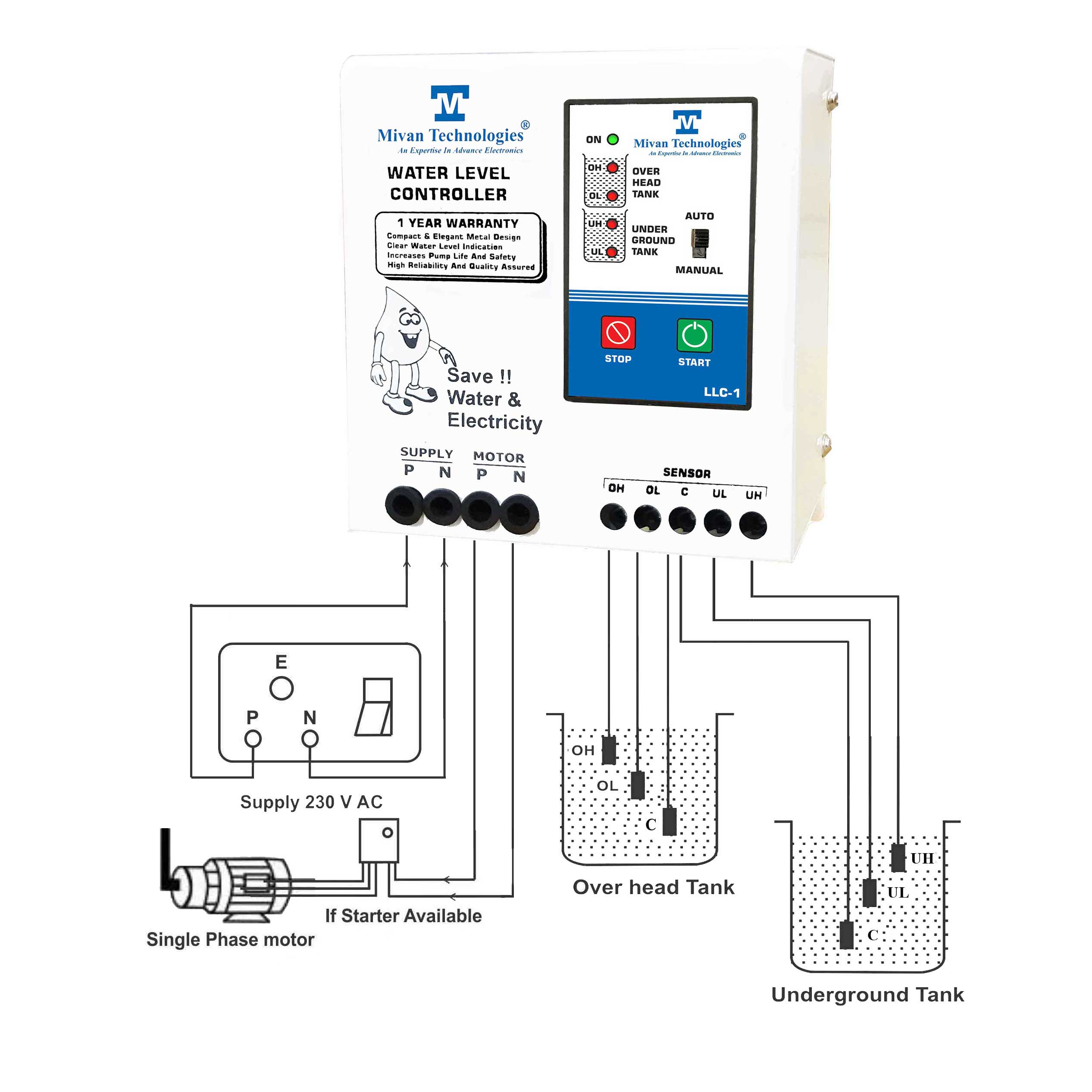

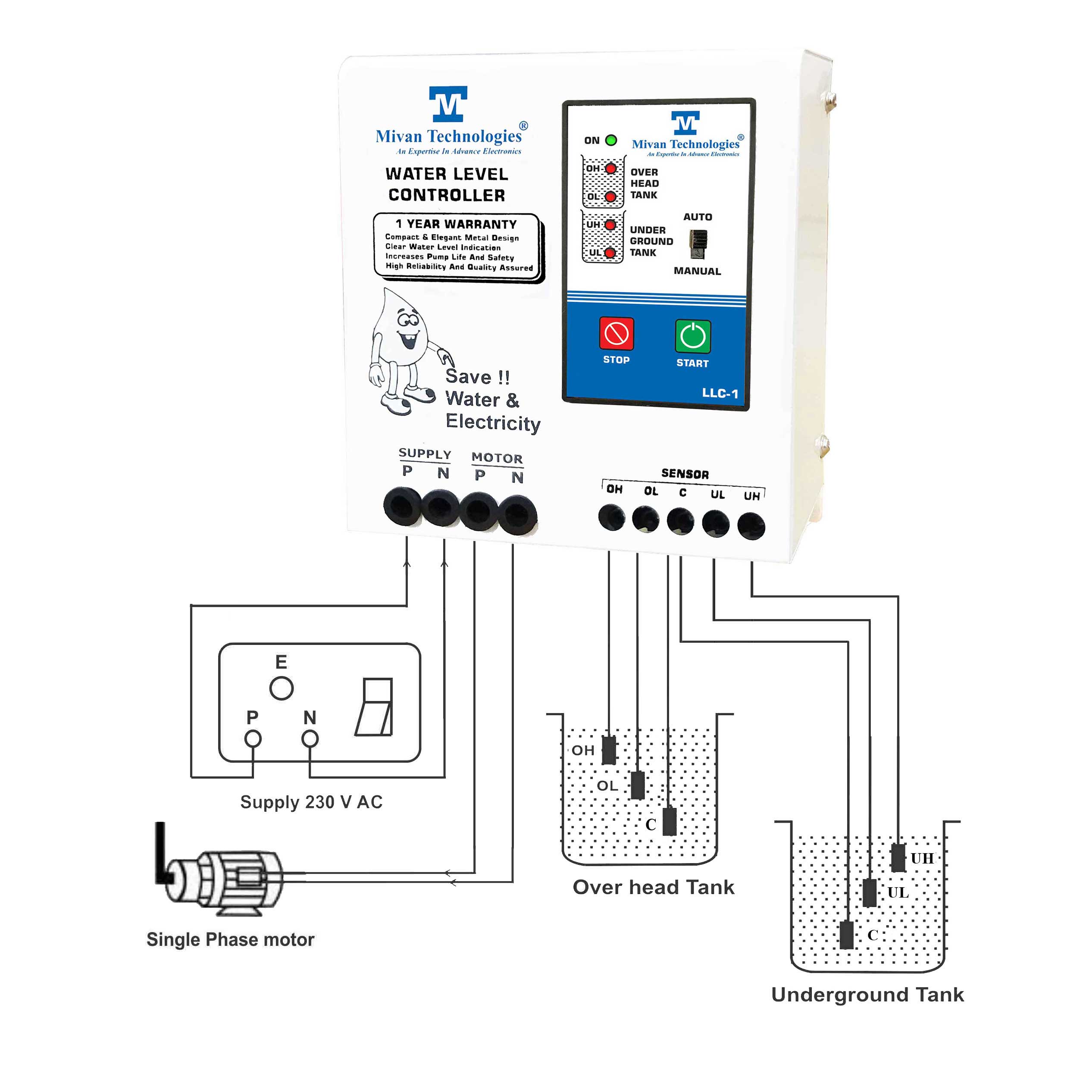

Also Suitable for MCB Starter panel and submersible motor, see diagram above for connection.
It can also be use as semi automatic, Put unit in auto mode press start button motor will start and when the tank full it will stop the motor
High quality M.S. enclosure provided.
Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.
Isolated supply provided
Sensor fault detection provided, if sensor got failed LED start blinking
Electrolysis free design
