Run Cap 50 MFD current based dry run protection settable over load and settable dry run current1999.00 Buy Now
You save 3801 (65.53%)
Type: Water Level Controller
Sub Type: Single phase
Weight: 1.50 KG
Manufacturer: Mivan Technologies
Tax: 18.00 %
Delivery in 2-4 days in major cities and 3-7 days in remote area.
Worldwide delivery available.
100% Secure Payments, 7 Days Easy Return Policy.
Item Specifications :
Condition : A brand new unused, undamaged item that is fully operational and functions as intended.
Warranty : 1 Year Manufacturer.
Warranty Service : Repair or Replacement.
Package Contain :
1 Water Level Controller Unit.
6 Carbon Sensors.
1 pack, mounting screw.
1 user manual with technical details.
Product Descriptions :

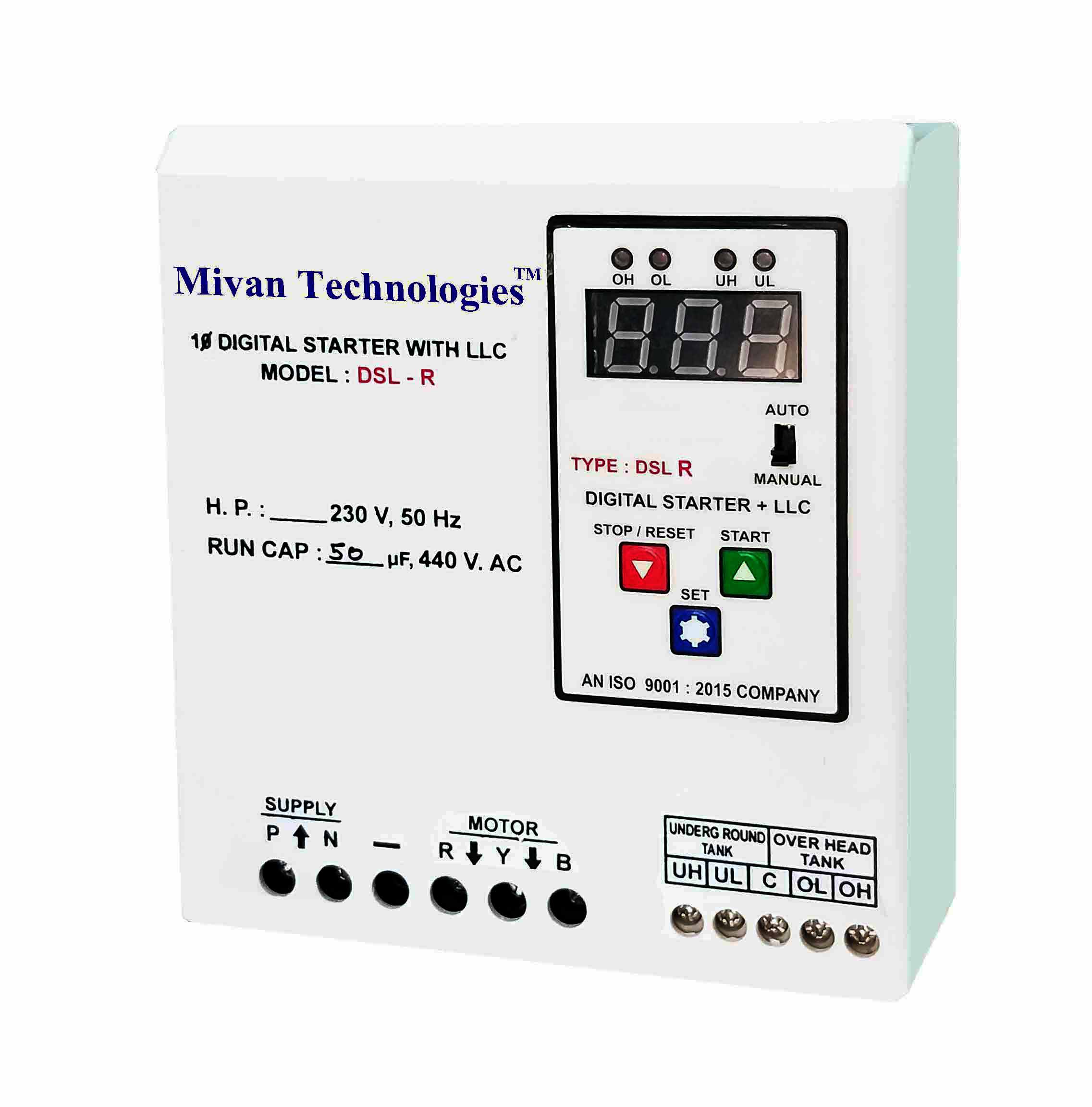

DSL R is the combination of digital water level controller and motor control panel (motor starter).
This model is suitable for motor up to 1.5 HP
Run Cap : 50 MFD
Input : P (Phase), N (Neutral) (sup 220-270 VAC)
Output : R, Y, B (motor or pump connections)
Micro controller based Digital Water Level Controller.
Digital display for voltage and amp
Over load Protection,
High & Low Voltage protection,
Current based dry run protection,
Water level indications for both tank.

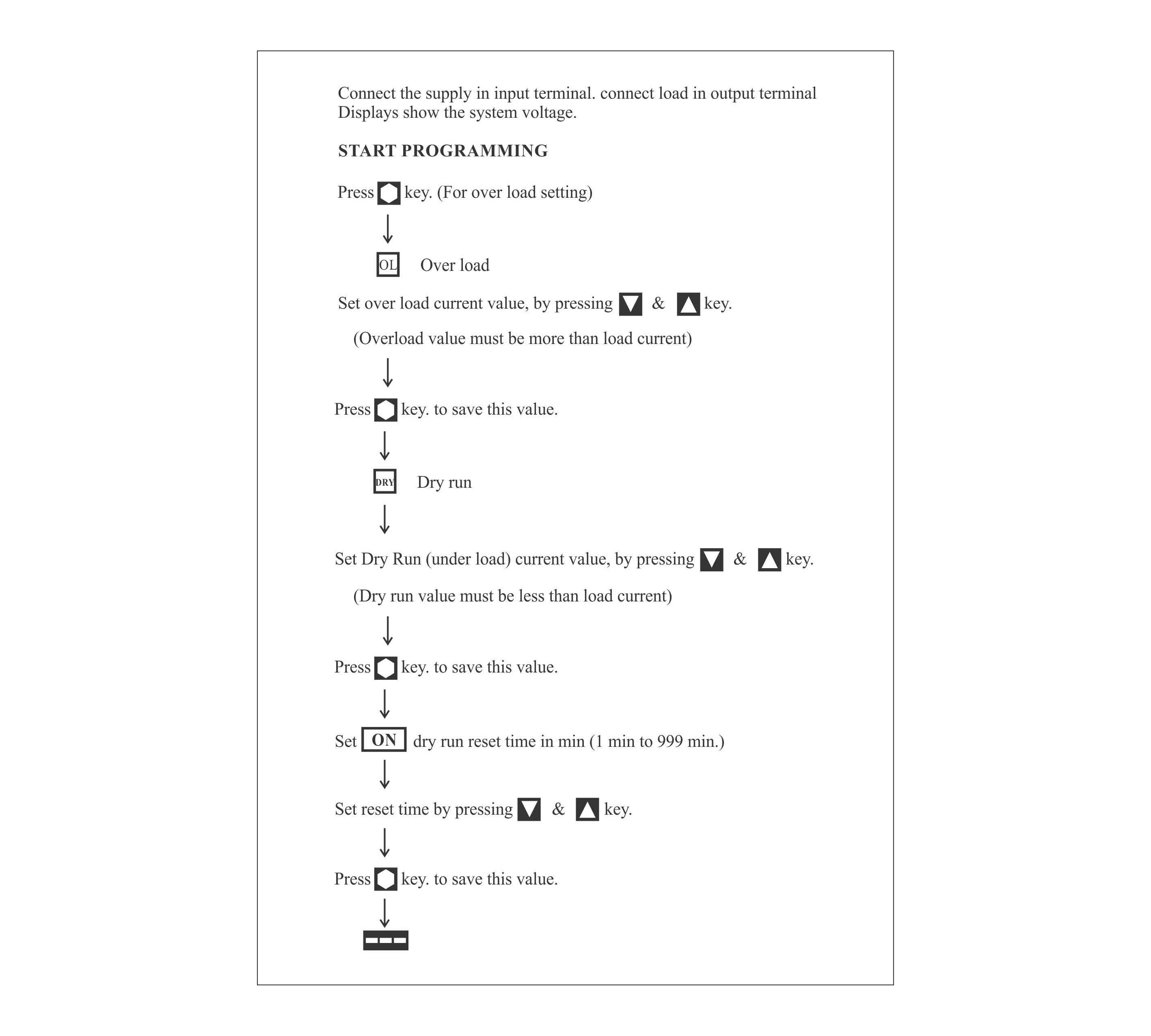

Adjustable Dry run current.

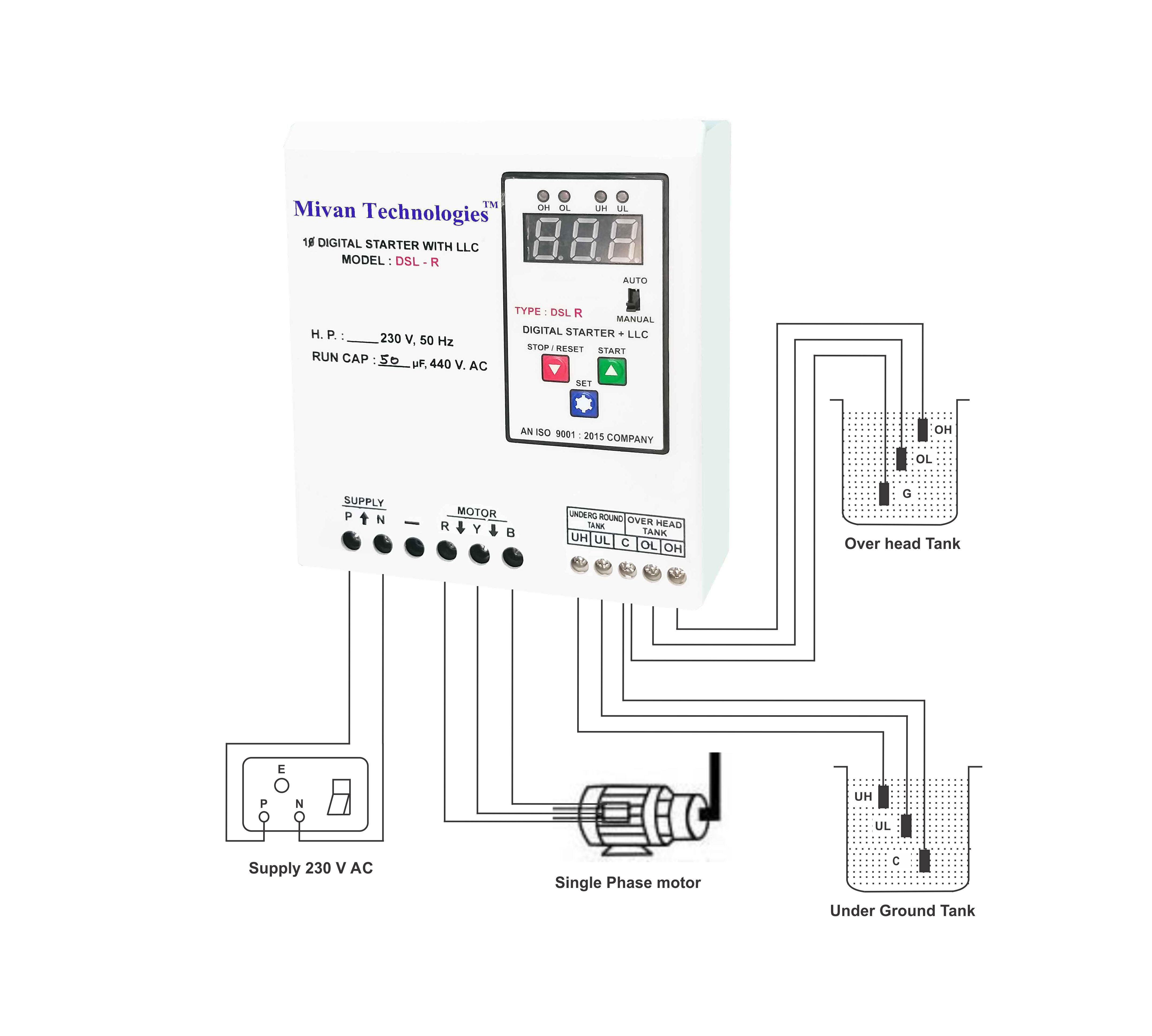

Water level controller and water level indication for overhead and underground tank.
Suitable for motor up to 1.5 HP
This model automatically switch ON and switch OFF Motor.
When water level of overhead tank becomes low means water get down from middle sensor and if water is present in the underground tank or sump, motor get start automatically. The tank starts filling up. when the water level reaches to the higher level, the motor automatically gets switched off.
AUTO OFF WHEN TANK IS FULL OR SUMP IS EMPTY.
This model have dry run protection so it only start motor if water present in underground tank or sump.
It has current based dry running. If motor runs without water then it take lower ampere (current) then actual current. so when motor current down from actual current, it stop motor and protect motor from dry running.
Suitable for 0.1 HP to 1.5 HP Motor, Protect motor from dry running.
Motor ON OFF LED indication provided.
Water Level indication provided for both tank.
Supply voltage : 220-270 V AC,

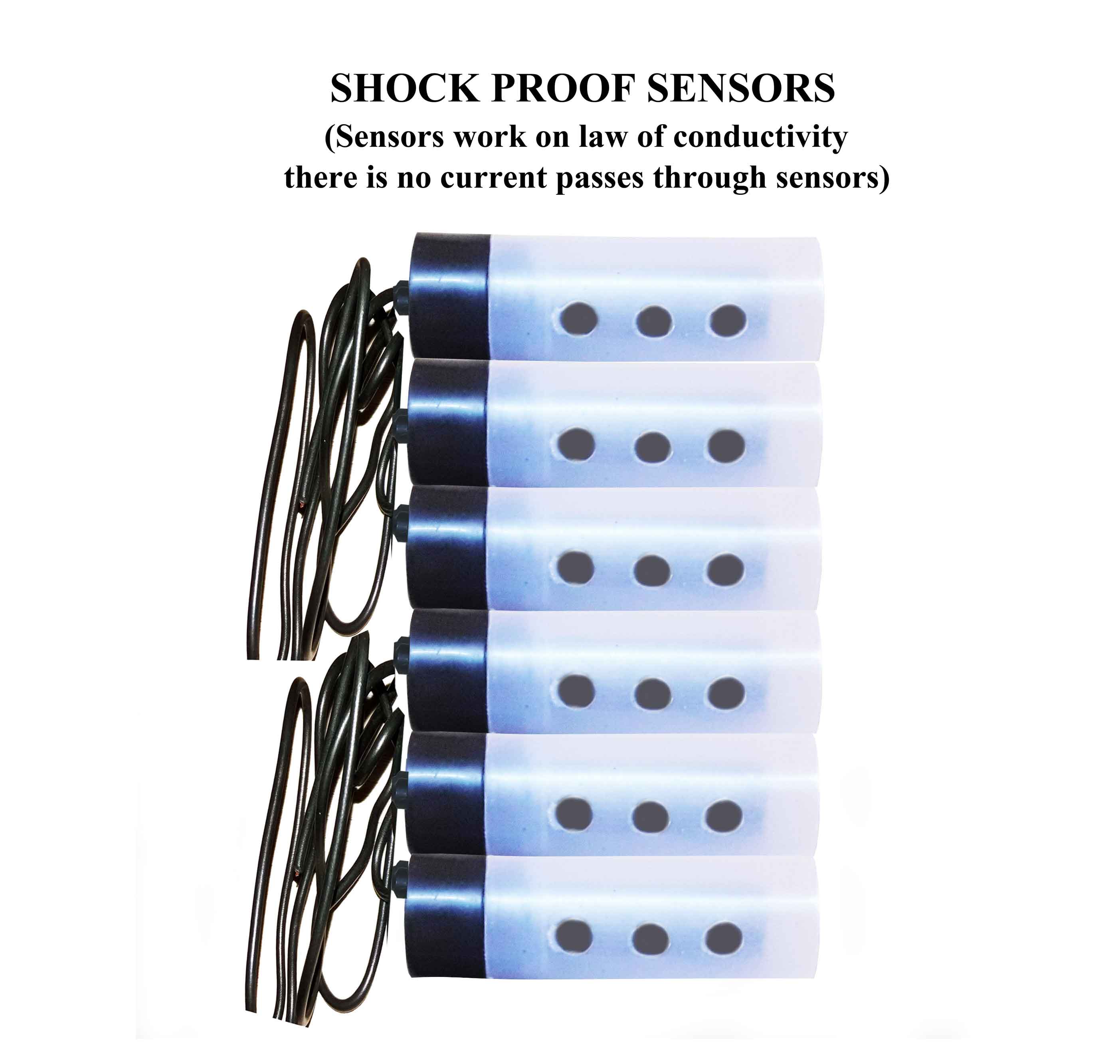

Sensing element : carbon sensor, it is free from oxidation, long life. Any conducting wire can be use for sensor.
Auto and Manual mode switch available. In auto mode motor start and stop automatically. In manual mode user can start and stop motor by pressing start and stop button of controller. No additional wiring require to operate motor manually.
High quality ABS. enclosure provided.
Fully automatic, controls from underground tank to overhead tank so no man power required. Long service Life.
Our offered controller is manufactured by our adroit professionals using quality tested components and modern technology. we kindly request buyers to communicate with us if there are any issue. we will help to solve all of your issue. Every care is taken for packing so that the item reaches to the buyer safely and undamaged.
